7. If available, replace the PCI slot shield by pressing the slot shield into the opening on
the chassis.

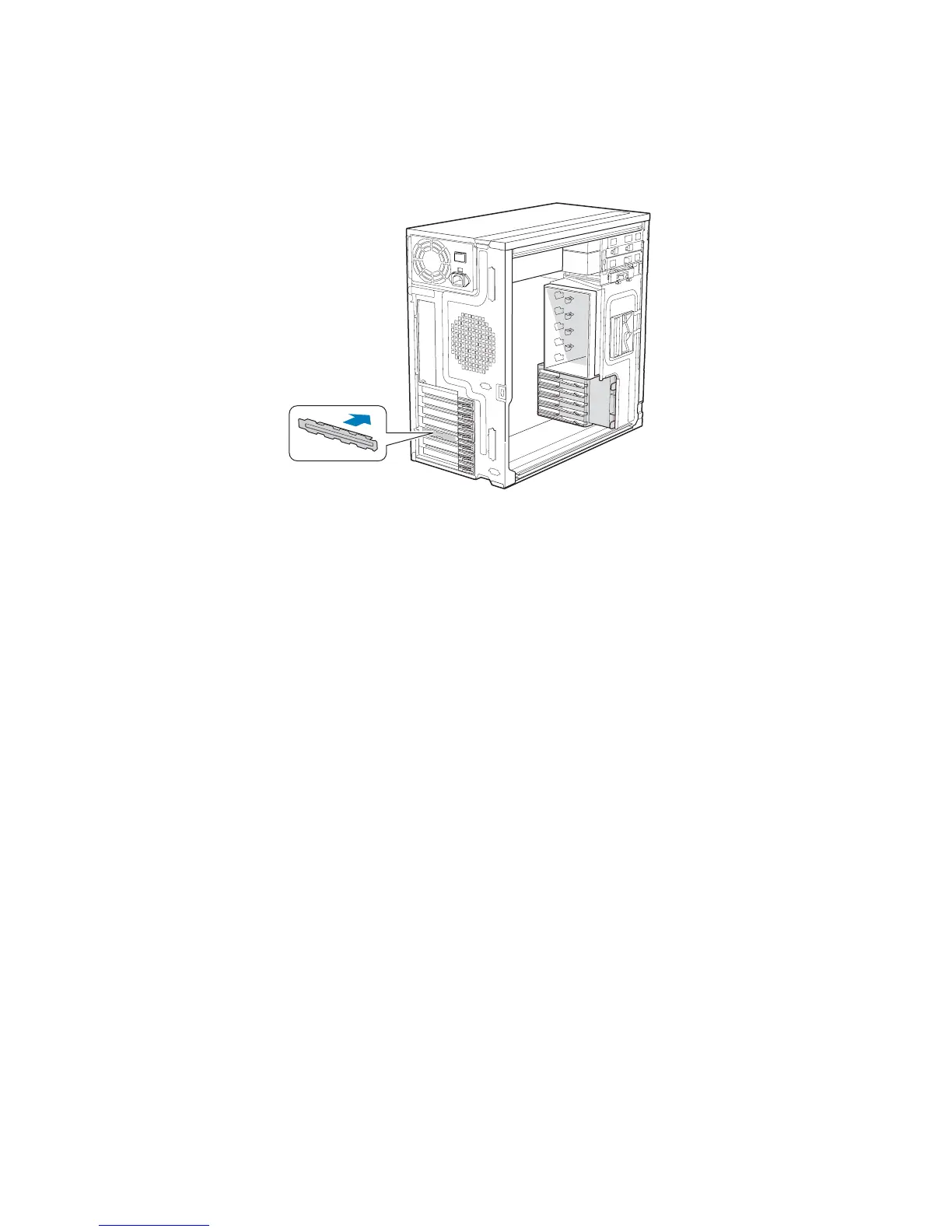

Figure 44. Replacing PCI Slot Shield
8. Reinstall the left side cover. For instructions, see “Installing the Left Side Cover”.
9. Reconnect all peripheral devices and the AC power cable(s). Power up the server.
Replacing the Front Panel Board
Your server must be operated with a front panel board installed.
Caution: The front panel board is NOT hot swappable. Before removing or replacing the front
panel board, you must first take the server out of service, turn off all peripheral devices
connected to the system, turn off the system by pressing the power button, and unplug the
AC power cord from the system or wall outlet.
1. Observe the safety and ESD precautions listed in Appendix A, “Safety Information”.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the left side cover. For instructions, see “Removing the Left Side Cover”
4. Remove the front bezel assembly if it is installed. For instructions, see “Removing the
Front Bezel Assembly”.
TP01726
