Hardware Installations and Upgrades
Intel® Entry Server Chassis SC5299-E DP/WS/BRP User Guide 23
3. Remove the left side cover. For instructions, see “Removing the Left Side Cover”.
4. Remove the front bezel assembly. For instructions, see “Removing the Front Bezel
Assembly”.
5. Loosen thumb screw and remove the drive cage EMI shield (see letter “A” in the
following figure).

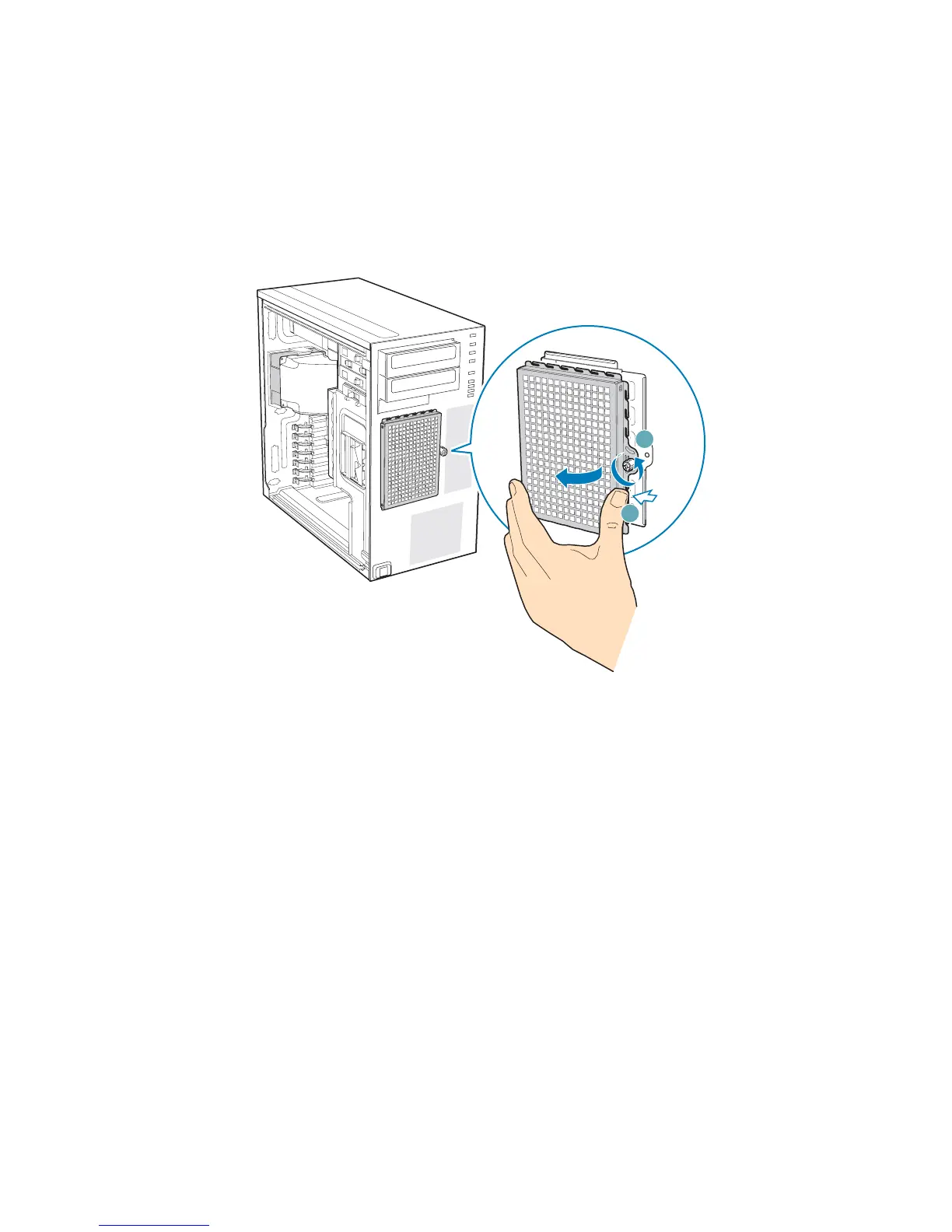

Figure 22. Removing Drive Cage EMI Shield from Chassis
6. Remove any PCI add-in boards that use the PCI card guide. For instructions, see
“Removing PCI Add-in Boards”.
TP01869
A
B
To Next Page
