Hardware Installations and Upgrades
Intel® Entry Server Chassis SC5299-E DP/WS/BRP User Guide 33
8. Reinstall the front bezel assembly. For instructions, see “Installing the Front Bezel
Assembly”.
9. Reinstall the left side cover. For instructions, see “Installing the Left Side Cover”.
10. Reconnect all peripheral devices and the AC power cable(s). Power up the server.
Removing a CD-ROM or DVD-ROM Drive
1. Observe the safety and ESD precautions listed in Appendix A, “Safety Information”.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see “Removing the Left Side Cover”.
4. Remove the Front Bezel Assembly. For instructions, see “Removing the Front Bezel
Assembly”.
5. Disconnect the power and data cables from the rear of the CD-ROM or DVD-ROM
drive (see letter “A” in the following figure). Move latch to the “unlock” position (see
letter “B”). Slide CD-ROM or DVD-ROM drive out of the Device Drive Bay (see
letter “C”).

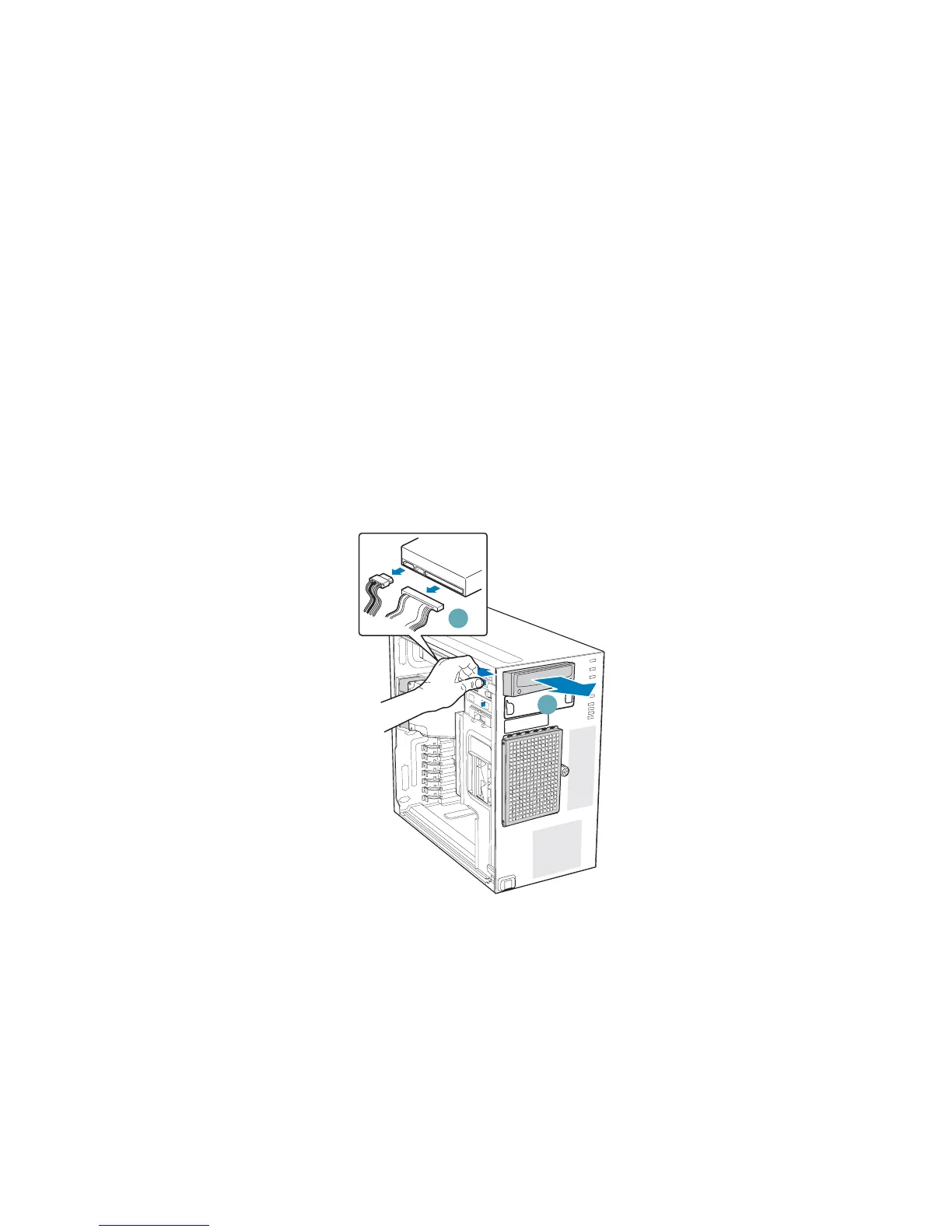

Figure 37. Removing CD-ROM or DVD-ROM Drive
TP02047
C
B
A
