Hot Swap Drive Cage Upgrade Install Instructions (optional)
Intel® Entry Server Chassis SC5299-E DP/WS/BRP User Guide 61
14. Attach the fan to the fan bracket by placing two corners of the fan into the two holding
slots on the fan bracket. Press the fan into the fan bracket until is clicks into place.
Caution: Ensure that the label and directional airflow arrow on fan are pointed out
(away from the backplane).

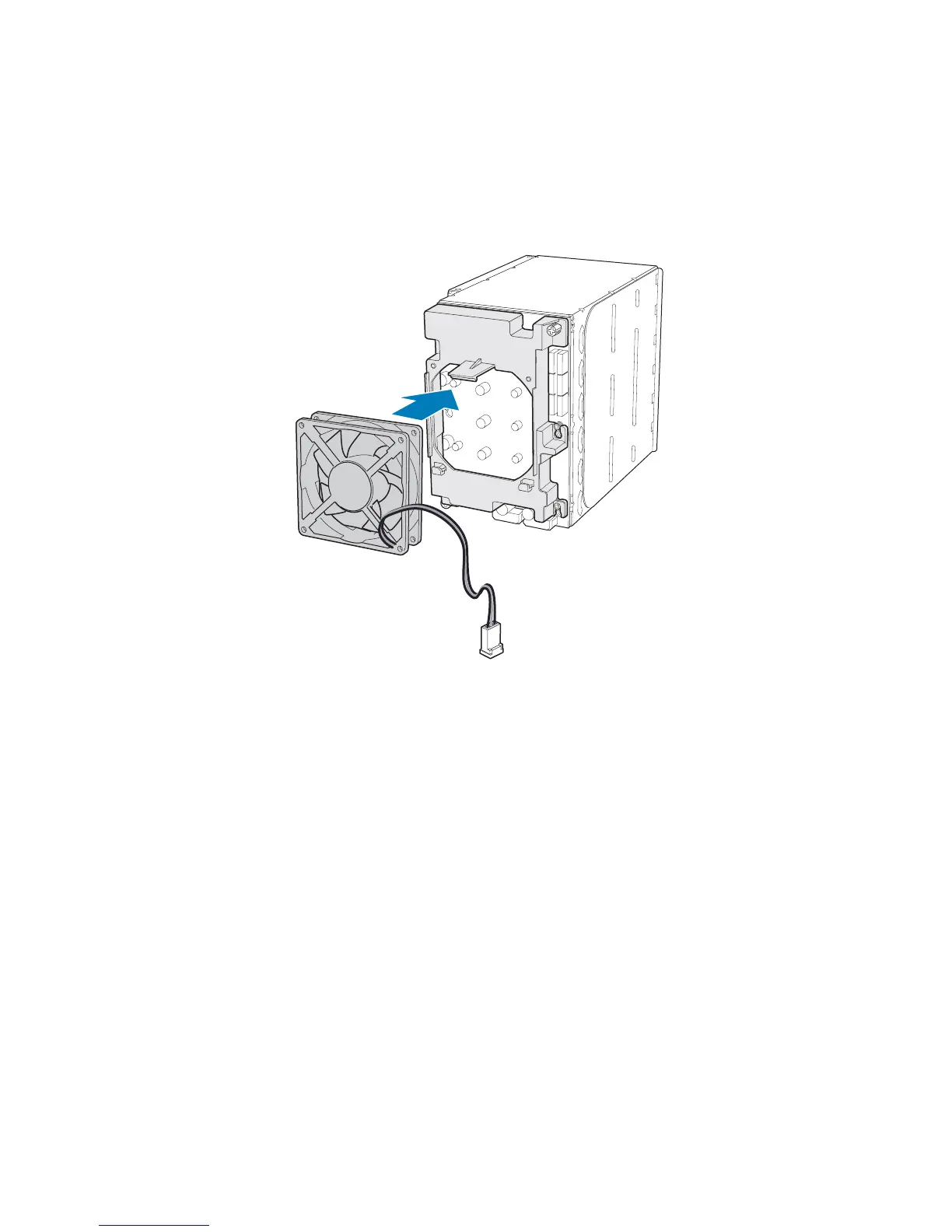

Figure 78. Attaching Fan to Fan Bracket
TP01062
