Hardware Installations and Upgrades
Intel® Entry Server Chassis SC5299-E DP/WS/BRP User Guide 51
9. Remove the two screws (see letter “A” in the following figure) attaching the rear
support bracket to the old power supply cage. Remove the rear support bracket (see
letter “B”).

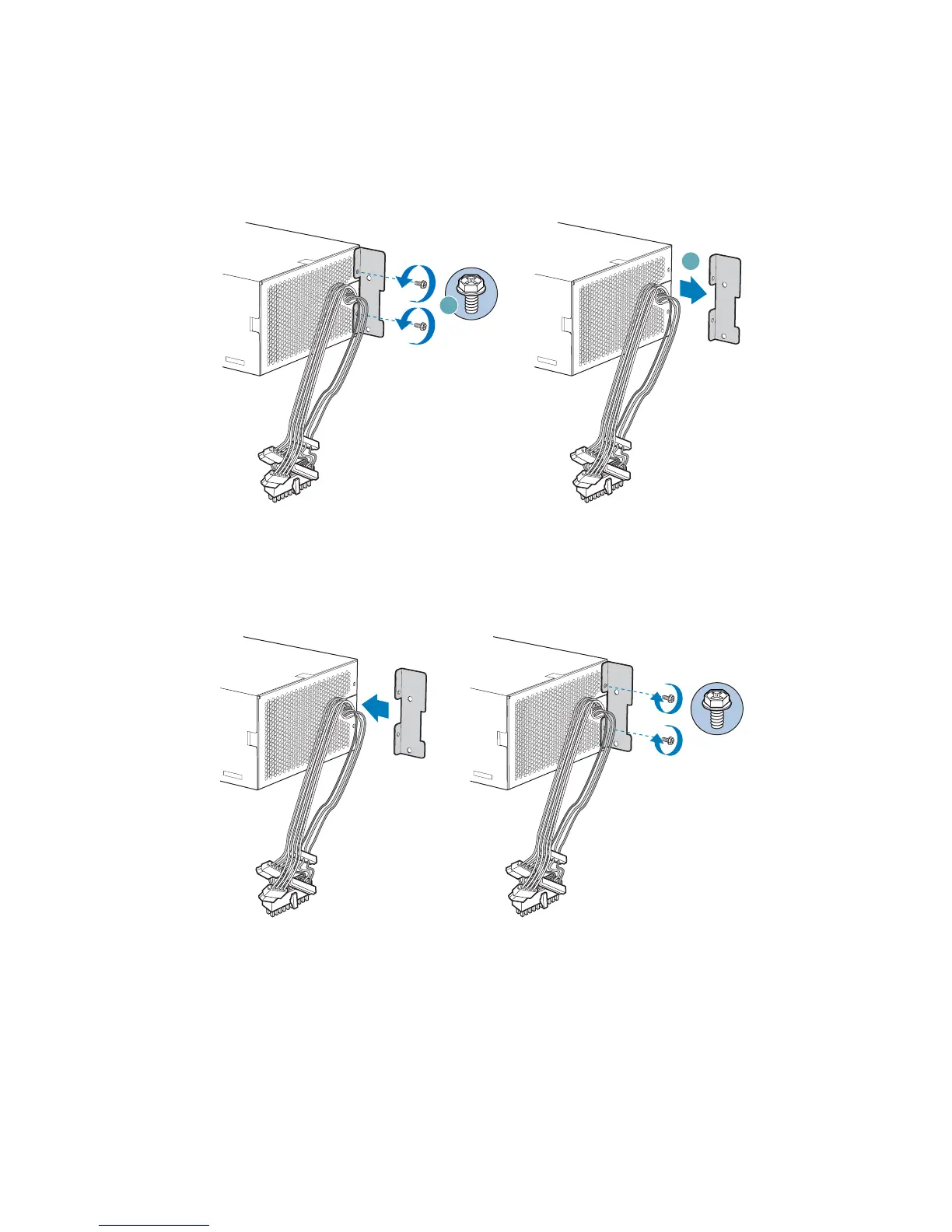

Figure 65. Removing Rear Support Bracket from Hot Swap Power Supply Cage
10. Attach the rear support bracket to the new power supply cage with the two screws
removed from the previous step.
Figure 66. Attaching Rear Support Bracket to Power Supply Cage
TP01764
B
A
TP01763
