7. Remove the PCI card guide by pressing in on the blue tabs (see letter “A” in the
following figure) and pulling the PCI card guide outward (see letter “B”).

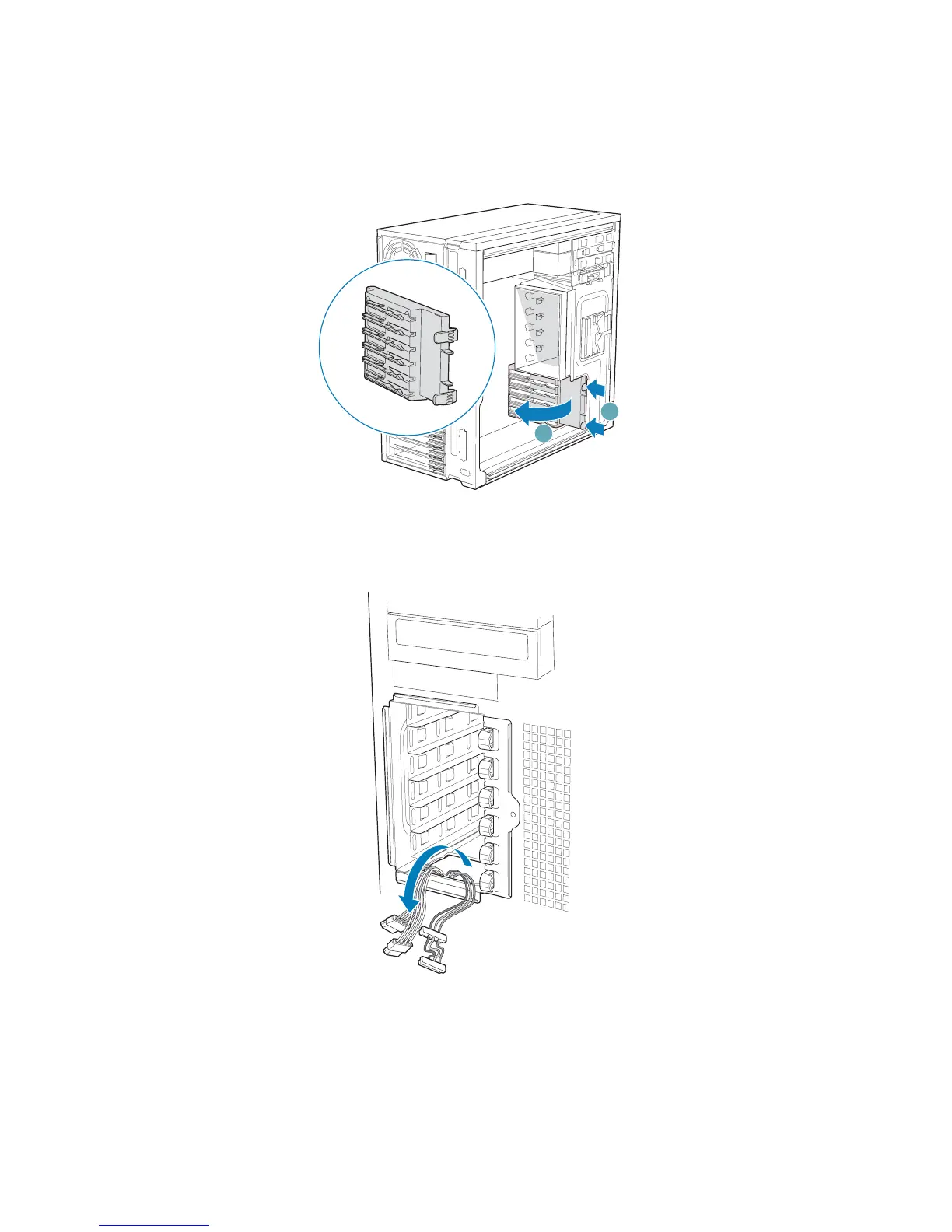

Figure 23. Removing PCI Card Guide
8. Route the required power cables (connectors P8-P13) from behind the PCI card guide
through the cable routing area at the bottom of the fixed drive cage.
Figure 24. Routing Hard Drive Power Cables
TP01732
A
B
AF000317
