Hot Swap Drive Cage Upgrade Install Instructions (optional)
62 Intel® Entry Server Chassis SC5299-E DP/WS/BRP User Guide
15. Slide the drive cage into the drive bay slot on the chassis. You should hear a click
when the blue plastic retention mechanism locks into place. Be sure to feed the fan
cable through the slot first so that it exits through the back of the drive cage. Connect
the fan cable to its connector on the server board.

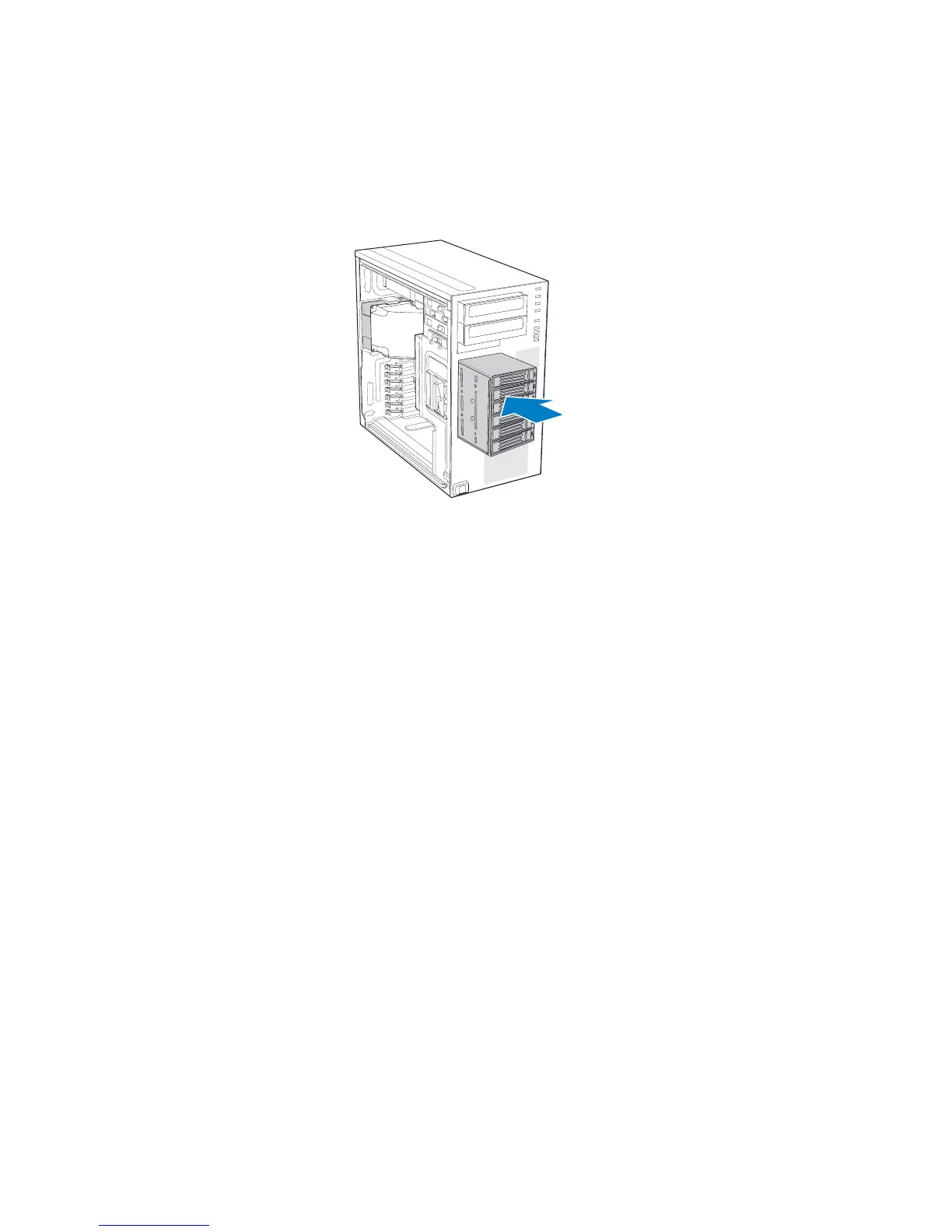

Figure 79. Inserting Hot Swap Drive Cage into Chassis
16. Connect fan cable to the appropriate connector on the server board. See your server
board documentation for information on the location of the fan cable connector.
TP02051
