Hardware Installations and Upgrades
Intel® Entry Server Chassis SC5299-E DP/WS/BRP User Guide 27

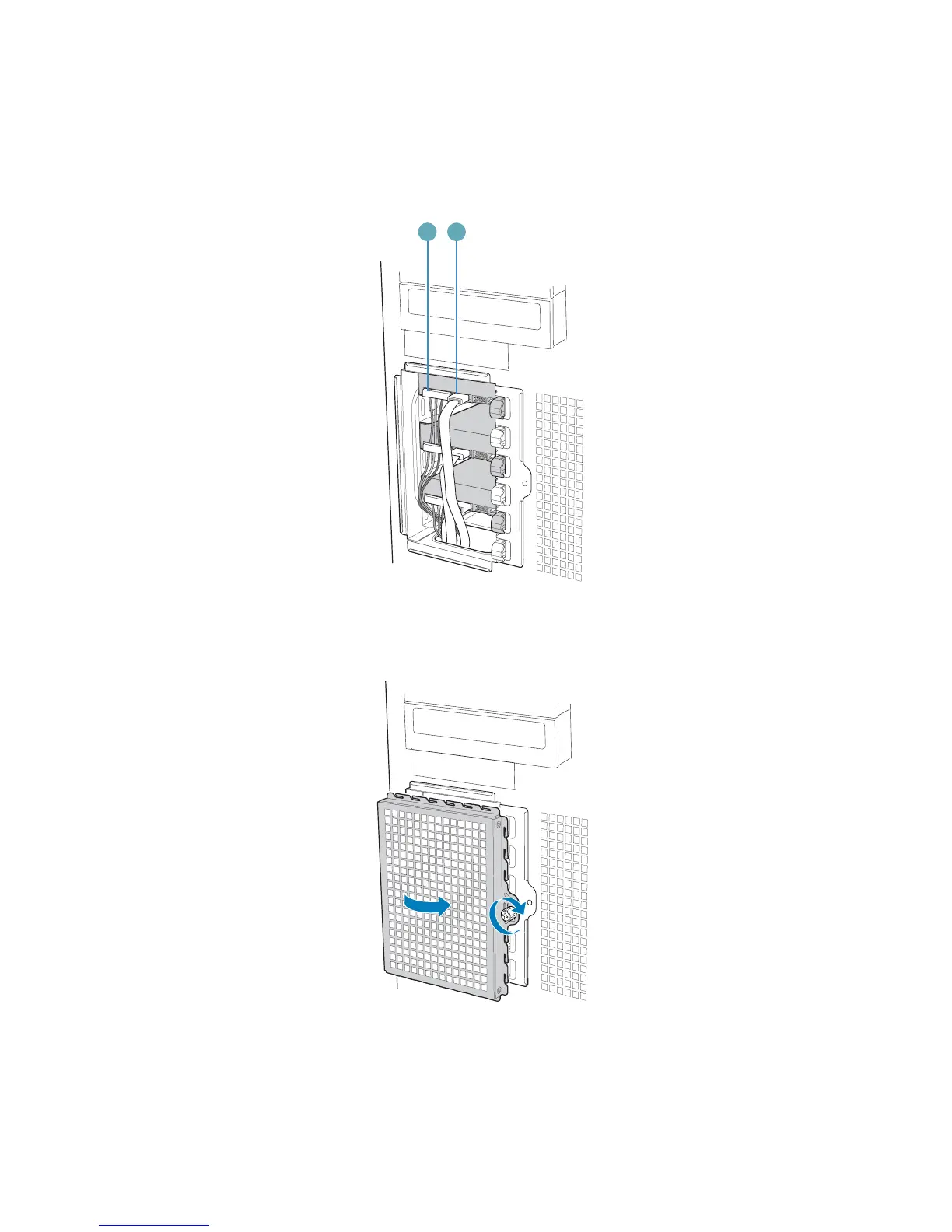

13. Install power (see letter “A” in the following figure) and data (see letter “B”) cables to
each of the installed drives.The cables route through the oval opening at the bottom of
the fixed drive cage.
Figure 29. Cabling a Fixed Hard Drive
14. Re-attach the drive cage EMI shield to the chassis and tighten the thumb screw.
Figure 30. Re-installing Drive Cage EMI Shield
AF000429
A
B
AF000315
