Hardware Installations and Upgrades
Intel® Entry Server Chassis SC5299-E DP/WS/BRP User Guide 47
Installing an Additional Hot Swap Power Supply Module
(BRP configuration only)
Note: This install procedure only applies to a chassis with redundant power supply capability.
DO NOT perform this install procedure if your chassis has a fixed power supply
Warning: Hazardous conditions, power supply: Hazardous voltage, current, and energy levels are
present inside the power supply. There are no user-serviceable parts inside it; servicing of
the power supply should be done only by technically qualified personnel.
1. Observe the safety and ESD precautions listed in Appendix A, “Safety Information”.
2. Insert finger into hole in middle of filler panel and remove filler panel from chassis.
.

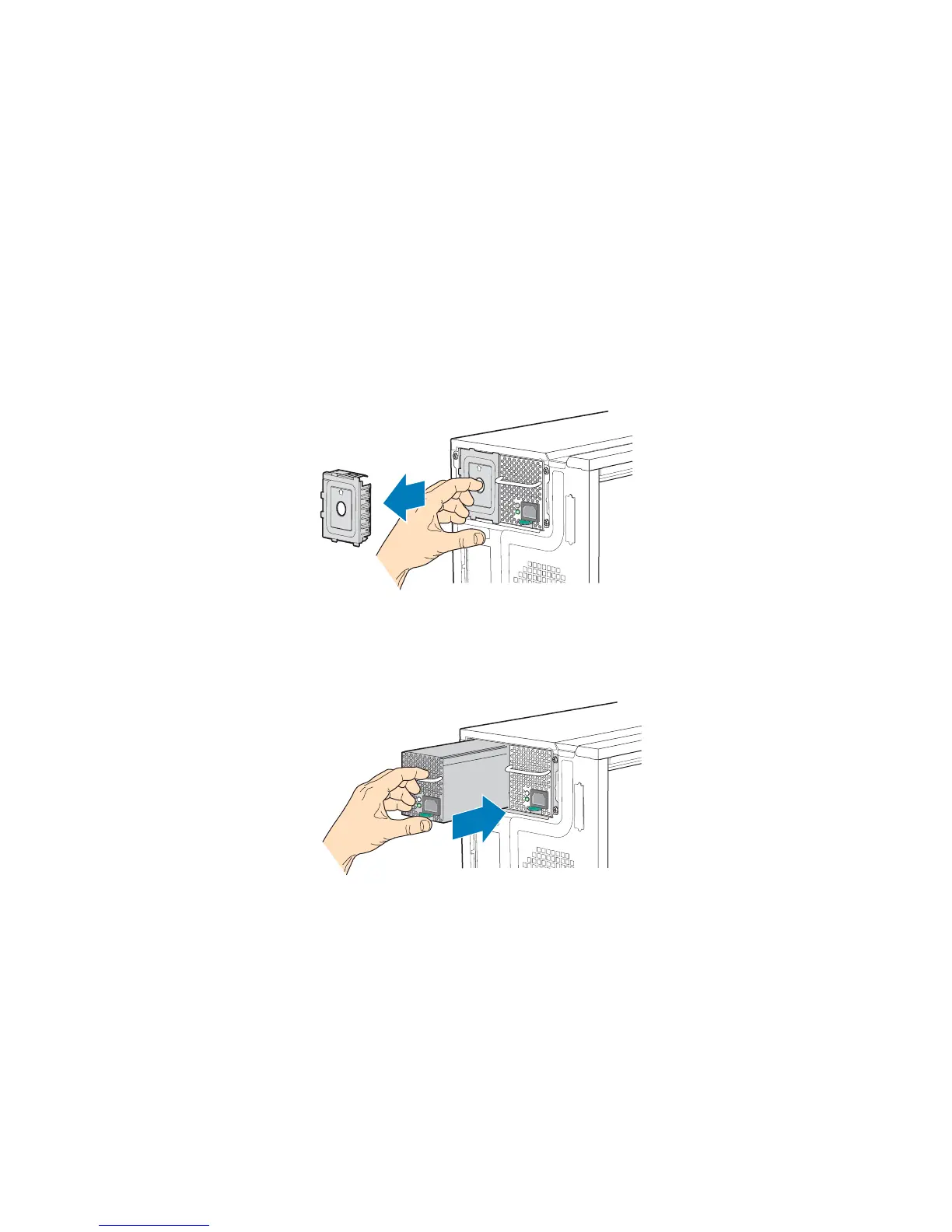

Figure 58. Removing Power Supply Filler Panel
3. Insert new hot swap power supply module until it clicks into place.
Figure 59. Inserting Additional Hot Swap Power Supply Module
TP00916
UP
UP
TP00917
