Rack Mount Kit Install Instructions (optional)
Intel® Entry Server Chassis SC5299-E DP/WS/BRP User Guide 81
12. If removed, install front bezel assembly. Affix front panel label (see letter “A” in the
following figure) to the front panel.

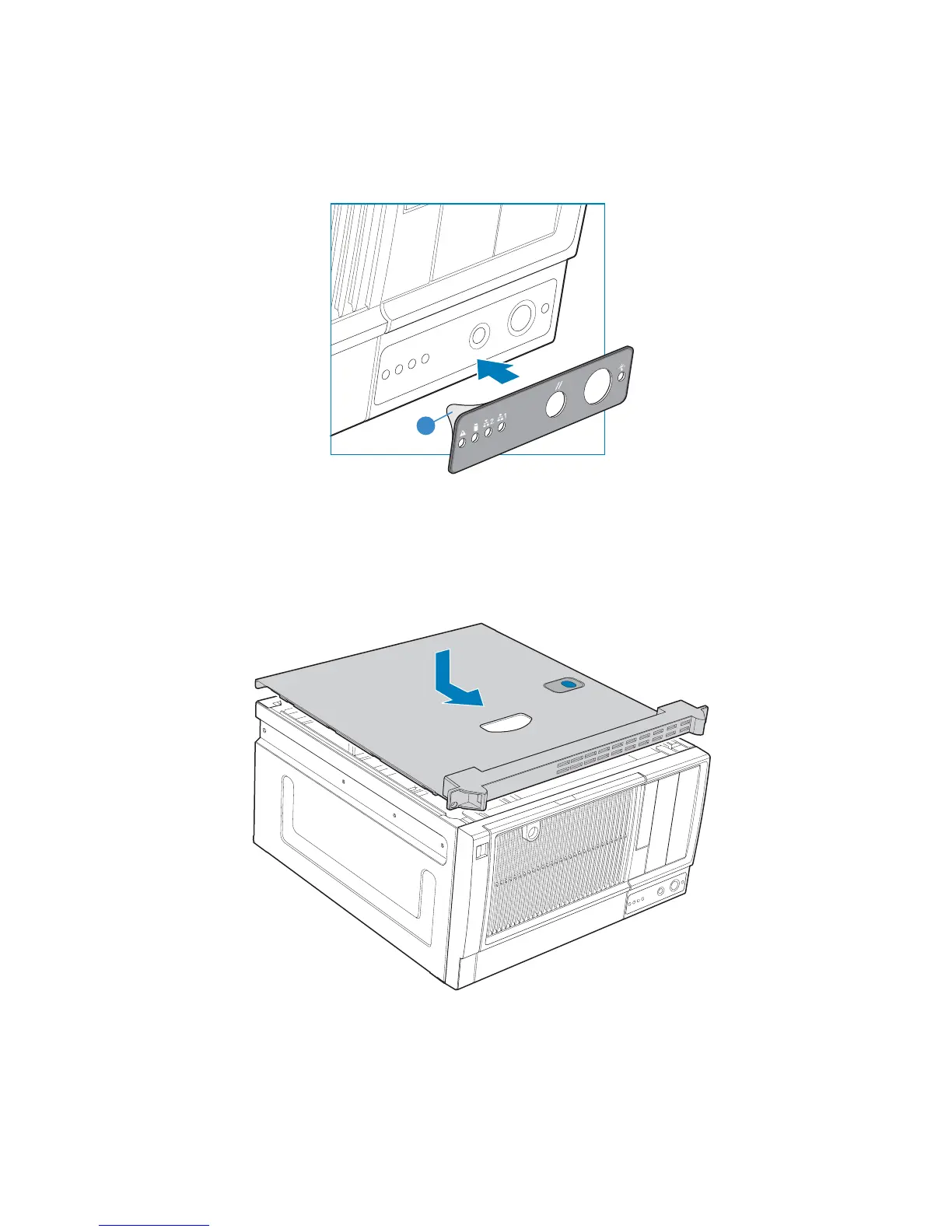

Figure 105. Affixing Label to Front Panel
13. Install top side cover on chassis.
Warning: This chassis must be operated with the left side cover installed to ensure proper cooling.
Figure 106. Installing Top Side Cover on Chassis
TP02005
A
TP01057
To Next Page
