Hot Swap Drive Cage Upgrade Install Instructions (optional)
Intel® Entry Server Chassis SC5299-E DP/WS/BRP User Guide 65
c. If you are installing a SAS/SATA hot swap backplane without expander
Warning: SATA controllers cannot be used with an expander backplane.
i. Connect the two power cables (see letter “A” in the following figure) to the
power cable connectors on the SAS/SATA backplane.
ii. Connect a SAS/SATA data cable (see letter “B”) to each appropriate SAS/
SATA connector on the SAS/SATA backplane.
iii. Connect the IPMB cable (see letter “C”).
iv. Connect the SES cable (see letter “D”).
v. Connect the fan power to the server board. For the Intel® Server Board
S5000VSA, use FAN1. For other Intel® server boards, refer to the Quick Start
User’s Guide that came with the server board.

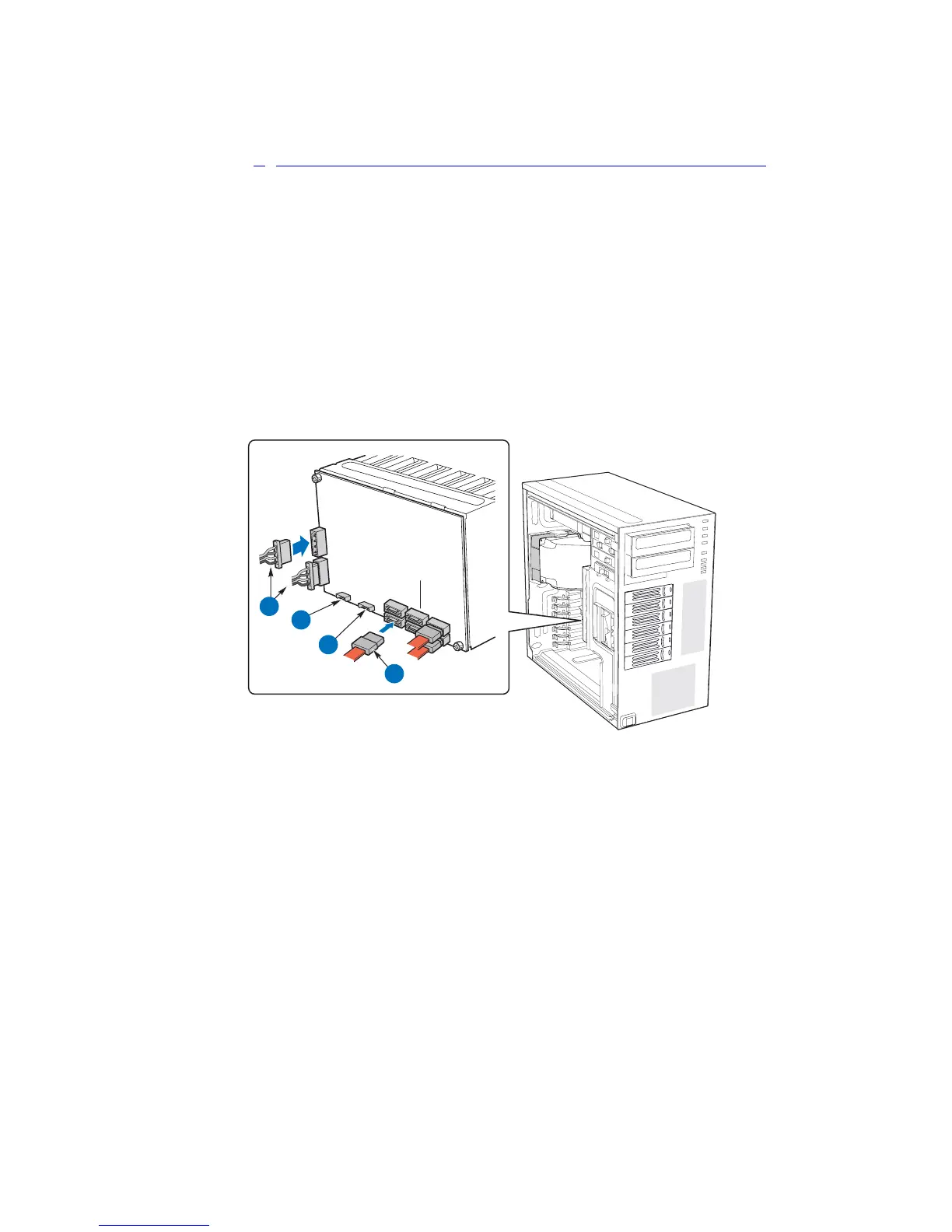

Figure 82. Making Six-drive SAS/SATA Hot-Swap Drive Cage Backplane without
Expander Connections (fan bracket not shown in the illustration for clarity)
AF00449
6-Drive Non-e
xpander
HS Backplane
A
B
HDD 4
HDD 5
HDD 2
HDD 3
HDD 0
HDD 1
C
D
