Chapter 2: Physical installation
TruVision NVR 11 User Manual 11

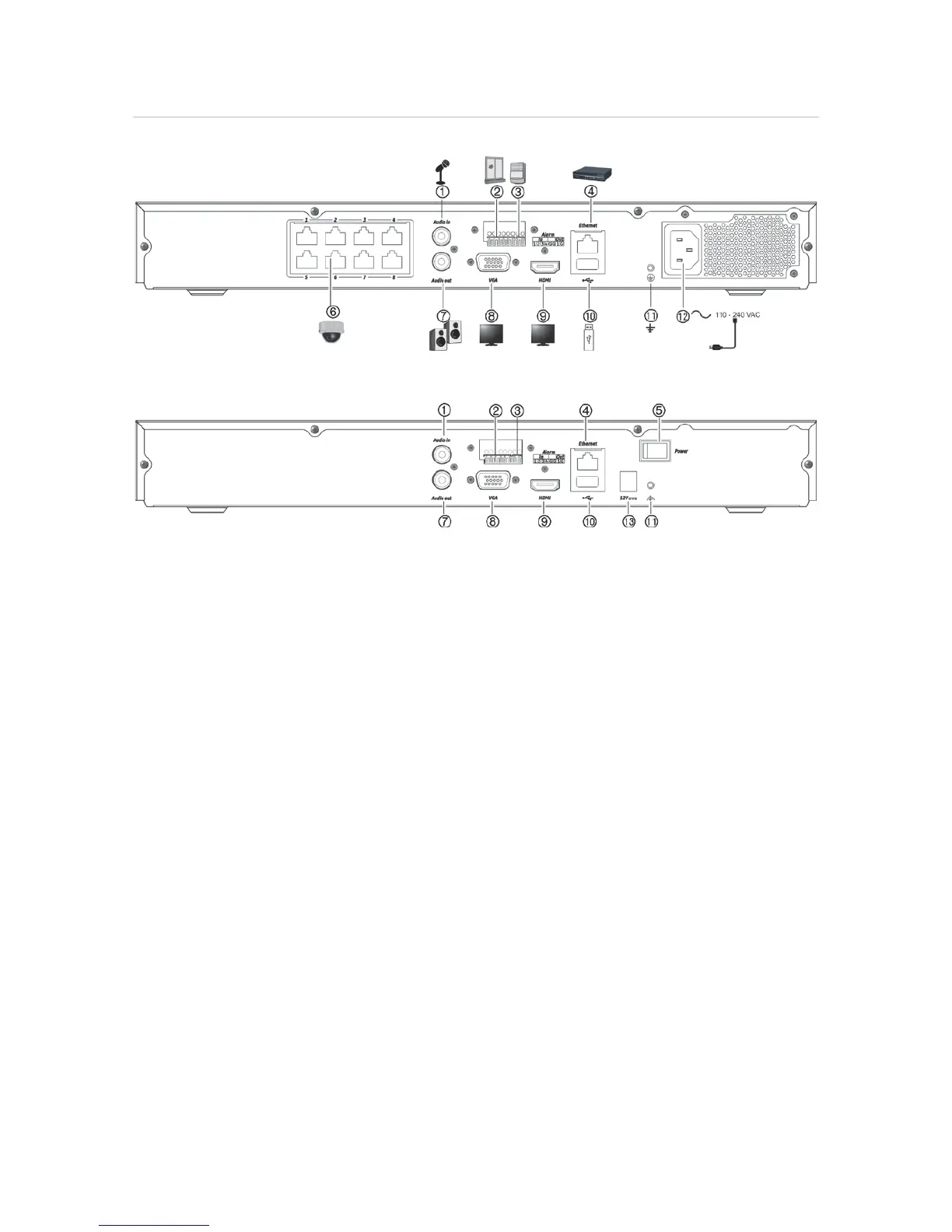

Figure 2: Back panel connections TVN 1108S and TVN 1108
TVN 1108S:
TVN 1108: (EMEA only)
1. Connect a microphone for bi-directional audio
(not recorded).
2. Connect up to four alarm inputs
3. Connect one alarm relay output.
4. Connect to a network.
5. Power switch (on/off).
6. Embedded PoE ports to connect IP cameras
(8).
7. Connect to speakers for audio output.
8. Connect to a VGA monitor.
9. Connect to an HDTV. The HDMI connection
supports both digital audio and video.
10. Connect to an optional USB 2.0 device such
as a mouse, CD/DVD burner or HDD.
11. Connect to ground.
12. Connect a power cord to the recorder
(included).
13. Connect to the 12 VDC PSU (included).
