Invacare Storm 3 - 3 Layout of modules, components and displays and controls

Service Manual
Storm³
As at: 07.03.02 Page 11
3 Layout of modules, components and displays and controls

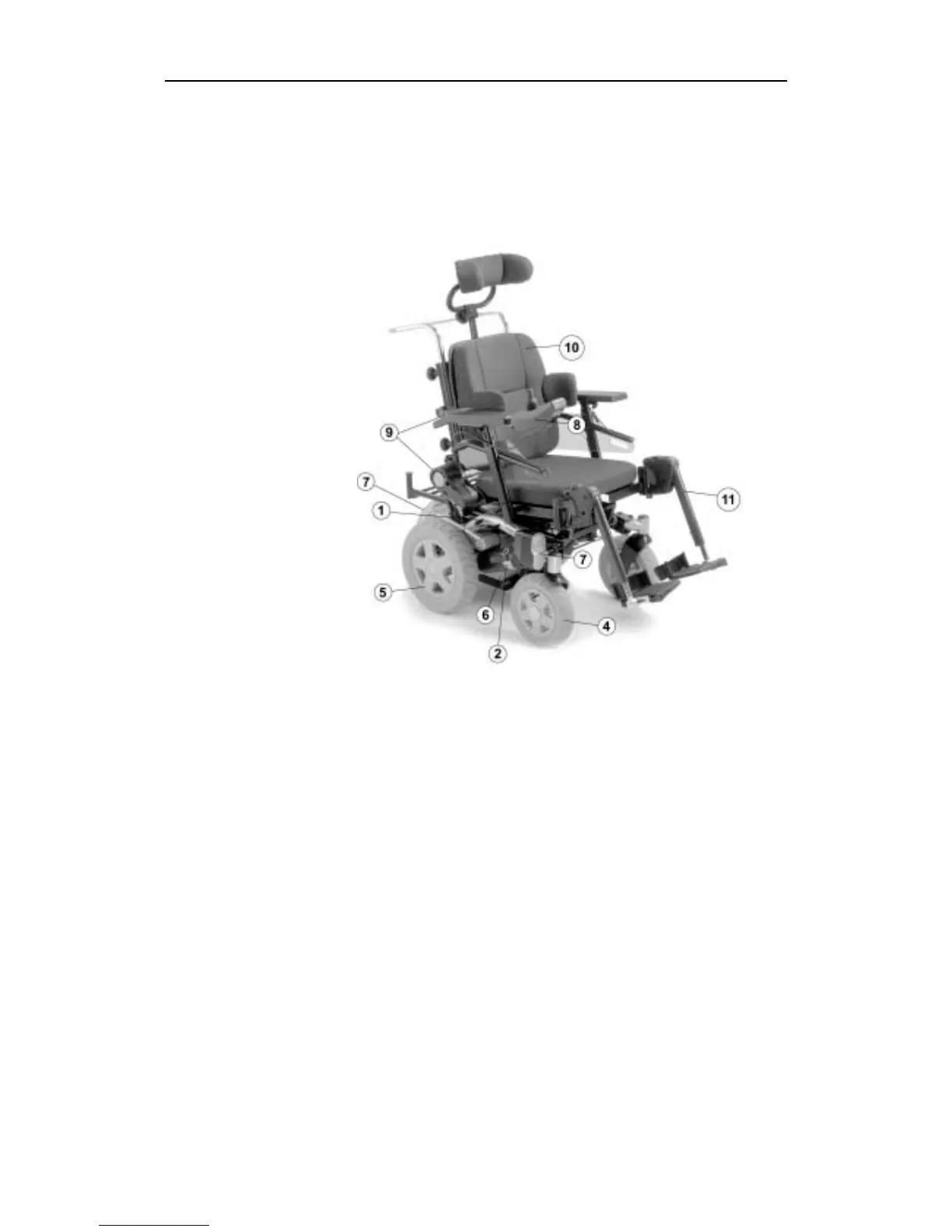

The following figures show the layout of "Storm³" modules.
Removal and reassembly of spare parts is described from Chapter 8 onwards.
1 Frame (chassis)
2 Drive unit, disengaging
mechanism, support
wheels
3 Brake (no diagram)
4 Castor wheel (front
wheel)
5 Drive wheel
6 Battery unit
7 Lighting
8 Joystick box
9 Seat unit, seat angle
adjustment, armrests,
side panels
10 Backrest
11 Leg supports
12 Accessories (not
illustrated) kerb
climber, cane holder
