Service Manual
Storm³
As at: 07.03.02 Page 79
• When reassembling, ensure that the clamp blocks (3x 13)
and the clamp cone (11) are in the right position.
• Only screw the clamping lever (1) in so far that the foot
support is securely locked in place when the clamping
lever is activated, and so that it can be set at an angle
when the clamping lever is opened.
Reassembly takes place in the reverse order.

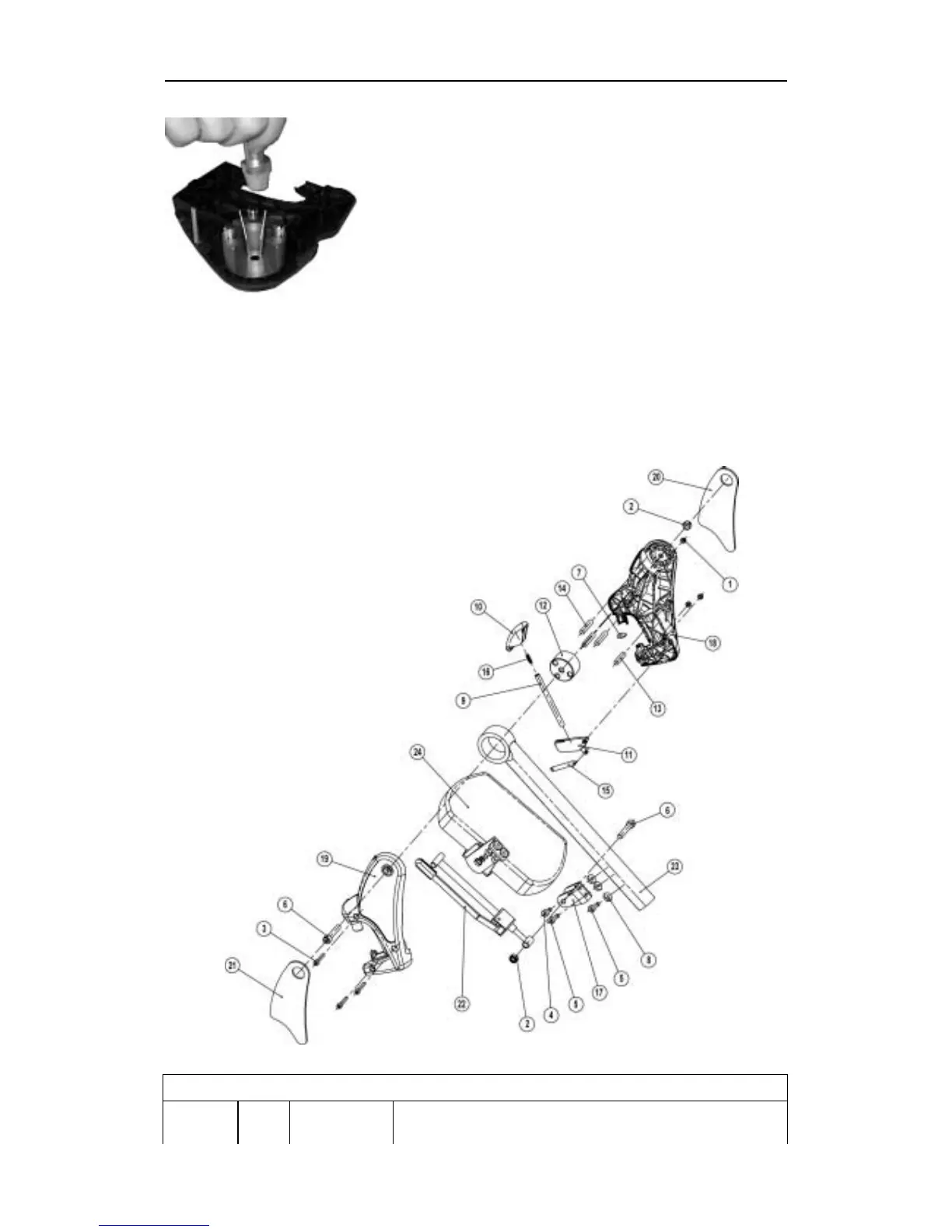

14.4 Footrest hanger (ADM) with manual height adjustment
Pos Qty. Item No./Pcs. Item Description
- 1 SP1422567 FOOTREST HANGER RH 80° MANUAL HEIGHT-
ADJUSTABLE ASSY.
