Invacare Storm 3 - Replacing the Interlock, Angle Adjustment

Storm³
Service Manual
Page 78 As at:07.03.02
10 1 Z173203-9005 FOOTREST HANGER RH MANUAL HEIGHT-
ADJUSTABLE.
- 1 SP1423194 MOUNTING SET RELEASE LEVER FOR BST MAN. HV
11 1 Z174132.99 CLAMP CONE
12 1 Z173184.99 PLUNGER ROD
13 3 Z173206.80 CLAMP BLOCK
14 1 Z173183 RELEASE BUTTON
15 1 Z173177 CLASP LEVER
16 1 J10096 STRAIGHT PIN RD. 5 X 32; DIN-7
17 3 J10097 STRAIGHT PIN RD. 8 X 40; DIN-7
18 1 Z173178 TENSION SPRING
19 1 Z174133.99 BEARING PLATE

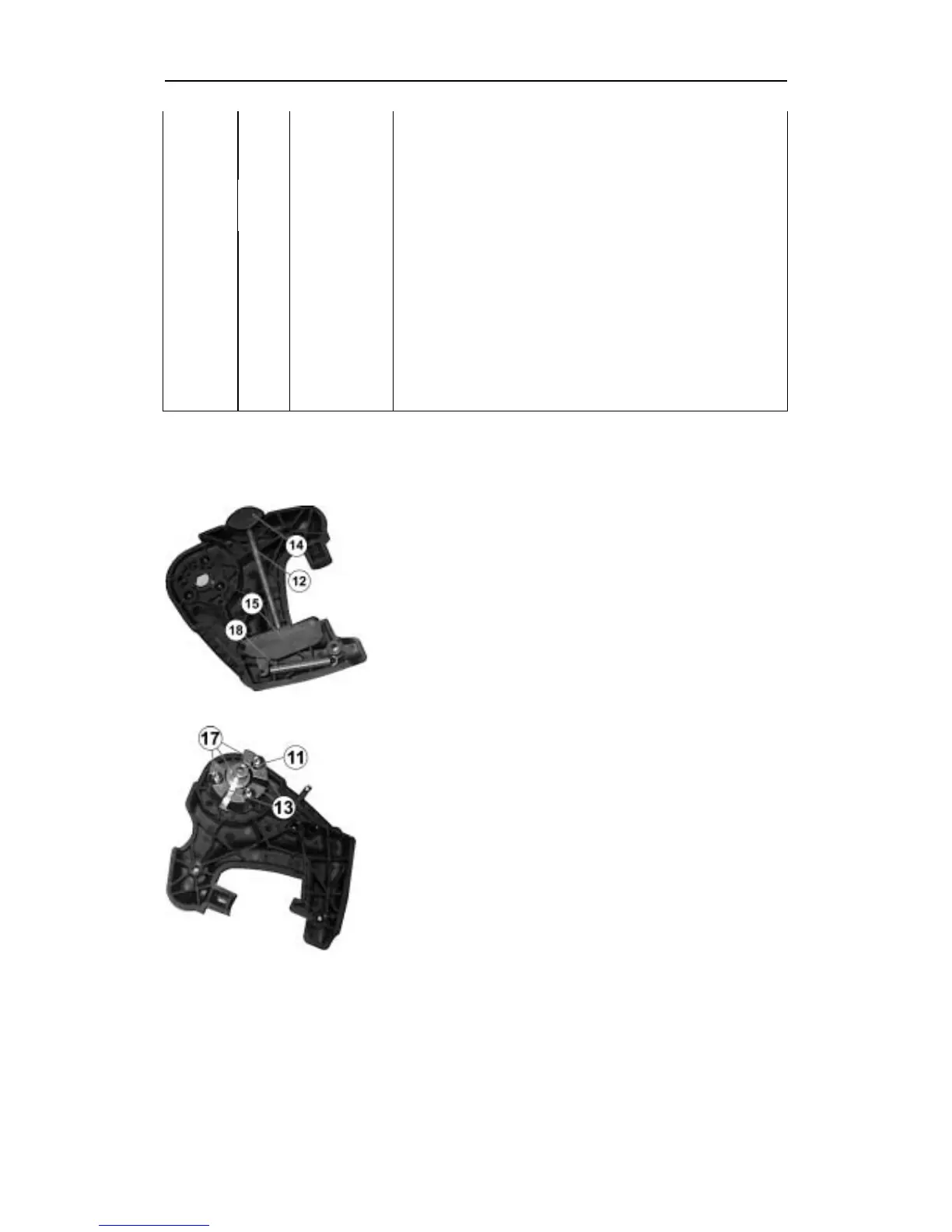

14.3.1 Replacing the interlock, angle adjustment
Always compare the position numbers with the
appropriate drawings!
• Unscrew clamping lever (1) and hex nuts (6).
• Unscrew cylinder-head screw (4) and hex nut (3).
• Remove footrest hanger shell (7).
• Replace the plunger rod (12), release button (14), locking
lever (15) or tension spring (18).
• Replace footrest hanger shells (7. 8) if necessary.
• Remove bearing plate (19).
• Withdraw straight pins (17).
• Pull out clamp cone (11), if necessary knock out carefully.
• Remove clamping blocks (3x 13).
