Invacare Storm 3 - Standard Seat Complete

Service Manual
Storm³
As at: 07.03.02 Page 55

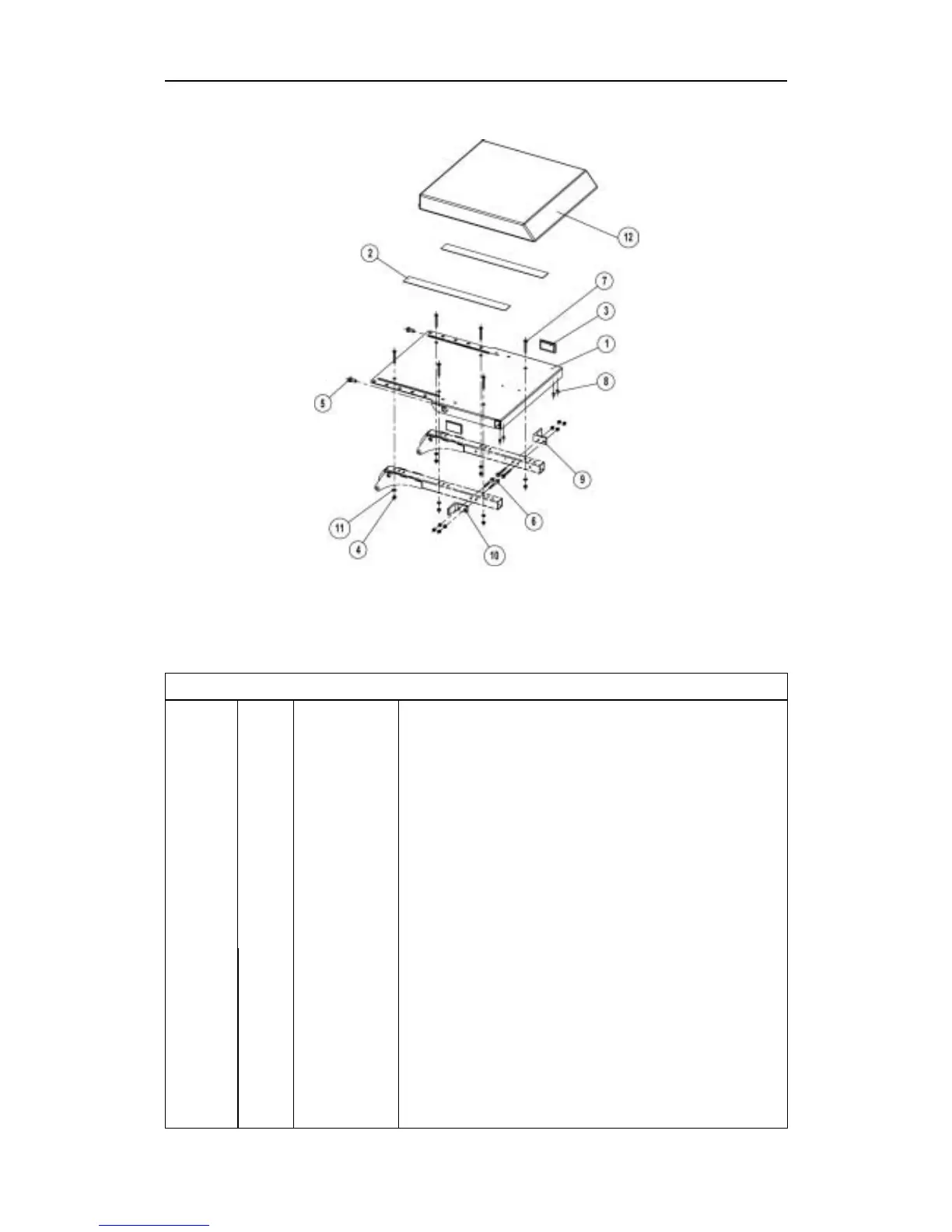

12.1 Standard seat complete
Pos Qty. Item No./Pcs. Item Description
- 1 1422060 SEAT (SINGLE-PART) ASSY.
1 1 1419999-9005 SEAT PLATE
2 2 U21087 HOOKED BELT CUT 38 X 400 MM
3 2 P31298 REFLECTOR; YELLOW
- 1 SP1423205 FIXING KIT SEAT (SINGLE PART VERS.)
4 10 F20109 HEXAGON NUT M6 SELF-LOCKING
5 2 5824273 BOLT M10 X 20
6 4 5824263 BOLT M6 X 50
7 6 D60096 COUNTERSUNK SCREW WITH ALLEN KEY HEAD M6 X
45 10.9
8 4 D70187 GRUB SCREW WITH ALLEN KEY & CUP POINT M8 X 10
9 1 1421701-9005 SUPPORT BRACKET LH, SB 43
10 1 1421700-9005 SUPPORT BRACKET RH, SB 43
11 10 G00115 WASHER 6.4 X 12.5 X 1.6
12 1 1420460 SEAT CUSHION ST=41 CM
12 1 1420461 SEAT CUSHION ST=46 CM
12 1 1420462 SEAT CUSHION ST=51 CM
