Service Manual
Storm³
As at: 07.03.02 Page 73

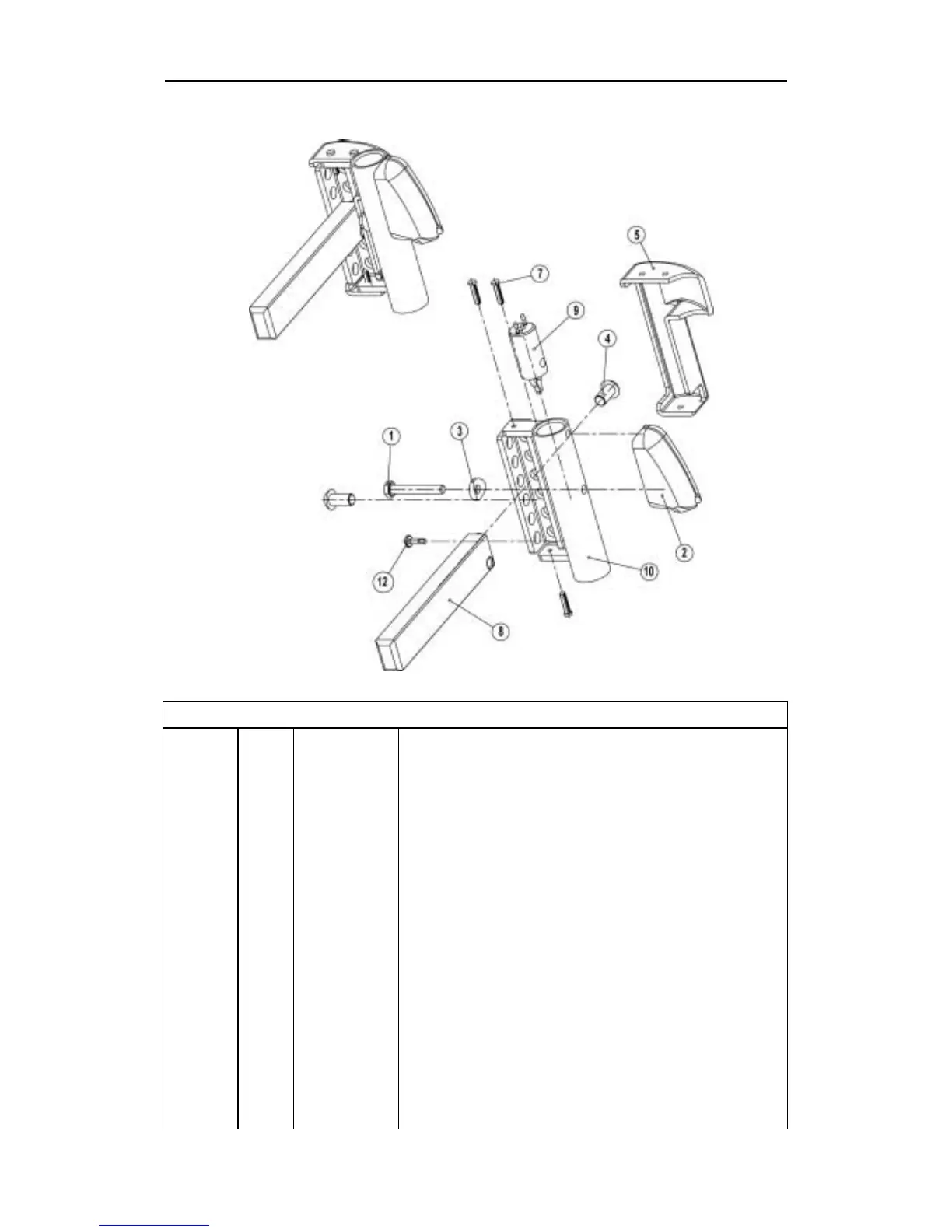

14.1 Footrest support
Pos Qty. Item No./Pcs. Item Description
- 1 SP1422825 FOOTREST SUPPORT LH FOR ELECTRICAL
LEGRESTS
- 1 SP1422826 FOOTREST SUPPORT RH FOR ELECTRICAL
LEGRESTS
- 1 SP1417917 FOOTREST SUPPORT LH
- 1 SP1417918 FOOTREST SUPPORT RH
1 1 1422057 BOLT M6 X 40 DIN 933
4 2 3908508 COUNTERSUNK SCREW WITH ALLEN KEY HEAD
M8*16 10.9
5 1 1419716 ENCLOSURE LH
- 1 1419717 ENCLOSURE RH
2 1 Z173201.79 FOOTREST ADAPTER
7 3 H90993 PINE TREE CLIP FOR HOLE DIAMETER 3.0 MM
8 1 1417921-0003 INSERT
3 1 1417934-0003 SPACER WASHER
9 1 1415097
LEGREST CONTACT WITH CONNECTION CABLE 700
MM
