Invacare Storm 3 - Contour Backrest (Electrical)

Storm³
Service Manual
Page 66 As at:07.03.02

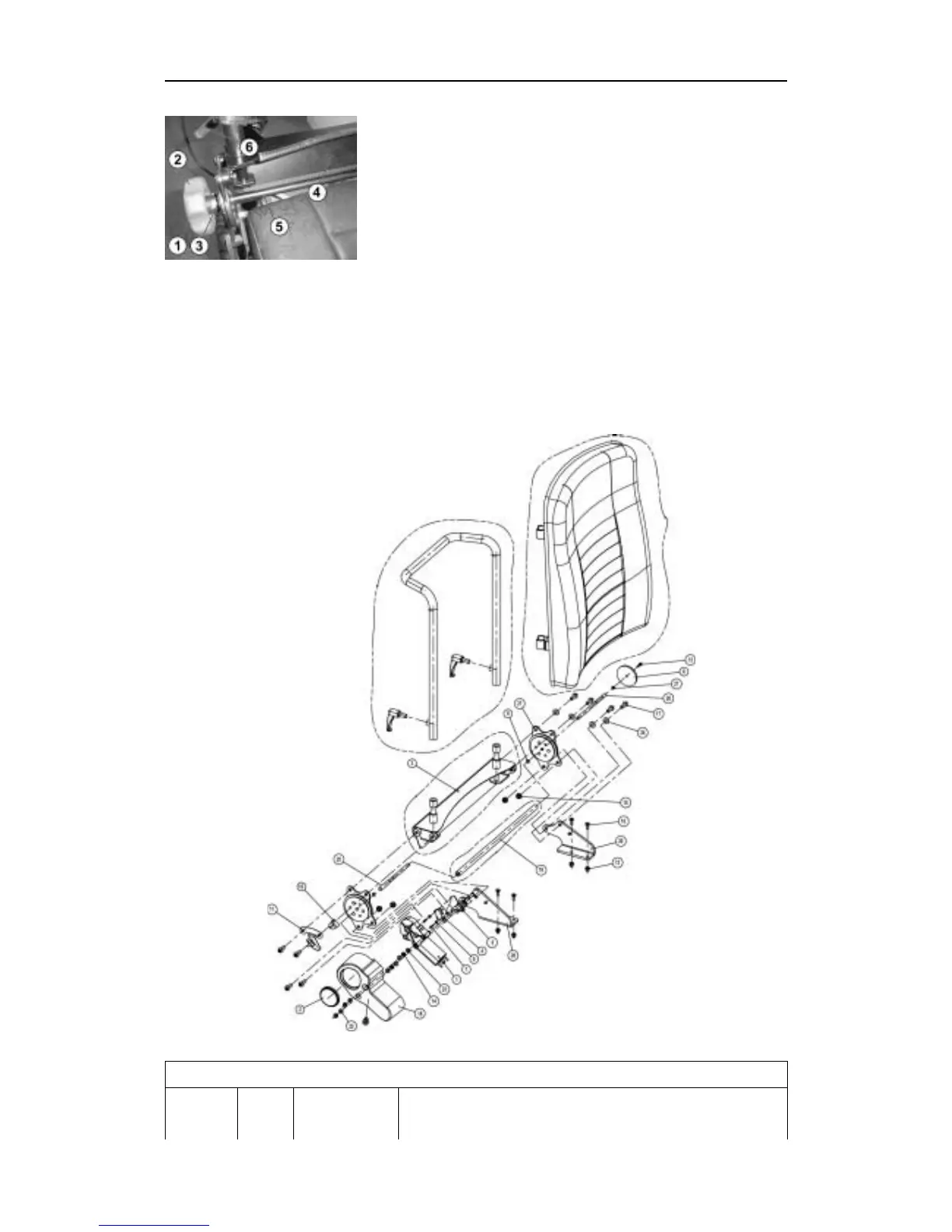

• Loosen the clamping lever (6) and remove the backrest
tube.
• Unscrew the reflector (1).
• Unscrew the handwheel (2).
• Pull the handwheel shaft or armature shaft out to the side.
• Unscrew the seat fittings (3).
• Remove the backrest attachment (4) or connecting tube
(5) and replace.
Reassembly takes place in the reverse order.
13.3 Contour backrest (electrical)
Pos Qty. Item No./Pcs. Item Description
- 1 SP1422068 BACKREST ADJUSTMENT ELECTRICAL SB 43 ASSY.
- 1 SP1422069 BACKREST ADJUSTMENT ELECTRICAL SB 48 ASSY.
