11 Remote

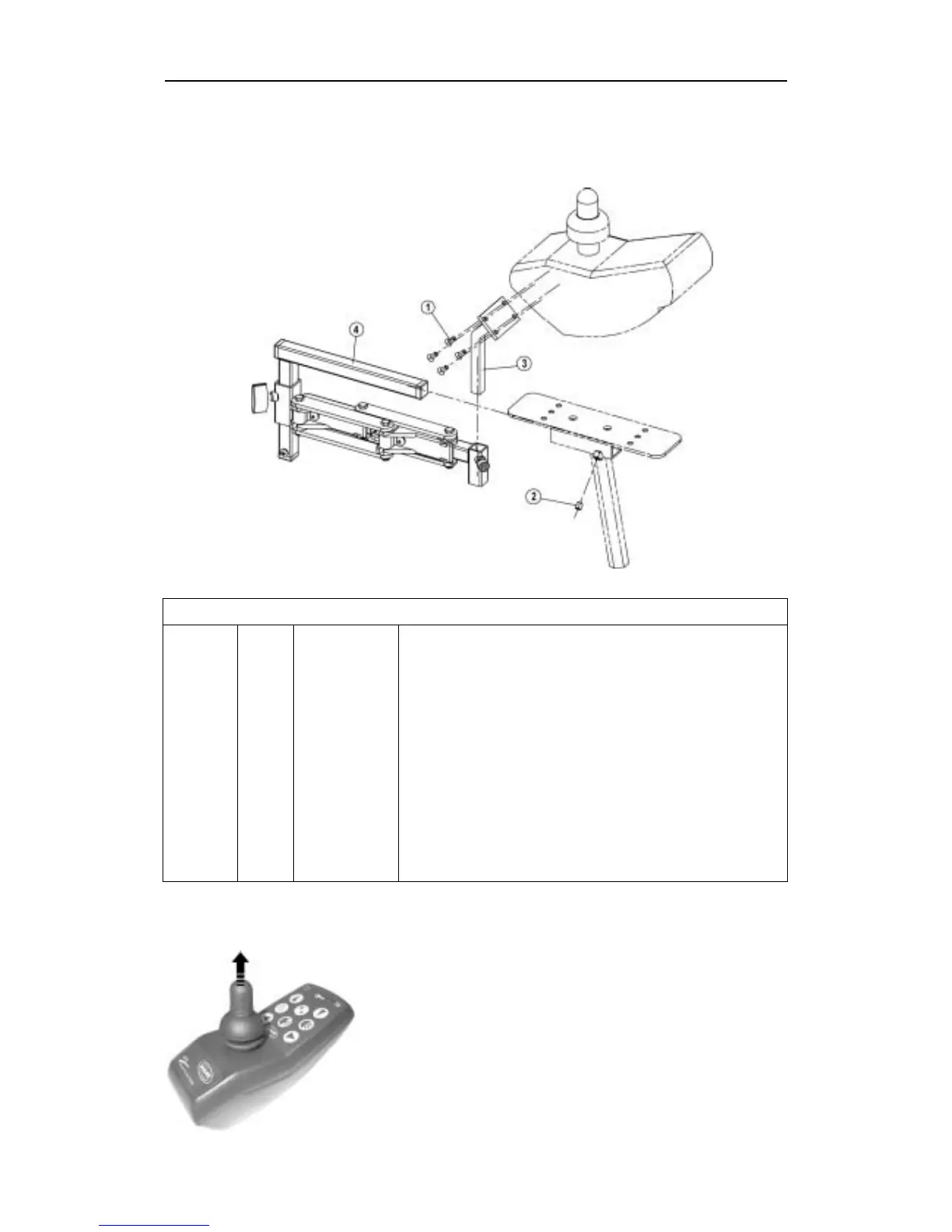

11.1 ACS remote REM24 SC
Pos Qty. Item No./Pcs. Item Description
- 1 SP1422877 REMOTE HOLDER RH FOLDING & HV ASSY. (REM 24
SC)
- 1 SP1422878 REMOTE HOLDER LH FOLDING & HV ASSY. (REM 24
SC)
- 1 SP1423434 MOUNTING SET REMOTE HOLDER HV & FOLDING
1 4 D10124
COUNTERSUNK SCREW WITH PHILLIPS HEAD M4 X
10
2 1 D70188 GRUB SCREW WITH ALLEN KEY & POINT M6 X 8
3 1 1421793-0303 ADAPTER FOR ACS REMOTE HOLDER SWINGAWAY
4 1 1421795 ACS REMOTE HOLDER SWINGAWAY RH
4 1 1421796 ACS REMOTE HOLDER SWINGAWAY LH
11.1.1 Replacing joystick knob
• Pull the joystick knob off upwards and replace.
