• Insert the wheel rim halves from outside into the tyre.
• Pump up the tyres a little.
• Insert the Allen screw once again, and screw the wheel rims together tightly.
• Check that the tyre is seated correctly once again.
• Pump the tyre up to the prescribed pressure.
• Refit the wheel.

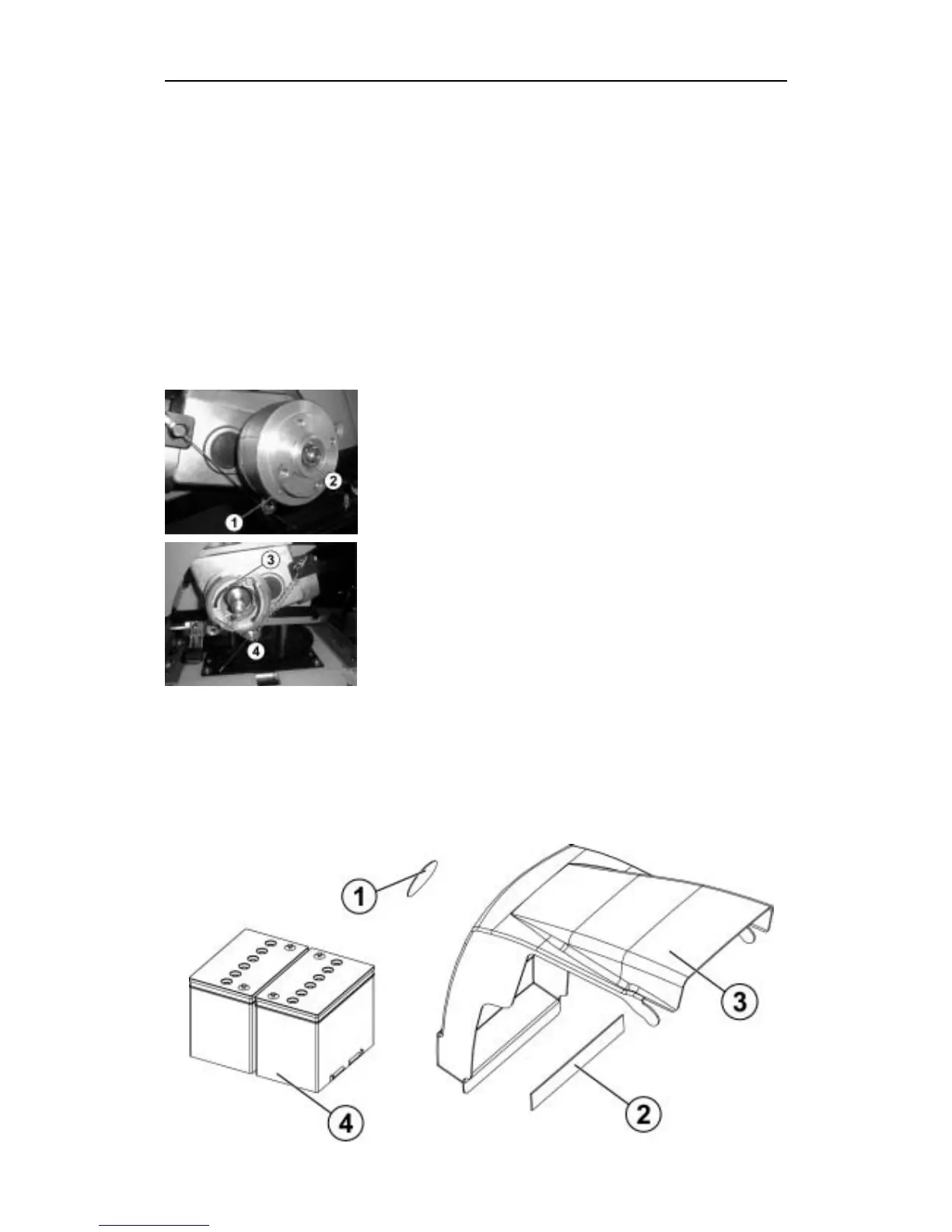

9.1.10 Replacing wheel hubs, brake linings
• Dismantle drive wheel (see page 36, chapt. 9.1.7).
• Unscrew hex nut (2) and remove washer.
• When reassembling, secure the hex nut using Loctite (e.g.
243).
• Remove the wheel hub (1) and replace. Ensure that the
feather key is seated correctly.
• Slacken the torsion spring (3) behind this and remove it.
• Pull off the brake linings (4) and replace.
Reassembly takes place in the reverse order.
9.2 Batteries, battery case
