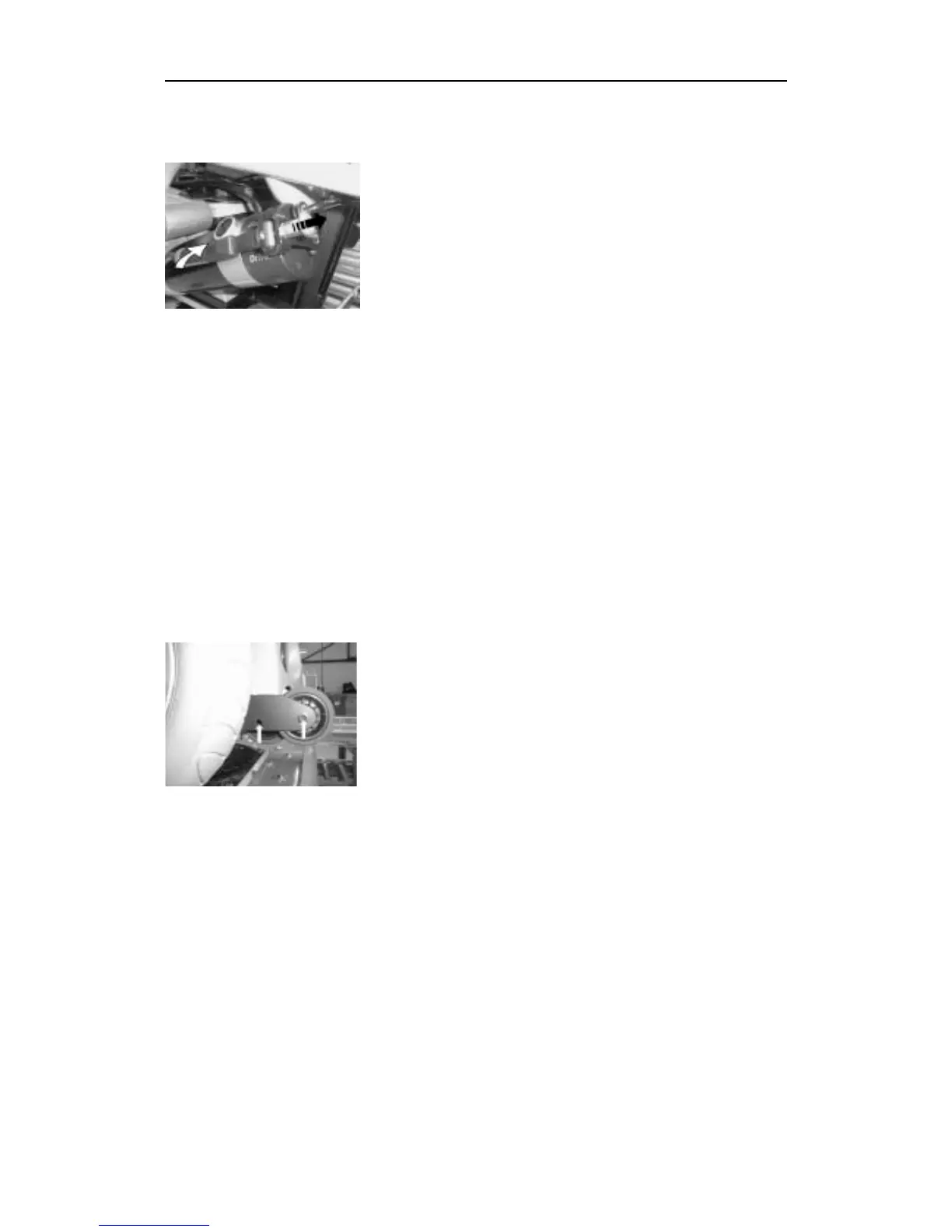

8.4.2 Function check for disengage lever
• Lift up the release lever by loosening the spring-loaded
catch.
• Raise the lever as far as the stop. The wheelchair is now
disengaged and can be pushed.
• Press the lever downwards and release the spring-loaded
catch. Composition the release lever below the carbon
brushes.
• The wheelchair is now in drive mode and should not be
able to be pushed.
• If the disengage does not work, it must be readjusted (see
page 27, chapt. 0?).
Reassembly takes place in the reverse order.
8.4.3 Replacing the support wheels
• Unscrew Allen screw.
• Withdraw support wheels and replace.
• When reassembling, ensure that the spacer bush is seated
correctly (wheel must turn freely).
Reassembly takes place in the reverse order.
