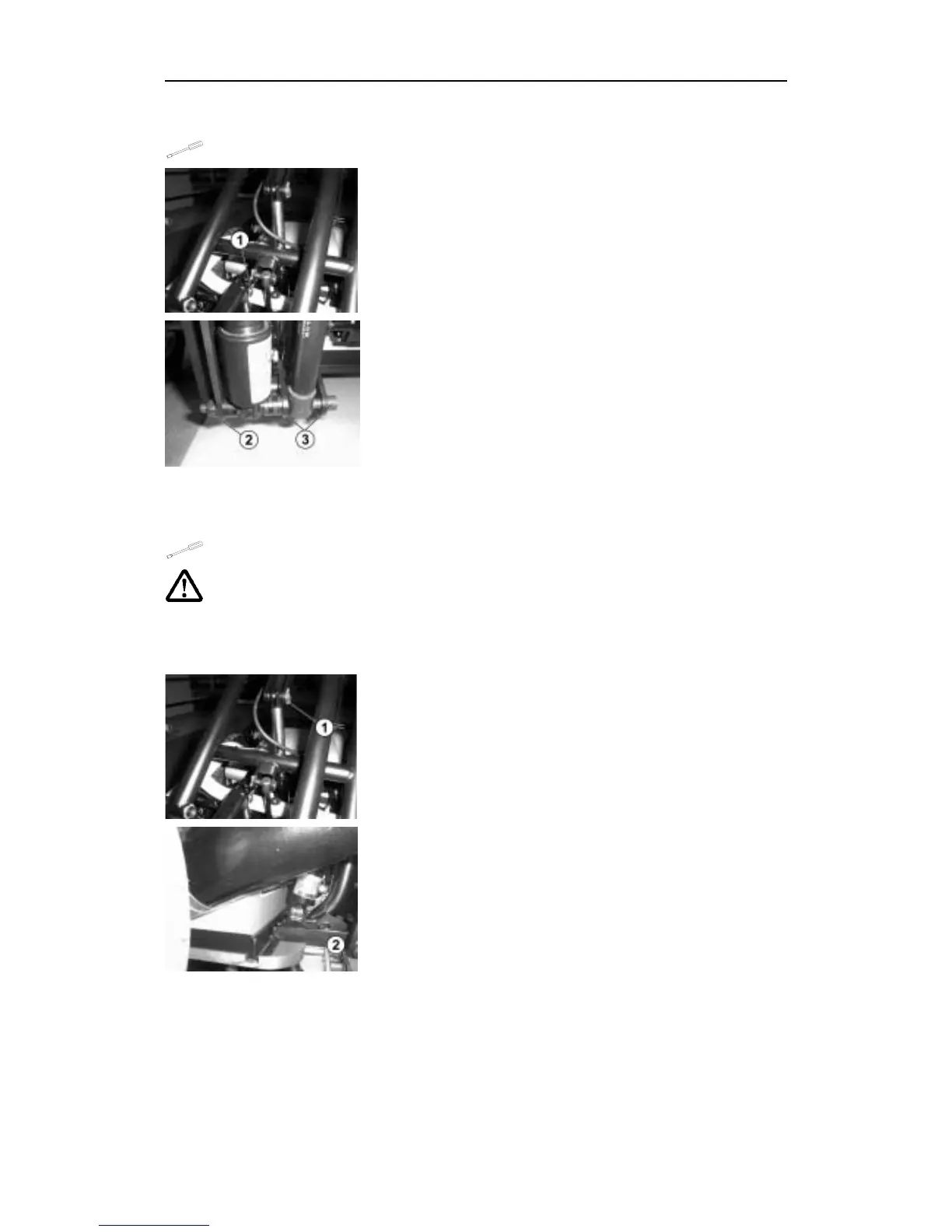

8.2.1 Replacing motor for electrical seat tilting
• Raise lifter (see page 39, chapt. 9.2.2).
• Remove battery cover (see page 39, chapt. 9.2.1).
• Remove the connecting plugs from the CLAM.
• Loosen cable connector (multi-use).
• Lever off locking washer (1) with screwdriver.
• Drive out the bolt.
• Unscrew hexagon cap nut (2).
• Remove the Allen screw and spacer (3).
• Remove seat tilt motor and replace.
Reassembly takes place in the reverse order.
8.2.2 Replacing the electrical lifter motor
Caution:
When the lifter motor is disassembled, the gas pressure spring pushes the system
upwards.
• Raise the lifter if necessary (see page 39, chapt. 9.2.2).
• Loosen the cable holder and withdraw the connecting
plugs from the CLAM.
• Lever off locking washer (1) with screwdriver.
• Drive out the bolt.
• Lever off locking washer (2) with screwdriver.
• Drive out the bolt.
• Remove the lifter motor downwards to the left and
replace.
Reassembly takes place in the reverse order.
