Invacare Storm 3 - 10 Lighting; Front Headlight

Storm³
Service Manual
Page 40 As at:07.03.02
10 Lighting

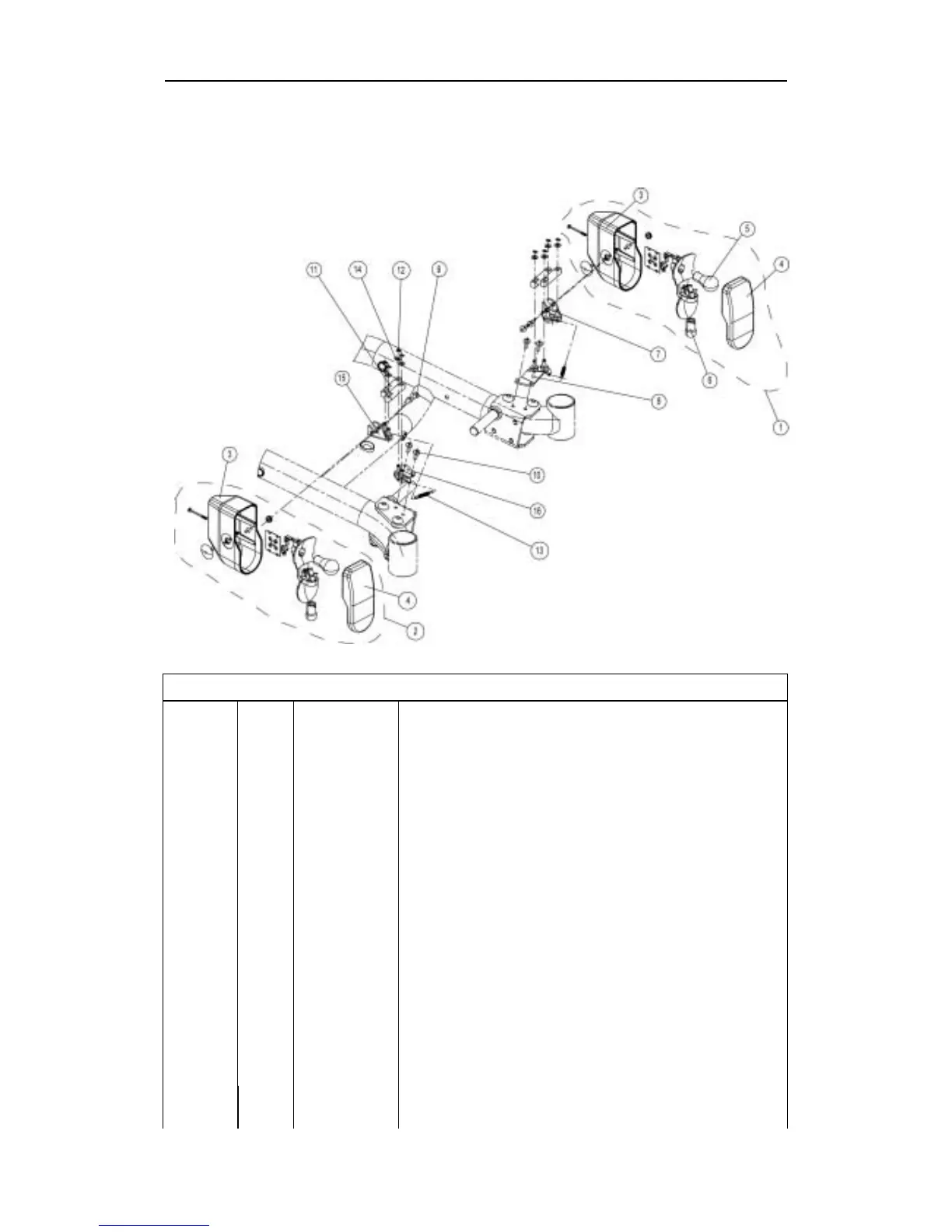

10.1 Front headlight
Pos Qty. Item No./Pcs. Item Description
-
-
1
1
LIGHTING UNIT 24V FRONT FOLDAWAY ASSY.
LIGHTING UNIT 12V TÜV FRONT FOLDAWAY ASSY.
1
1
1
1
1420413
SP 1420431
FRONT HEADLIGHT LH 24V ASSY.
FRONT HEADLIGHT LH 12V ASSY.
2
2
1
1
1420412
SP 1420412
FRONT HEADLIGHT RH 24V ASSY.
FRONT HEADLIGHT RH 24V ASSY.
3 1 1420020 HEADLIGHT HOUSING
4 1 1420019 REFLECTOR GLASS
5
5
1
1
1419271
1423457
LIGHTBULB 24V/21W; YELLOW
LIGHTBULB 12V/21W; YELLOW
6
6
1
1
P31108
1423458
BULB 24V/10W
BULB 12V/10W
- 1 SP1423188 SWIVEL MECHANISM LH ASSY.
7 1 1421772 HEADLIGHT ATTACHMENT LH
8 1 1422837 STOP LH
9 4 D36112 CHEESE HEAD SELF-TAPPING SCREW WITH PHILLIPS
HEAD 4.8 X 16
