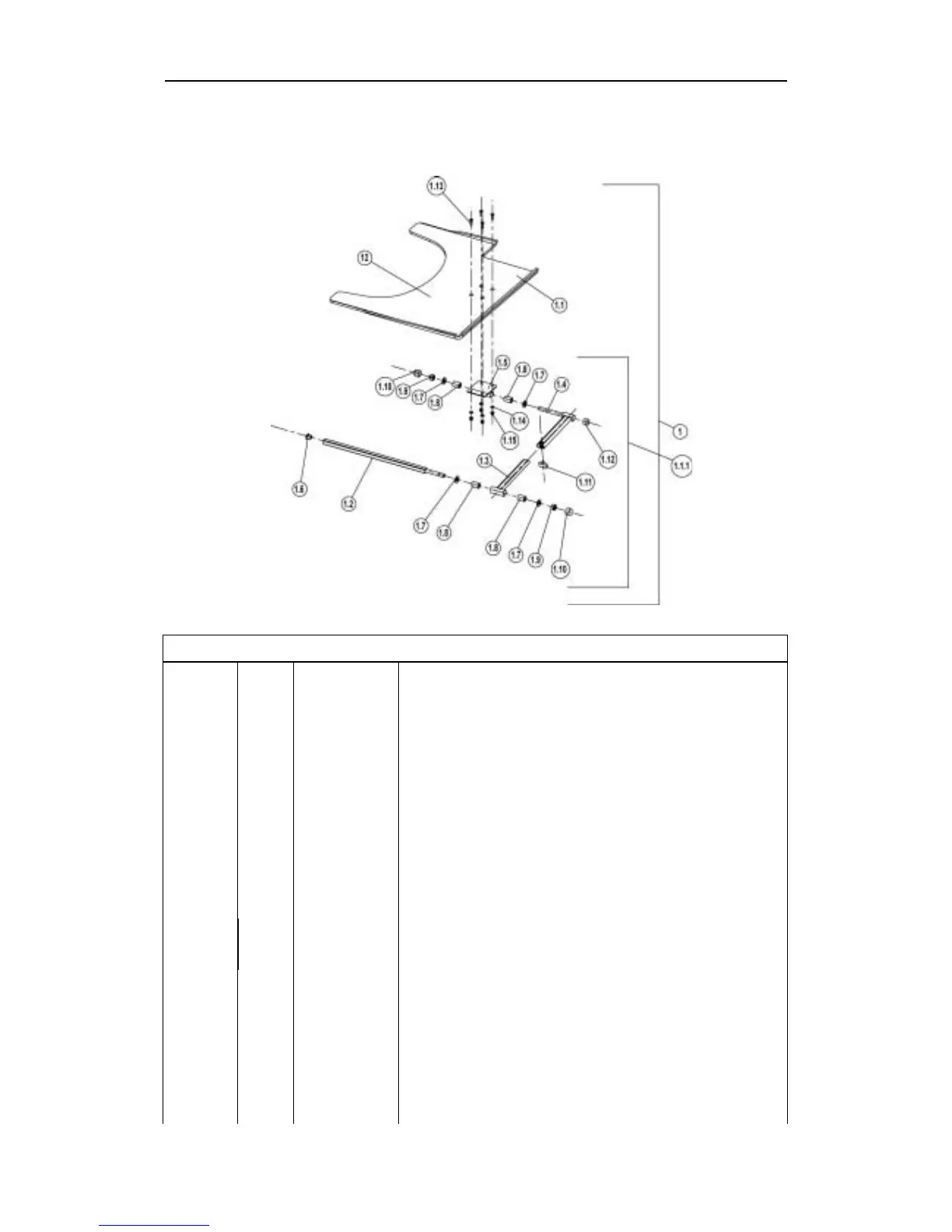

11.2 Remote holder with many different operation capabilities
11.2.1 Tray can be swivelled for operation
Pos Qty. Item No./Pcs. Item Description
1 1 SP1422952 TRAY SWINGAWAY FOR REM. LH CPL.
1 1 SP1422953 TRAY SWINGAWAY FOR REM. RH CPL.
1.1 1 Z177017 TRAY WITH CUT OUT LH; TRANSPARENT
1.1 1 Z177016 TRAY WITH CUT OUT RH; TRANSPARENT
1.1.1 1 SPZ177011 TRAY HOLDER ASSY.
1.2 1 Z177024.00 GUIDE FOR TRAY / CENTRE JOYSTICK; CHROMED
1.3 1 Z17270A.00 SWIVEL ARM; CHROMED
1.4 1 Z17150A.00 SWIVEL ARM EXTENSION; CHROMED
1.5 1 Z17160A.00 TRAY ATTACHMENT; CHROMED
1.6 1 L01055 SLIDER E 15*15
1.7 4 G00104 WASHER 13 X 24 X 2.5
1.8 4 Z17032A LINING RD. 19 X 3.5 X 25
1.9 2 F20106 HEXAGON NUT M12 SELF-LOCKING
1.10 2 L01037 COVER CAP SKS 12 FOR NUT M12
1.11 1 L31001 WING NUT M6 X 10
1.12 1 L01008 SLIDER SL 22
1.13 4 D20127 COUNTERSUNK BOLT WITH PHILLIPS HEAD M6 X 20
1.14 4 G00110 WASHER 6.4 X 12.5 X 1.6
