Service Manual
Storm³
As at: 07.03.02 Page 71
Pos Qty. Item No./Pcs. Item Description
- 1 SP1422923 HEADREST CONTOUR BLUE ASSY.
1 1 1422867 HEADREST UPHOLSTERY CONTOUR BLUE
- 1 SP1422924 HEADREST CONTOUR GREY ASSY.
1 1 1422866 HEADREST UPHOLSTERY CONTOUR GREY
- 1 SP1422925 HEADREST CONTOUR BLACK ASSY.
1 1 1422865 HEADREST UPHOLSTERY CONTOUR BLACK
- 1 SP1422926 HEADREST FLEX BLUE ASSY.
1 1 1422544 HEADREST UPHOLSTERY FLEX BLUE
- 1 SP1423163 HEADREST FLEX GREY ASSY.
1 1 5253011-TR04 HEADREST GREY
2 4 D30197 MACHINE BOLT WITH PHILLIPS HEAD M5 X 12
3 1 5255497 HEADREST HOLDER
4 1 1422914
HEADREST HOLDER FOR STD. SEATING SYSTEM
ASSY.
5 1 1422547 HEADREST HOLDER FOR CONTOUR/FLEX SEATING
SYSTEM ASSY.

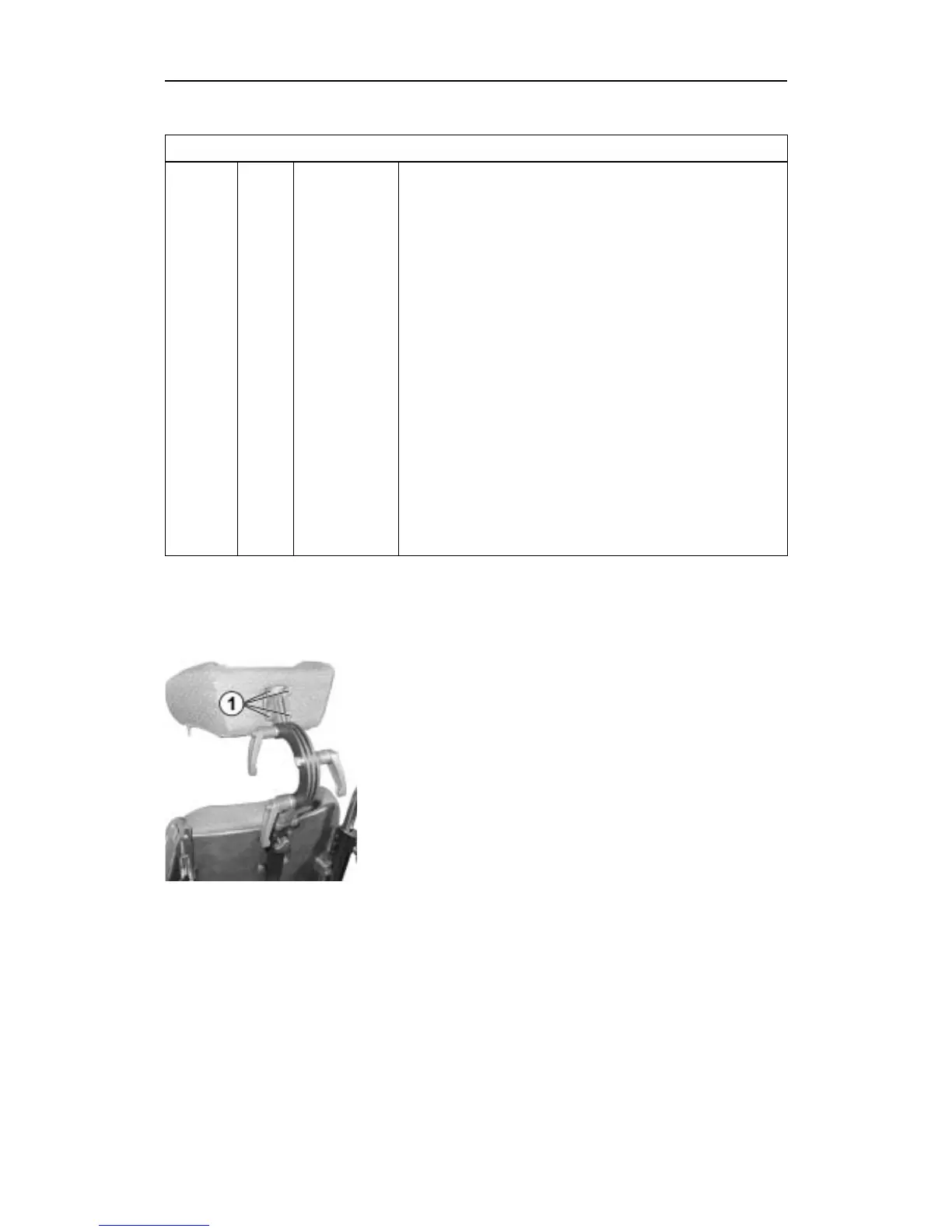

13.5.1 Replacing the headrest shell
• Lever the plastic caps (1) off with a screwdriver.
• Unscrew the Phillips screws beneath this.
• Remove the headrest shell and replace.
Reassembly takes place in the reverse order.
13.5.2 Replacing the headrest arms
