Invacare Storm 3 - Replacing the Footplate; 16 Accessories; Kerb Climber

Service Manual
Storm³
As at: 07.03.02 Page 89

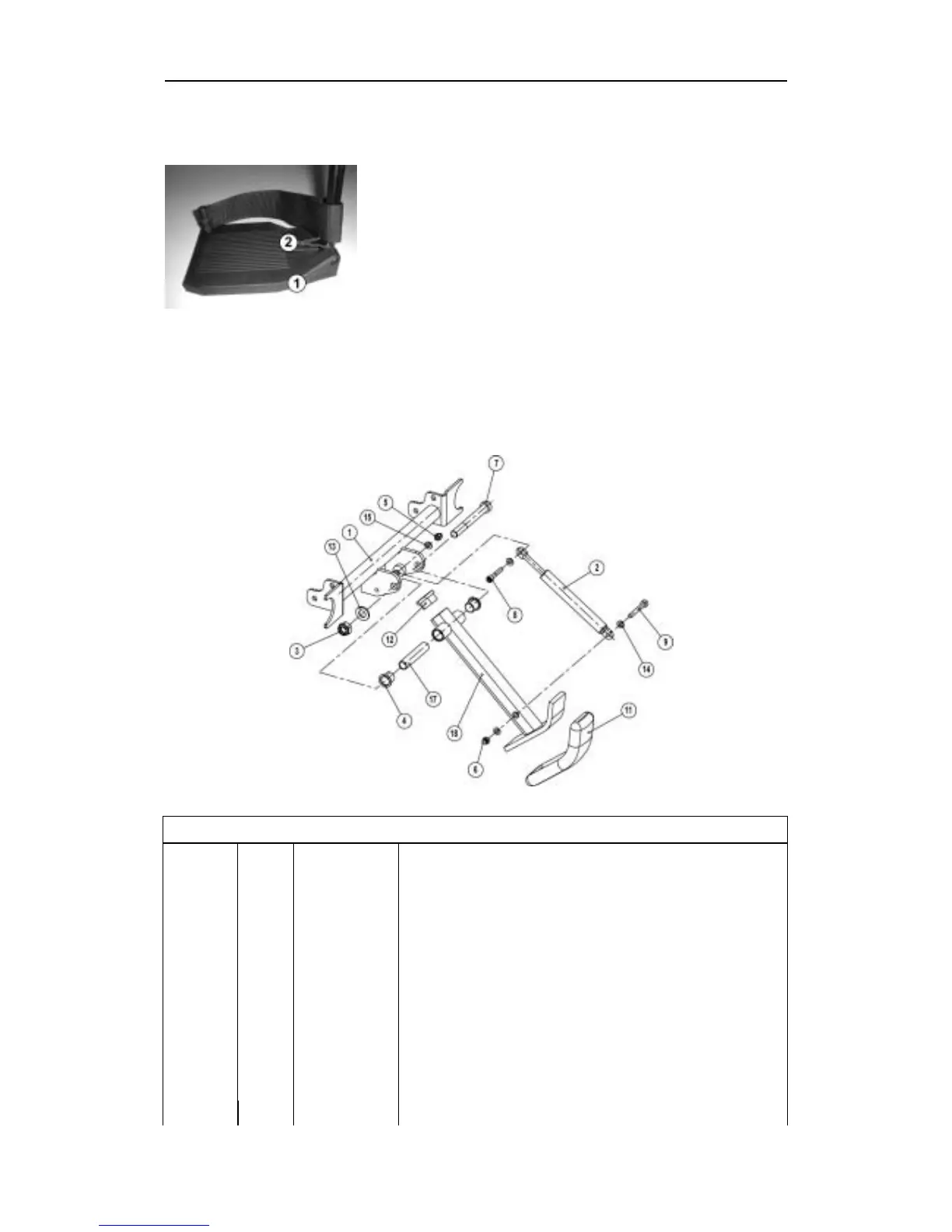

15.1.5 Replacing the footplate
• Unscrew the Allen screw (1).
• Remove the footplate and circular washers (2).
• Replace footplate.
• When reassembling the footplate, ensure that the circular
washer is in the right position (2) (radius towards inside).
Reassembly takes place in the reverse order.
16 Accessories
16.1 Kerb climber
Pos Qty. Item No./Pcs. Item Description
- 1 SP1418452 KERB CLIMBER ASSY.
1 1 1418451-7021 KERB CLIMBER ATTACHMENT
2 1 N10499 GAS-FILLED SPRING
3 1 F20106 HEXAGON NUT M12 SELF-LOCKING
4 2 N02201 BUSH BB 1517 DU
5 1 F60106 HEXAGON CAP NUT M6 SELF-LOCKING
6 1 F60107 HEXAGON CAP NUT M6 SELF-LOCKING
7 1 D50094 MACHINE SCREW WITH ALLEN KEY HEAD M6 X 100
8 1 D50117 MACHINE SCREW WITH ALLEN KEY HEAD M6 X 35
9 1 D50122 MACHINE SCREW WITH ALLEN KEY HEAD M6 X 45
10 4 D60178 HEXAGON BOLT M8 X 12
