Note:
Adjust the disengage lever after service work and check for correct functioning.
8.4.1 Replacing the disengage lever

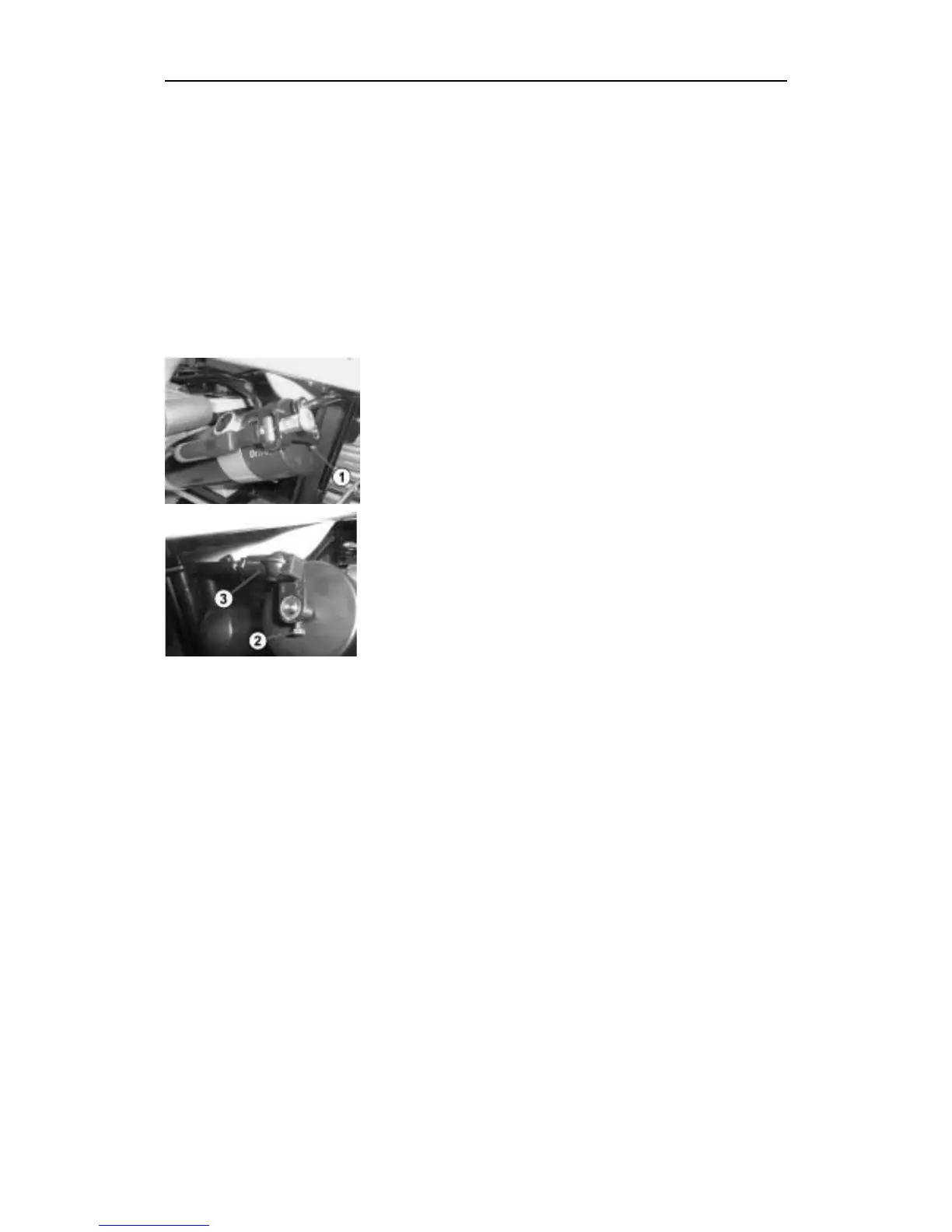

• Open the safety lock and lever off the Springfix ball seat
(3).
• Loosen both fixing screws on the lever (1. 2).
• Lever both levers off the motors.
• Loosen the Springfix ball seat lock nut when reassembling,
and lever off the ball seat safety lock.
• Both motors must be engaged. The wheelchair must not
be able to be pushed.
• Push both adjustment levers onto the respective shafts.
• Secure both fixing screws with Loctite.
• Screw on the lever with the handle (see illustration above)
then screw on the left-hand lever.
• Both adjustment levers should lean to the right when
viewed in the direction of travel.
• Turn the ball seat (3) until it is engaged with the ball joint.
• Press on the ball seat and close the safety lock.
• Tighten the lock nut.
"
