5 1 1419331 LIGHTING HOUSING CLEAR LH
5 1 1419332 LIGHTING HOUSING CLEAR RH
5 1 1421738 LIGHTING HOUSING SILVER LH
5 1 1421739 LIGHTING HOUSING SILVER RH

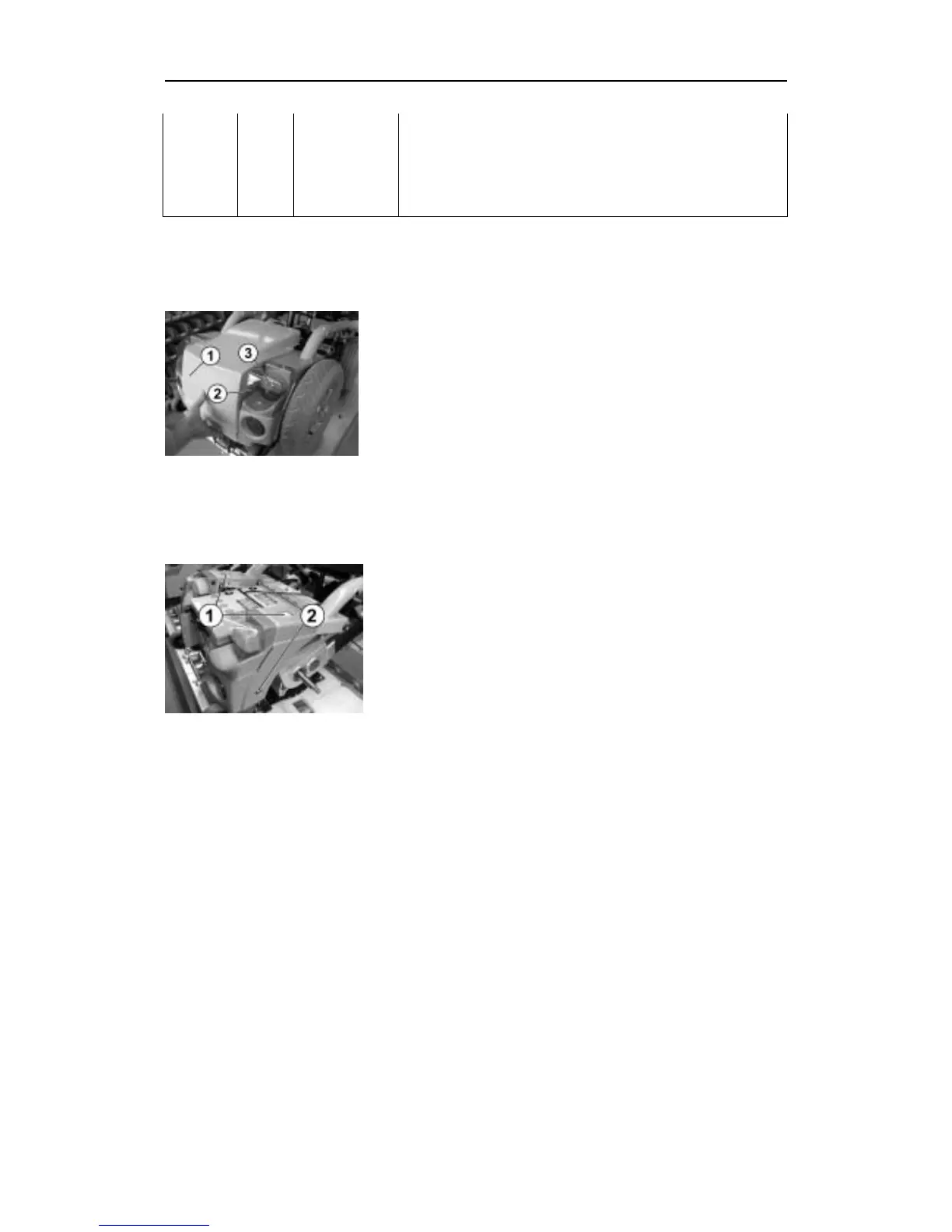

10.2.1 Replacing bulbs
• Raise the lifter (if batteries or lifter are defective see page
39, chapt. 9.2.2)
• Remove battery cover (1) (see page 39, chapt. 9.2.1).
• Unscrew the lamp glass (2) from inside and remove.
• Unscrew the black light cap (3 and remove).
• Replace the bulb
10.2.2 Replacing back light supports or back lights
• Raise the lifter (if batteries or lifter are defective see page
39, chapt. 9.2.2).
• Remove taxi strap (1) if necessary by unscrewing all four
screws.
• Remove battery cover (see page 39, chapt. 9.2.1).
• Pull the back light cable below the seat out of the lighting
distributor board.
• Unscrew the equipment rack (see page 54, chapt. 11.4.1).
• Unscrew the back light support (2).
• Replace complete back light supports or back lights.
Reassembly takes place in the reverse order.
Check lighting for correct functioning.
