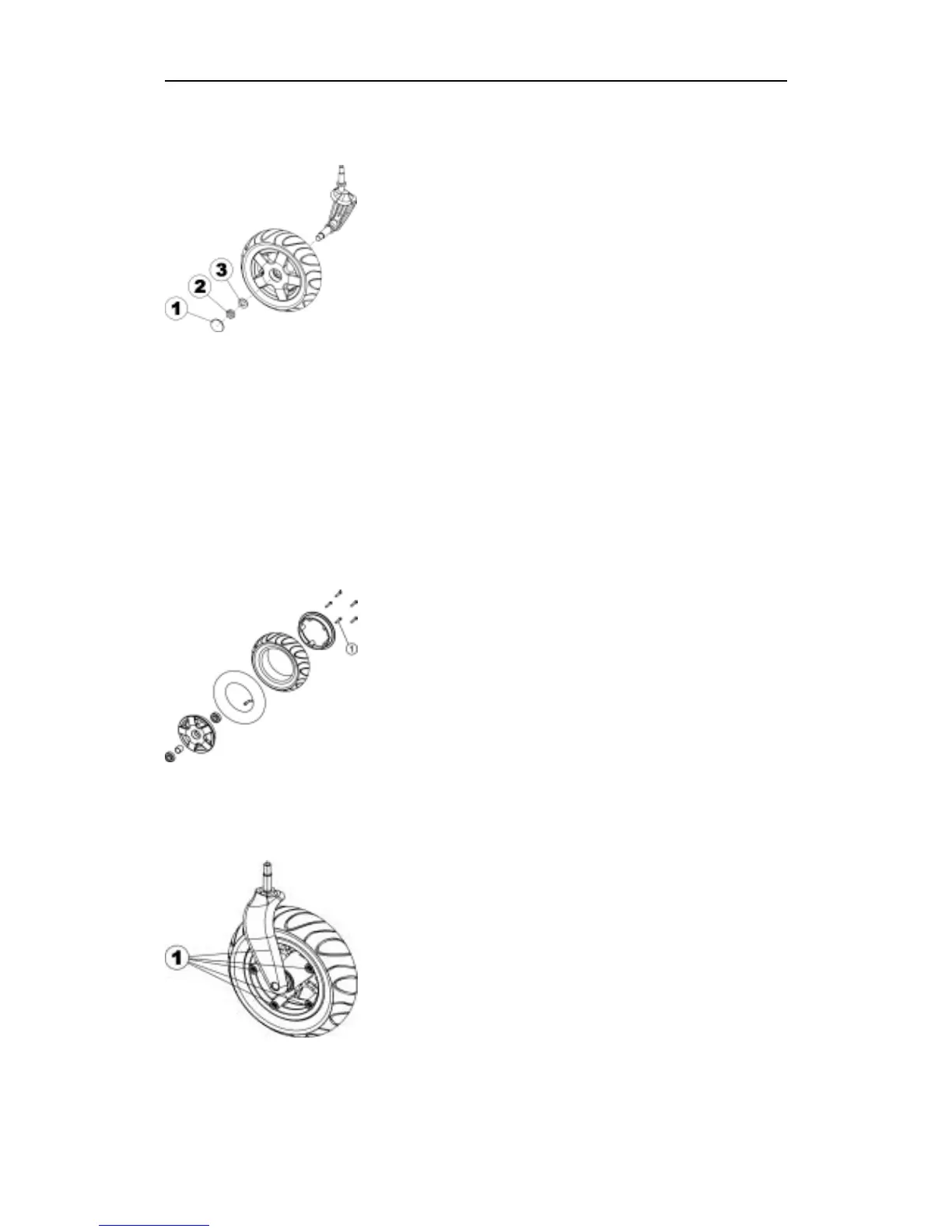

9.1.1 Replacing castor wheel / front wheel
• Lever off cap (1) with screwdriver.
• Unscrew nut (2).
• Remove washer.
• Remove wheel.
• When reassembling, secure the nut using Loctite (e.g.
243).
Caution:
Risk of accidents: Before the next stage you must remove the valve cap and
depressurise the tyre by pushing in the valve seat. When working with puncture-proof
tyres, ensure that the tyre sealing fluid does not run out (valve should be pointing
upwards)
Red valve caps indicate puncture-proof tyres - black valve caps indicate pneumatic
tyres.
9.1.2 Replacing wheel rim halves
• Remove the front wheel (see above).
• Unscrew all Allen screws (1) and remove both wheel rim
halves from the tyre.
• Remove wheel rim halves and replace.
9.1.3 Repairing / replacing tyres or inner tube
• Remove the front wheel (see page 33, chapt. 9.1.1).
• Unscrew all Allen screws (1).
• Remove the tyre with inner tube from the wheel rim halves.
• Repair inner tube and replace, or insert new.
Reassembly takes place in the reverse order.
