Invacare Storm 3 - Replacing the Gas Pressure Spring for Lifter Support

Storm³
Service Manual
Page 22 As at:07.03.02

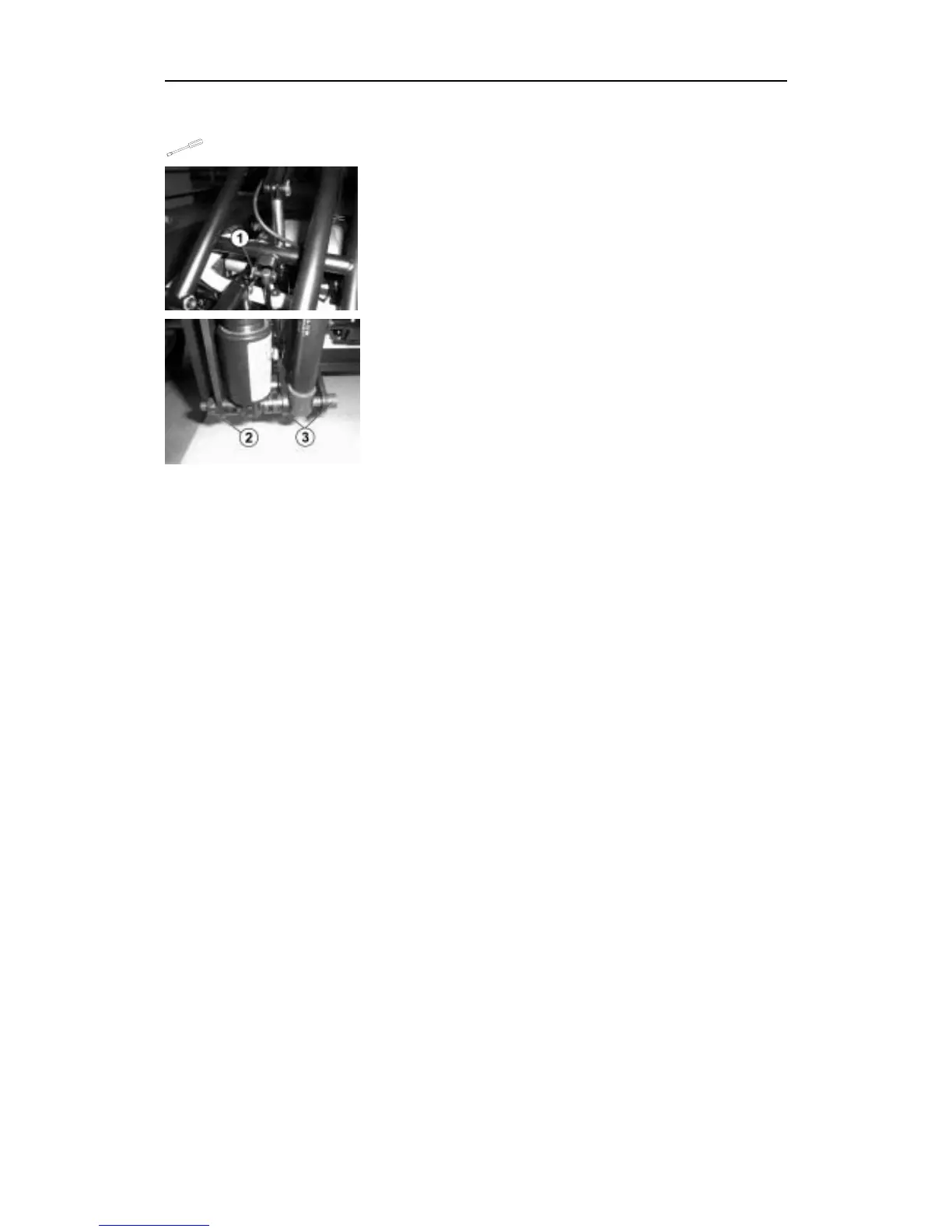

8.2.3 Replacing the gas pressure spring for lifter support
• Raise the lifter if necessary (see page 39, chapt. 9.2.2).
• Lever off locking washer (1) with screwdriver.
• Drive out the bolt.
• Unscrew hexagon cap nut (2).
• Remove the Allen screw and spacer (3).
• Remove gas pressure spring and replace.
Reassembly takes place in the reverse order.
