Storm³
Service Manual
Page 30 As at:07.03.02

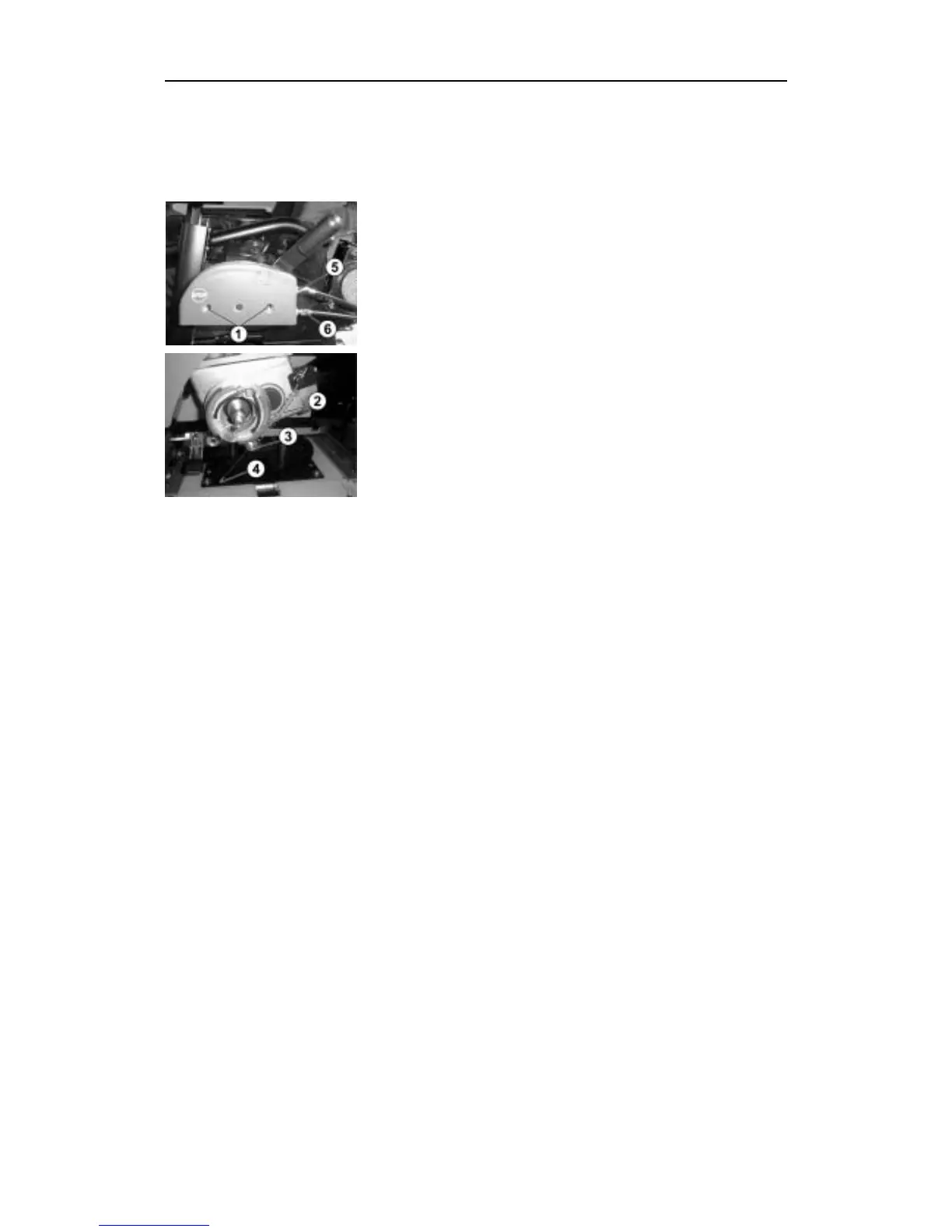

8.5.1 Replacing wheel lock / Bowden cable
• Dismantle the drive wheel on the side where the brake
lever is(see page 36, chapt. 9.1.7).
• Loosen the clamping screw (3) on the brake anchor plate.
• Cut off the Bowden cable inner end cap (4) with oblique
pliers.
• Dismantle the Bowden cable inner and put out of the
brake housing (remove spring).
• Unscrew both Phillips screws (1) out of the brake housing.
• Remove the brake housing.
• When reassembling, thread the Bowden cable inner so
that it is fed into the Bowden cable sheath centrally over
the roller.
• Thread the Bowden cable inner in the clamping screw (3)
through the spring (2).
• Pretension the clamping lever.
• Press on the end cap (4) and crimp in place with the
oblique pliers.
• Adjust the brakes by loosening the lock nut (5) and the
regulating screw (6) on the brake housing.
