Storm³
Service Manual
Page 90 As at:07.03.02
11 1 B11037B CONTACT SHOE
12 1 L01039 CAP COVER F 38 X 20
13 1 G00104 WASHER 13 X 24 X 2.5
14 2 G00115 WASHER 6.4 X 12.5 X 1.6
15 2 G00110 WASHER 6.4 X 12.5 X 1.6
16 4 G00107 WASHER 8.4 X 17 X 1.6
17 1 F310060 SPACER LINING
18 1 F310062.P28 KERB CLIMBER; BLACK MATT (EN-200 J)

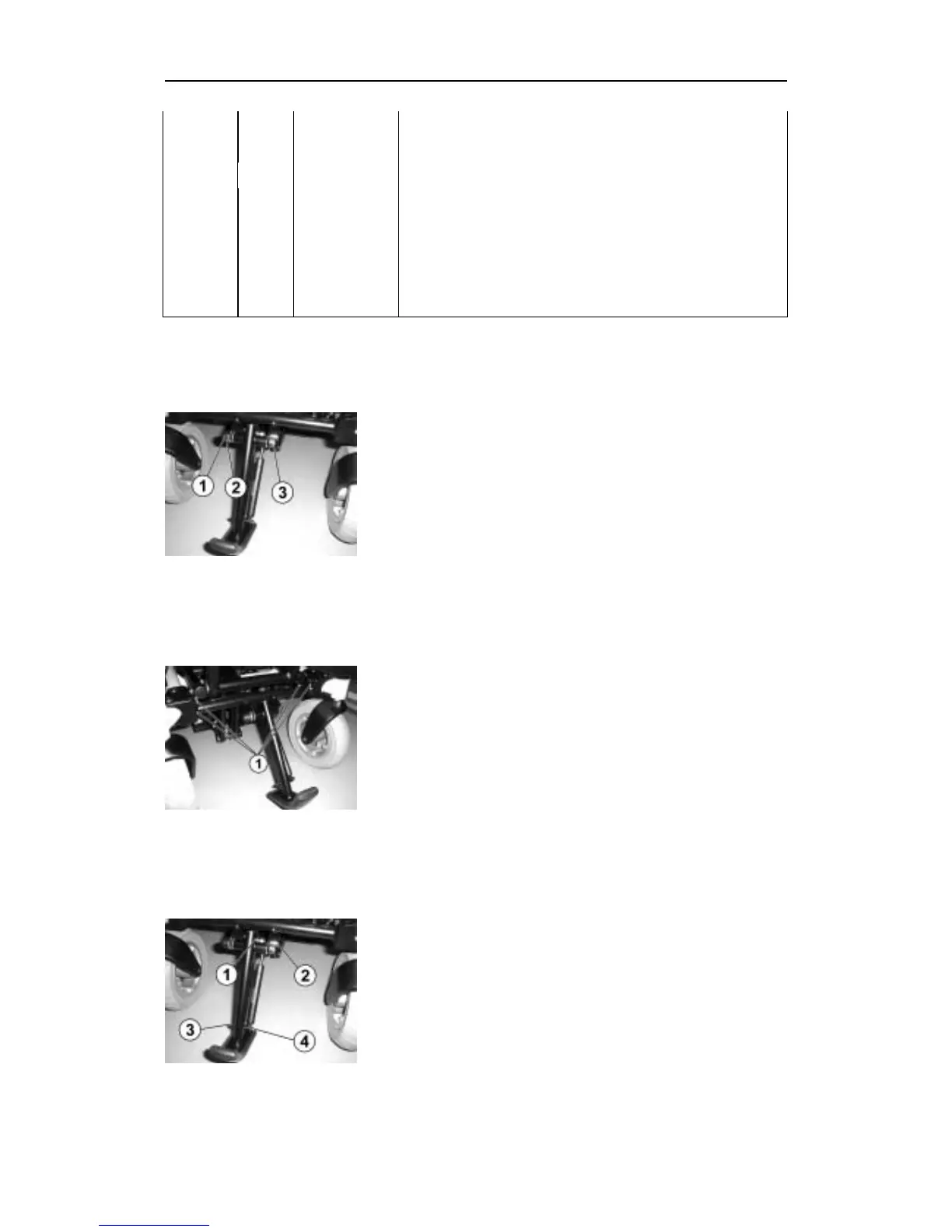

16.1.1 Replacing the kerb climber
• Lever the plastic cap (1) off with a screwdriver.
• Hold the hex nut (2) below this secure.
• Unscrew the Allen screw (3).
• Remove the kerb climber and replace.
16.1.2 Replacing the kerb climber assy.
• Unscrew all four hex bolts (1).
• Remove the kerb climber attachment and replace.
16.1.3 Replacing the gas pressure springs
• Hold the hex nut (1) secure and unscrew the Allen screw
(2).
• Hold the hex nut (3) secure and unscrew the Allen screw
(4).
• Remove the gas pressure spring and replace.
Reassembly takes place in the reverse order.
