Storm³
Service Manual
Page 56 As at:07.03.02
CAUTION:
seat adjustments such as seat angle, seat depth, backrest angle and distance
between armrests should be individually adjusted to suit the user. These settings
should therefore be retained when carrying out service work.

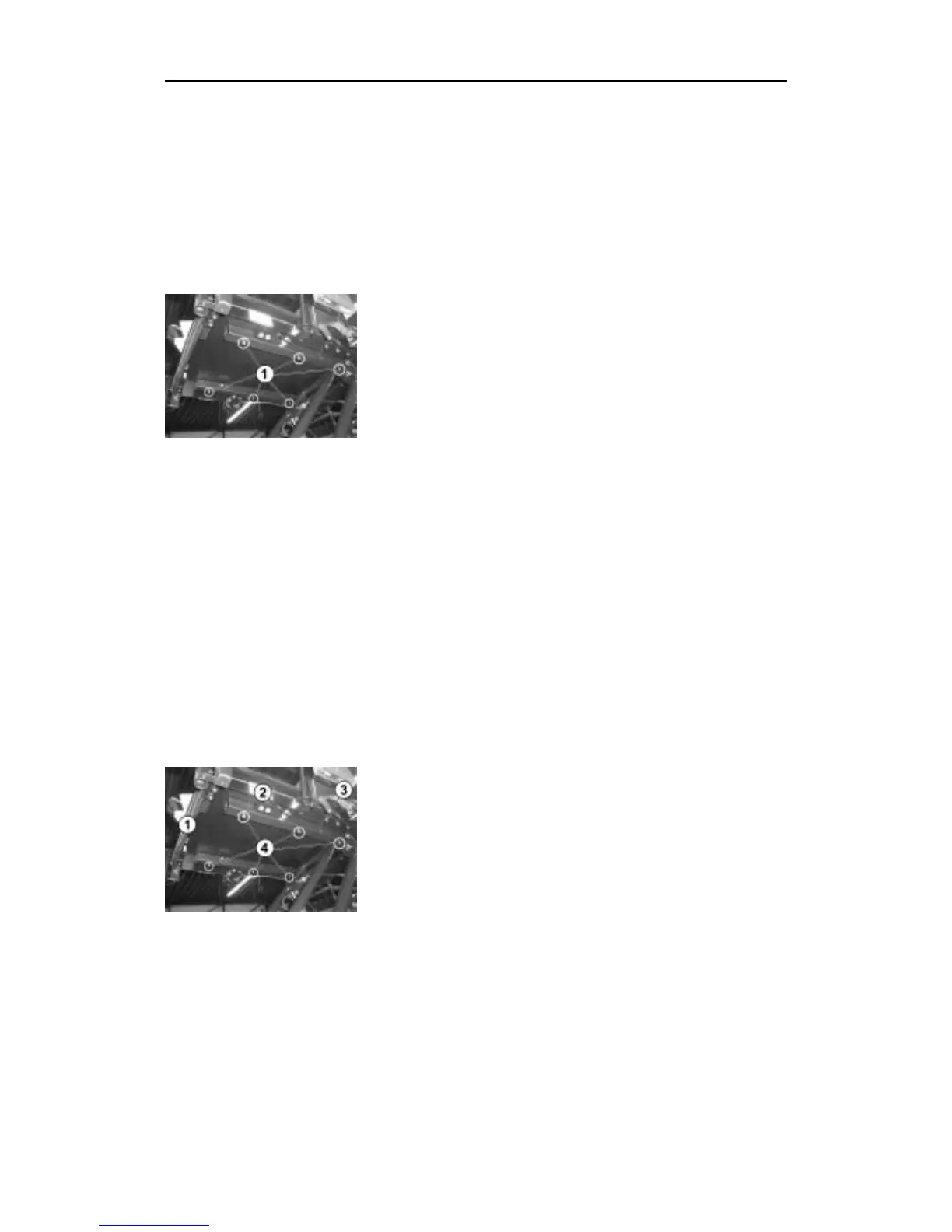

12.1.1 Replacing the seat
• Remove seat and backrest cushions (legrests if
necessary).
• Raise lifter.
• Pull the BUS cable out of the remote.
• If a wheel lock is fitted, remove the side panel.
• Unscrew the hex nuts (1).
• Remove seat unit and replace.
Reassembly takes place in the reverse order.
12.1.2 Replacing the seat plate
• Remove the seat and backrest cushions.
• Raise lifter.
• Pull the BUS cable out of the remote.
• Unscrew the foot rest adapter (1) (see page 74, chapt.
14.1.1).
• Unscrew the side panel mounting (2) (see page 62, chapt.
12.3.4).
• Unscrew the fitting attachment (3).
• Unscrew the hex nuts (4).
• Remove seat plate and replace.
Reassembly takes place in the reverse order.
