Service Manual
Storm³
As at: 07.03.02 Page 45

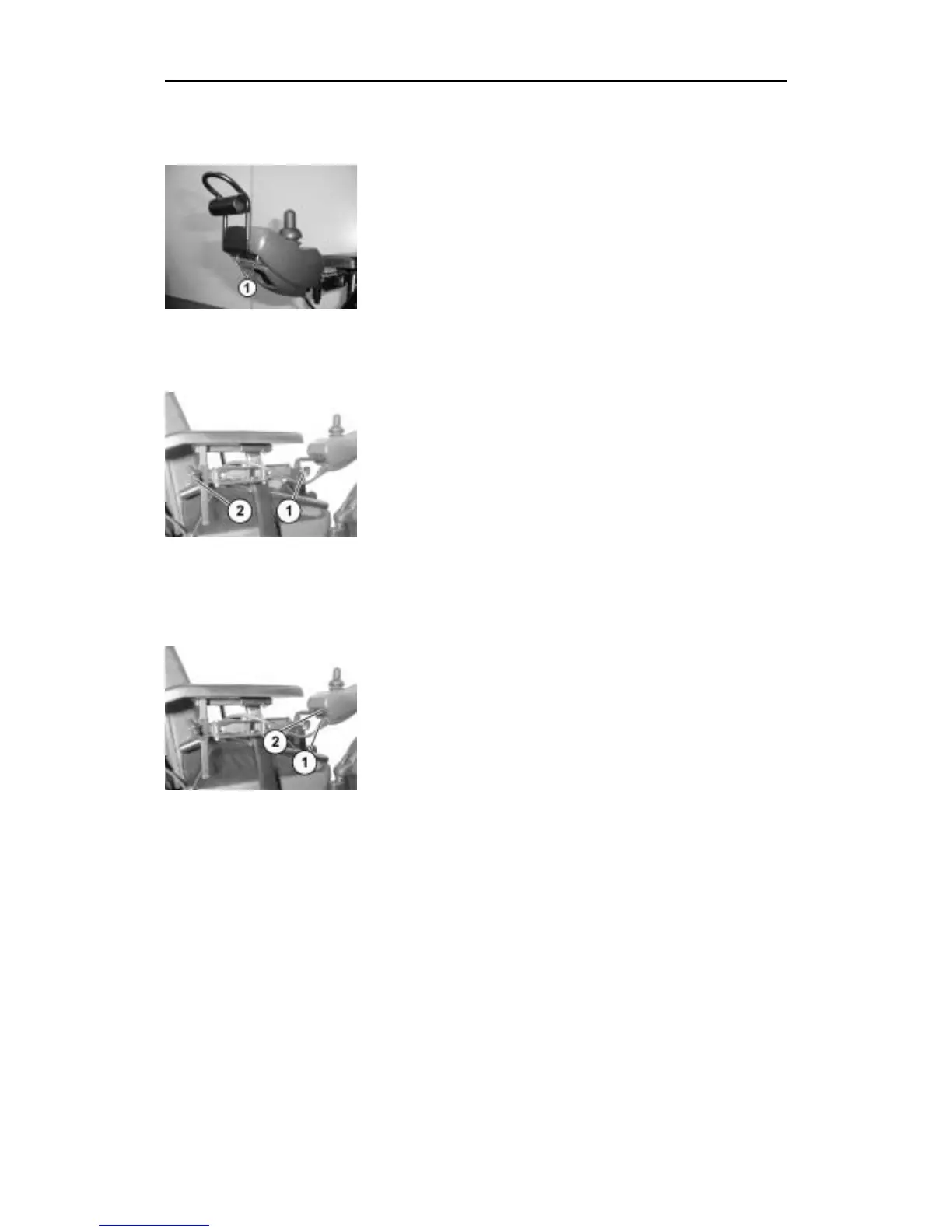

11.1.2 Replacing the tachometer holder or hand protector
• Unscrew cheese head screws (1).
• Remove tachometer holder or hand protector and replace.
11.1.3 Replacing remote holder (height-adjustable, hinged)
• Loosen wing nut (1) on remote.
• Pull the remote out upwards.
• Loosen wing nut (2) on remote holder.
• Pull the remote holder out downwards.
11.1.4 Replacing the remote
• If possible, use the Wizard Software to save the drive
programs.
• Pull out the BUS cable (1) "remote – battery – drive unit“
on the remote.
• Unscrew Machine screws (2).
• Remove remote.
Reassembly takes place in the reverse order.
Functional check:
A functional check must be carried out after any service work on the remote.
CAUTION:
Do not reverse the connection plug between power module – drive unit left or
right. If the connection is made the wrong way round the wheelchair will drive in
the opposite direction (risk of accident).
