Invacare Storm 3 - Replacing the Interlock; Replacing the Footrest Hanger, Press Cone

Storm³
Service Manual
Page 76 As at:07.03.02
13 2 Z173188 PRESSURE CONE
14 1 J10096 STRAIGHT PIN RD. 5 X 32; DIN-7
15 3 J10097 STRAIGHT PIN RD. 8 X 40; DIN-7
16 1 Z173178 TENSION SPRING

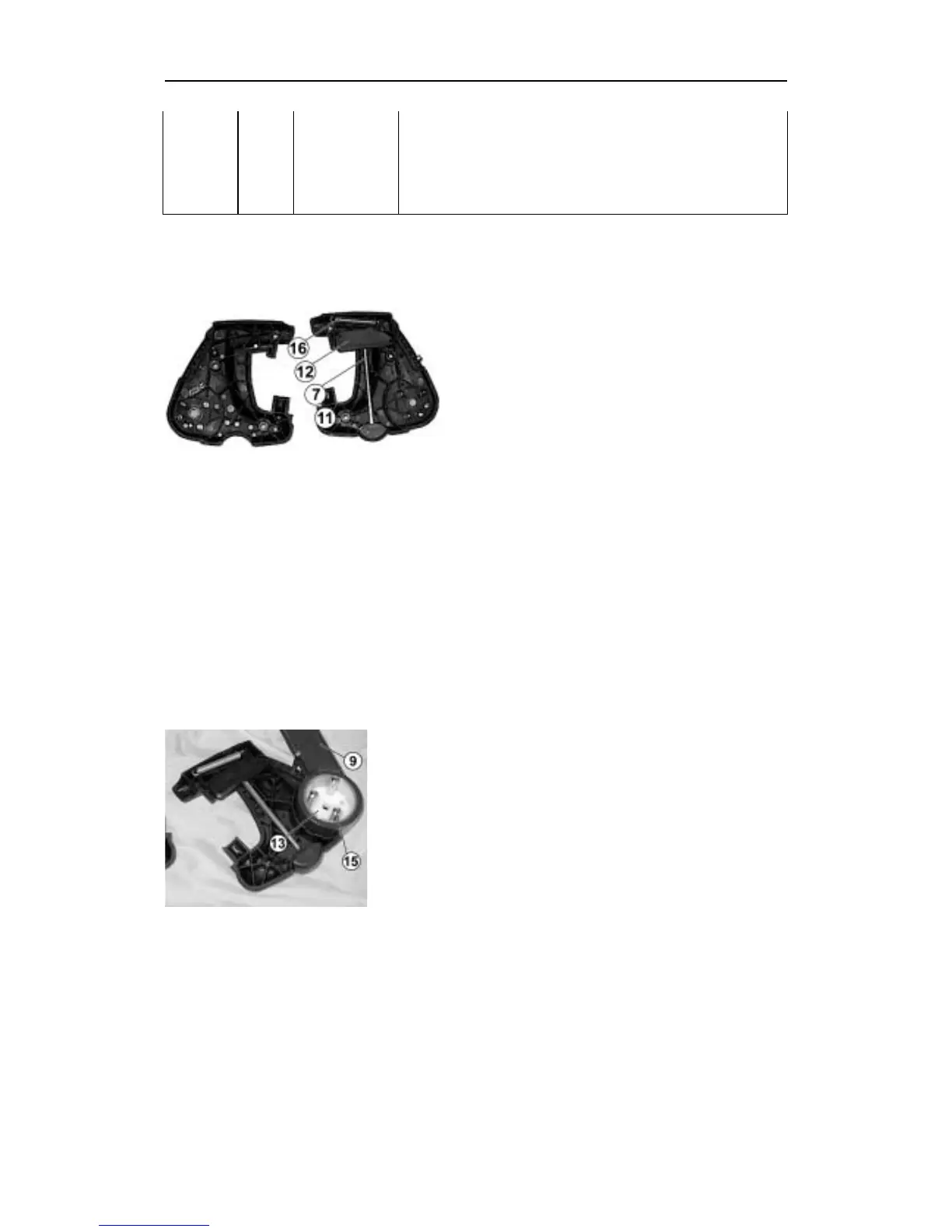

14.2.1 Replacing the interlock
Always compare the position numbers with the
appropriate drawings!
• Unscrew cylinder head screw (5), hex nut (2).
• Unscrew cylinder-head screw (3) and hex nut
(1).
• Remove footrest hanger shell (8).
• Replace the plunger rod (10), release button
(11), locking lever (12) or tension spring (16).
• Replace footrest hanger shells (7. 8) if
necessary.
14.2.2 Replacing the footrest hanger, press cone
• Open the footrest hanger shells (see page 76, chapt.
14.2.1).
• Withdraw straight pins (15).
• Remove pressure cone (2x 13).
• Replace the footrest hanger (9) or cone (13).
Reassembly takes place in the reverse order.
