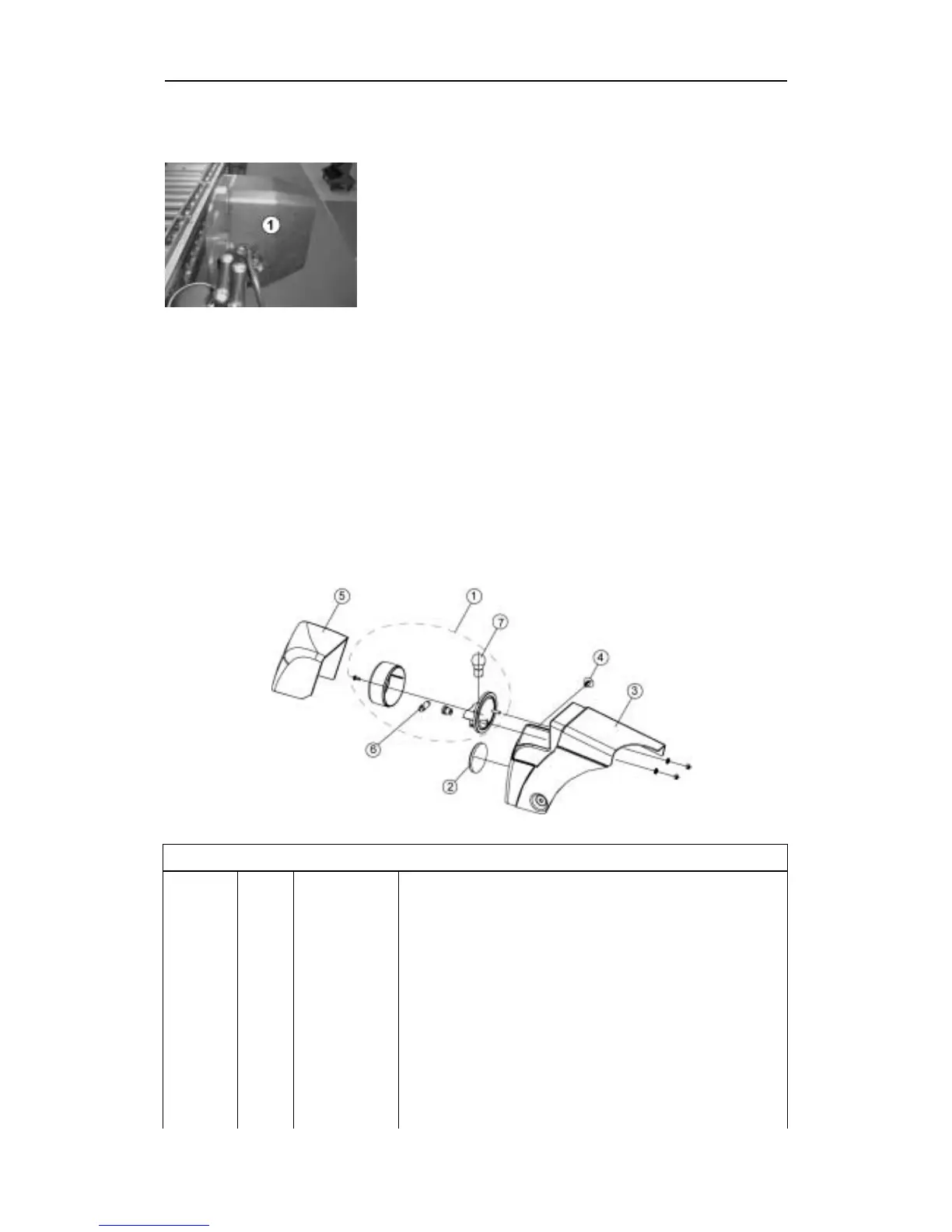

10.1.3 Replacing headlight
• Pull the headlight cable below the seat out of the lighting
distributor board.
• Unscrew the Phillips screw (1) out of the headlight
attachment.
• Remove headlight and replace.
Reassembly takes place in the reverse order.
Check lighting for correct functioning.
Caution:
After a new headlight has been fitted, it must be adjusted to suit road conditions.
10.2 Back lights
Pos Qty. Item No./Pcs. Item Description
1 2 1419935 BACK LIGHT 24V ASSY.
6 1 P31191 BULB 24V/5W (SOFITTE)
7 1 1419271 LIGHTBULB 24V/21W; YELLOW
1 2 SP1419935 BACK LIGHT 12V ASSY.
6 1 1423459 BULB 12V/5W (SOFITTE)
7 1 1423457 BULB 12V/21W, YELLOW
2 2 1419274 REFLECTOR RED
3 1 1419333 BACK LIGHT SUPPORT LH
3 1 1419334 BACK LIGHT SUPPORT RH
4 3 1419337 SCREW-IN RIVET
