Invacare Storm 3 - Replacing the ACS Operation Box for Attendant (Switchable); Replacing the ACS Joystick (Switchable); ACS Chin Control

Storm³
Service Manual
Page 48 As at:07.03.02

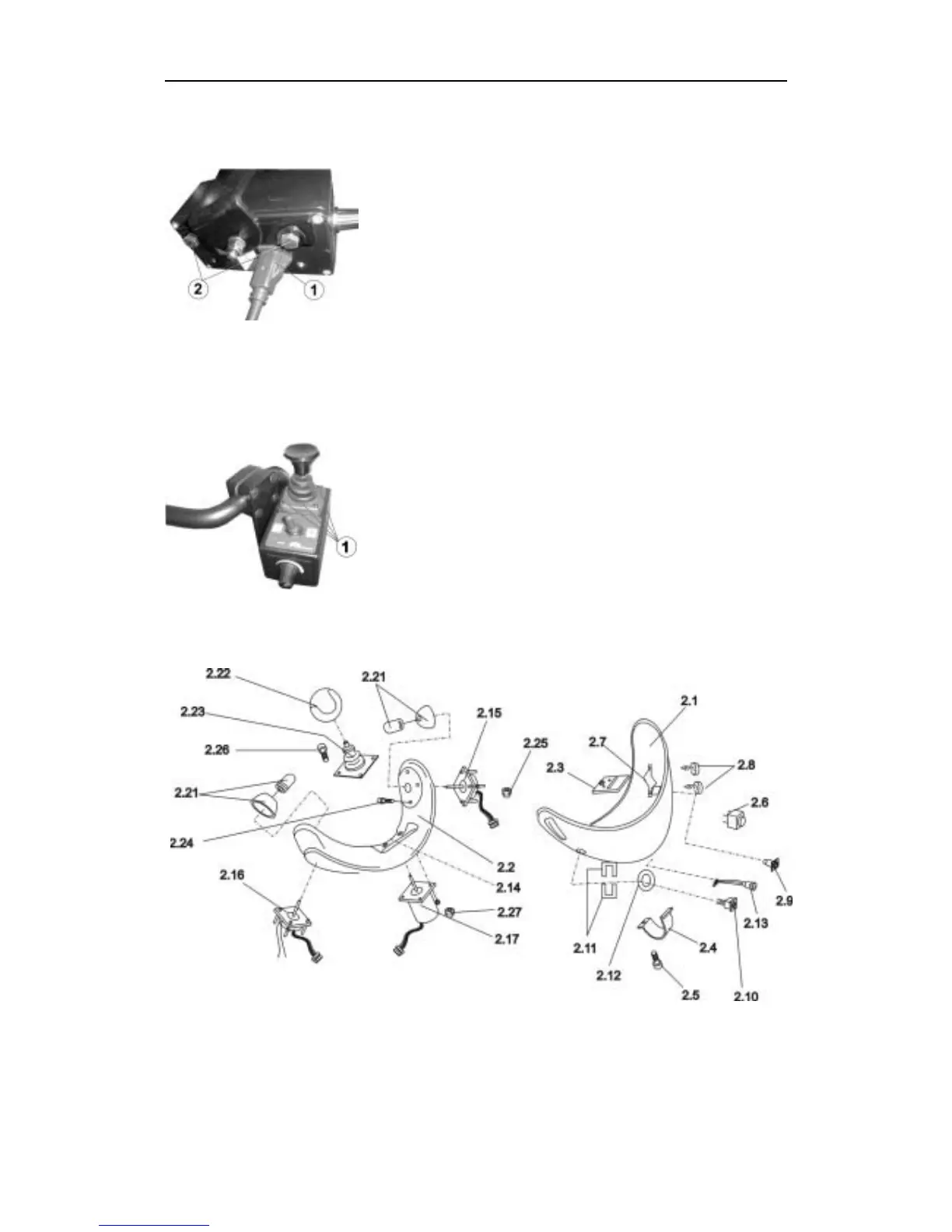

11.2.4 Replacing the ACS operation box for attendant (switchable)
(view from below)
• Remove the BUS connector plug (1) .
• Unscrew the hex nuts (2).
• Remove operation box and replace.
11.2.5 Replacing the ACS joystick (switchable)
• Unscrew the square socket screws (1).
• Pull the joystick out and withdraw the connector plug.
• Remove joystick and replace.
Reassembly takes place in the reverse order.
11.2.6 ACS chin control
