Invacare Storm 3 - Angle-Adjustable Footrests

Storm³
Service Manual
Page 86 As at:07.03.02

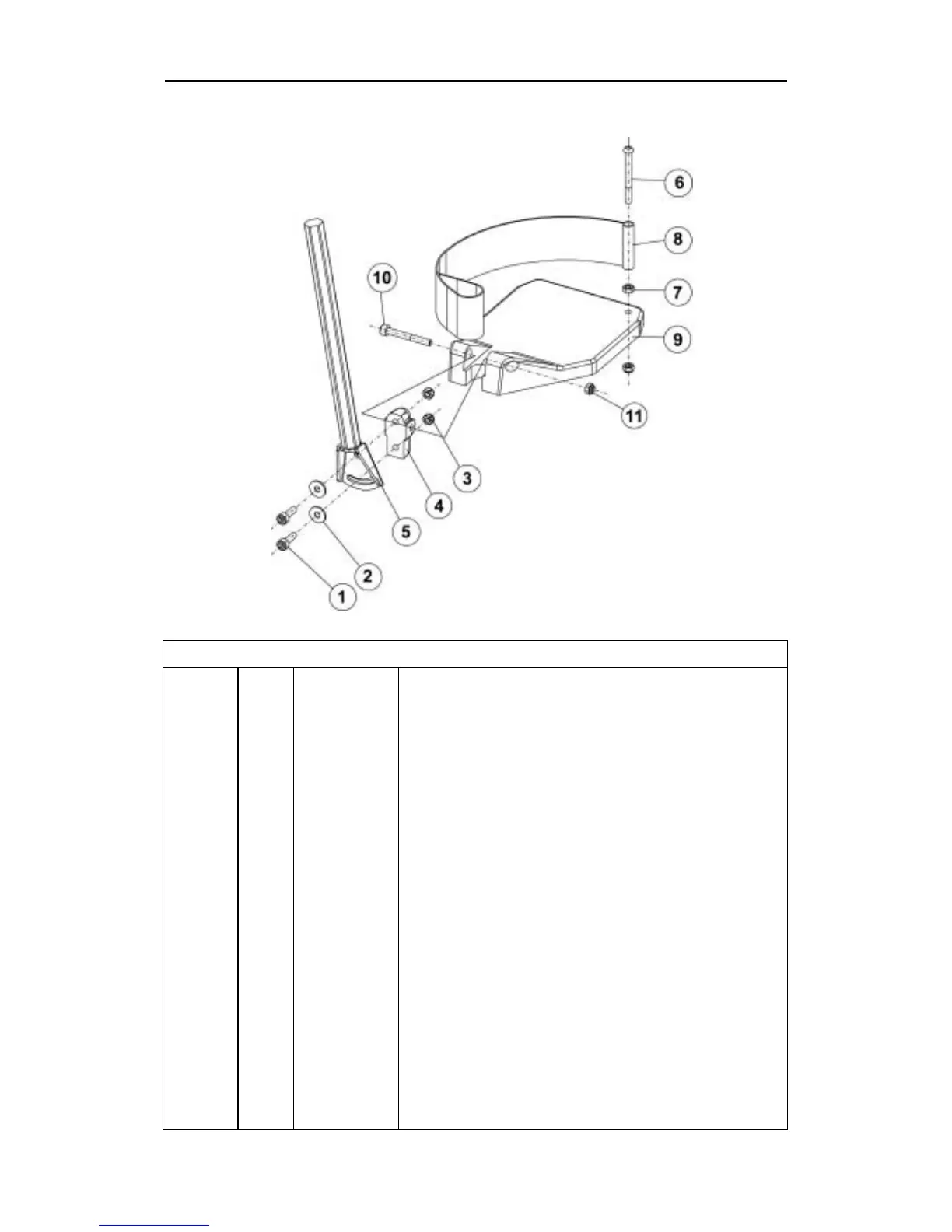

15.1 Angle-adjustable footrests
Pos Qty. Item No./Pcs. Item Description
- 1 SP1421664 FOOTREST LOWER PART ANGLE-ADJ. RH CPL.
- 1 SP1421665 FOOTREST LOWER PART ANGLE-ADJ. LH CPL.
- 1 SP1423203 FOOTPLATE TUBE ANGLE-ADJUSTABLE RH ASSY.
- 1 SP1423204 FOOTPLATE TUBE ANGLE-ADJUSTABLE LH ASSY.
1 2 D50049 MACHINE SCREW WITH ALLEN KEY HEAD M6 X 20
2 2 G10105 WASHER 6.4 DIN 9021
3 2 F00103 HEXAGON NUT M6
4 1 Z174147.79 FOOTPLATE RECEPTACLE
5 1 1419715-0001 FOOTPLATE TUBE ANGLE-ADJUSTABLE RH
- 1 1419714-0001 FOOTPLATE TUBE ANGLE-ADJUSTABLE LH
- 1 SP1423202 HEEL STRAP CPL.
6 1 0029-40516 BOLT M6 X 60
7 2 F00103 HEXAGON NUT M6
8 1 B273011 HEEL BAND
9 1 0572-04449 FOOTPLATE RH; BLACK
- 1 0572-04435 FOOTPLATE LH; BLACK
10 1 D50114 MACHINE SCREW WITH ALLEN KEY HEAD M6 X 50
11 1 F20109 HEXAGON NUT M6 SELF-LOCKING
