Storm³
Service Manual
Page 26 As at:07.03.02
• Unscrew plastic cap (1).
• Lever the carbon brushes out with a screwdriver.
• Replace carbon brushes.
Reassembly takes place in the reverse order.

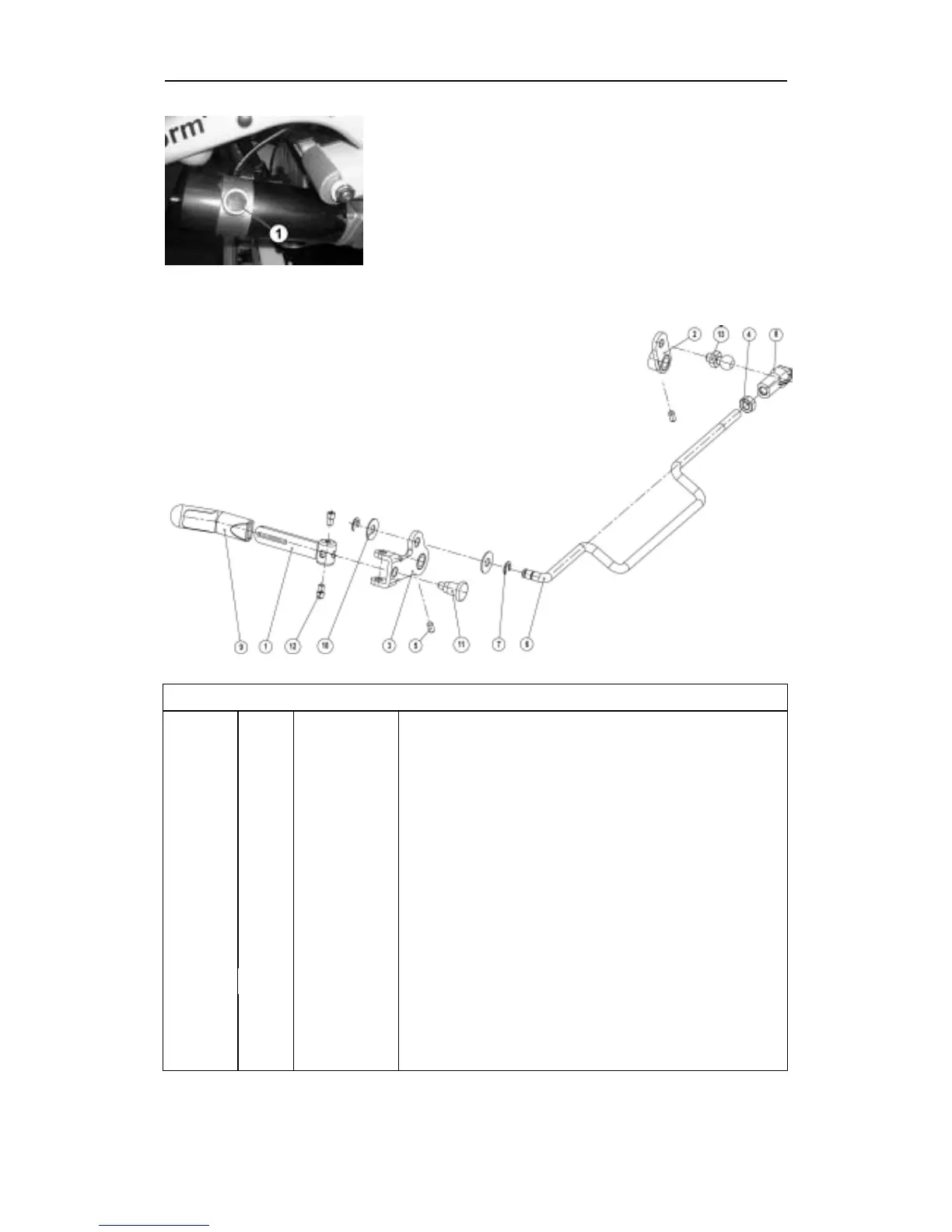

8.4 Disengage lever
Pos Qty. Item No./Pcs. Item Description
- 1 1420009 DISENGAGING MECHANISM ASSY.
1 1 1419957-0003 BRAKE LEVER
2 1 1419958-0003 BRAKE LEVER 2
3 1 1419972-0003 BRAKE LEVER 1
4 1 F00114 HEXAGON NUT M8
5 2 D70106 GRUB BOLT M6 X 6
6 1 1419961-0003 CLUTCH ROD
7 2 G90091 LOCKING WASHER FOR NOMINAL DIAMETER 6 MM
8 1 5816488 BALL SEAT
9 1 5221280 HANDLE
10 2 G10502 WASHER 20 X 7.9 X 1
11 1 5006742 TENSION CLIP SMALL
12 2 1420014 PILOT SCREW
13 1 1419956 BALL JOINT
