Invacare Storm 3 - 9 Wheels; Steering Wheels; Front Wheels 3.00 - 6; Front Wheel Suspension

Service Manual
Storm³
As at: 07.03.02 Page 31
9 Wheels

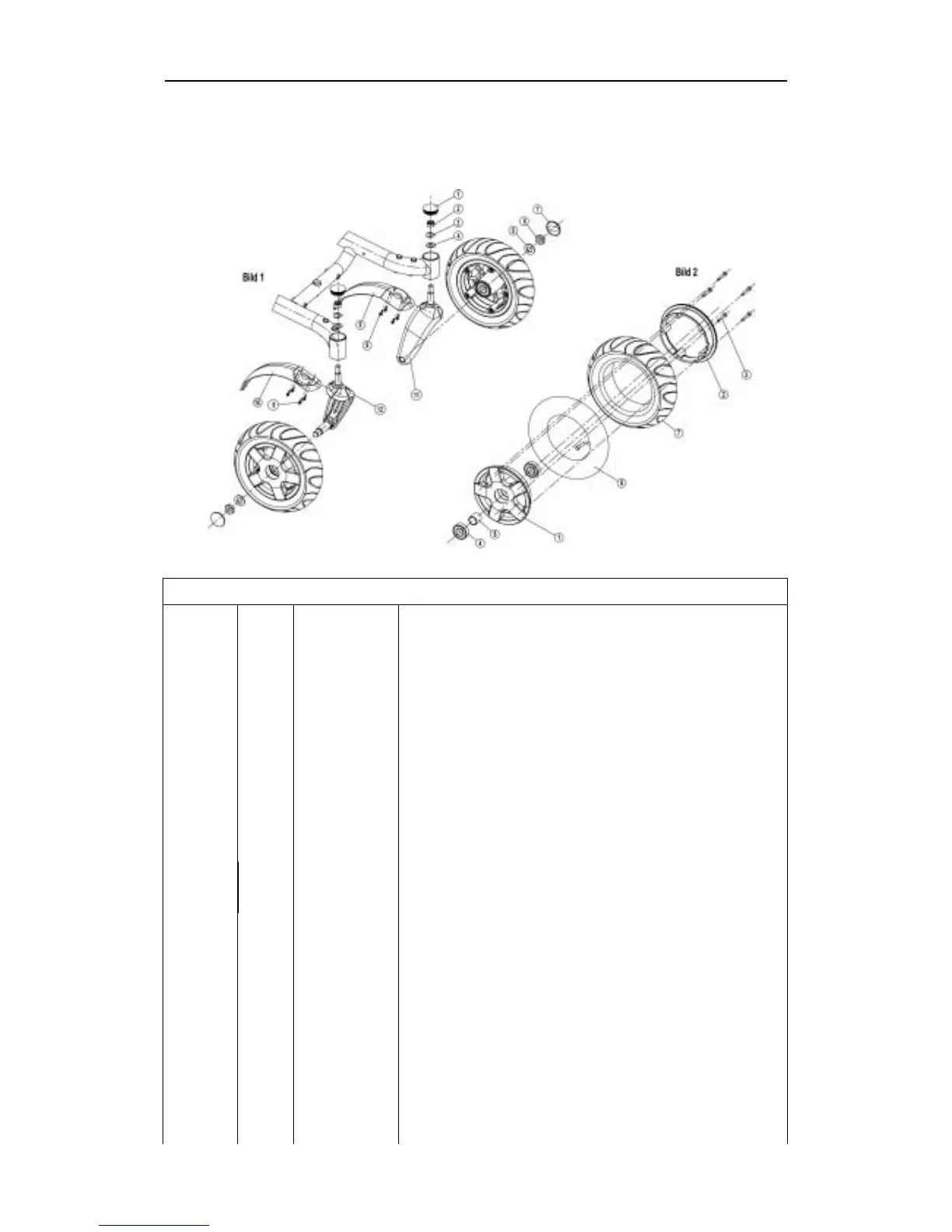

9.1 Steering wheels / front wheels 3.00 – 6 / front wheel suspension
Pos Qty. Item No./Pcs. Item Description
- 1 1422928 FRONT WHEEL SUSPENSION ASSY.
- 1 SP1423178 MOUNTING SET FRONT WHEEL FORK
1 1 1421687 SLIDER SL 42
2 1 F00108 HEXAGON NUT M12 X 1.5 SELF-LOCKING
3 1 G40102 SPRING WASHER 24 X 13 X 1.2 SHAPE A
4 1 G00104 WASHER 13 X 24 X 2.5
5 1 G00105 WASHER 17 X 30 X 3
6 1 1418054 NUT M16 X 1.5 ISO 4035
7 1 1415177 CAP WITH "INVACARE" LOGO
- 1 SP1423179 MOUNTING SET SPLASH PROTECTION LH
8 1 1419245 SPLASH PROTECTION LH
9 4 D90188 SELF-TAPPING SCREW WITH CHEESE HEAD 4.2 X 13
- 1 SP1423180 MOUNTING SET SPLASH PROTECTION RH
10 1 1419246 SPLASH PROTECTION RH
9 4 D90188 SELF-TAPPING SCREW WITH CHEESE HEAD 4.2 X 13
11 1 SP1422771 WHEEL FORK LH
12 1 SP1422772 WHEEL FORK RH
Figure 2
- 2 SP1418531 WHEEL 3.00-6" PNEUMATIC; GREY ASSY.
- 2 SP1419256 WHEEL 3.00-6" PNEUMATIC; BLACK ASSY.
- 2 SP1422932 WHEEL 3.00-6" PUNCTURE-PROOF; GREY ASSY.
