Storm³
Service Manual
Page 64 As at:07.03.02

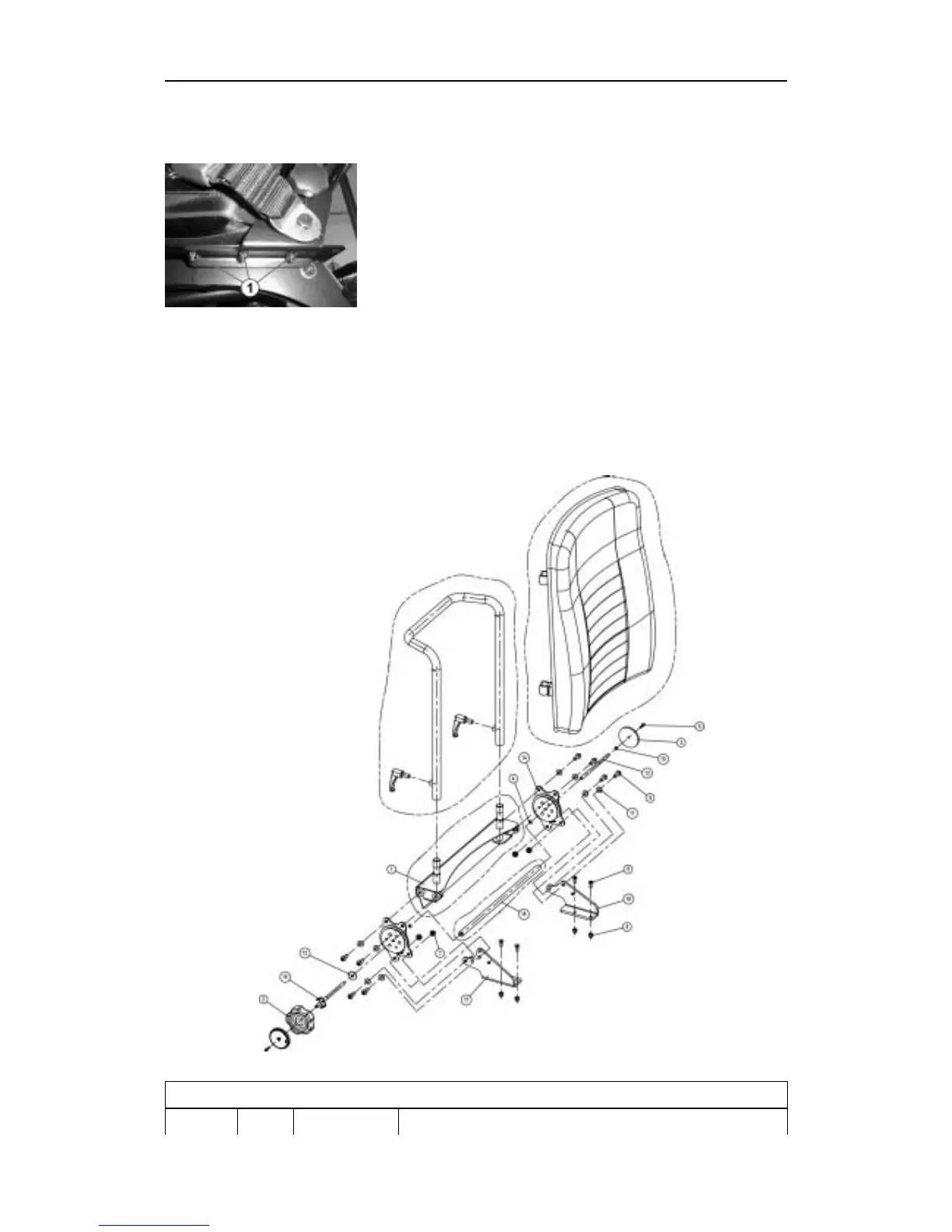

13.1.2 Replacing the backrest adjustment
• Remove backrest tube (see page 63, chapt. 13.1.1).
• Unscrew hex nut (1).
• Remove the Allen screw from above.
• Remove backrest adjustment and replace.
Reassembly takes place in the reverse order.
13.2 Contour backrest (manual)
Pos Qty. Item No./Pcs. Item Description
- 1 1422067 BACKREST ADJUSTMENT MANUAL SB 48 ASSY.
