Invacare Storm 3 - Footrest Hanger (VARI A, 80°) Manually Height-Adjustable with Angle Adjustment77

Service Manual
Storm³
As at: 07.03.02 Page 77

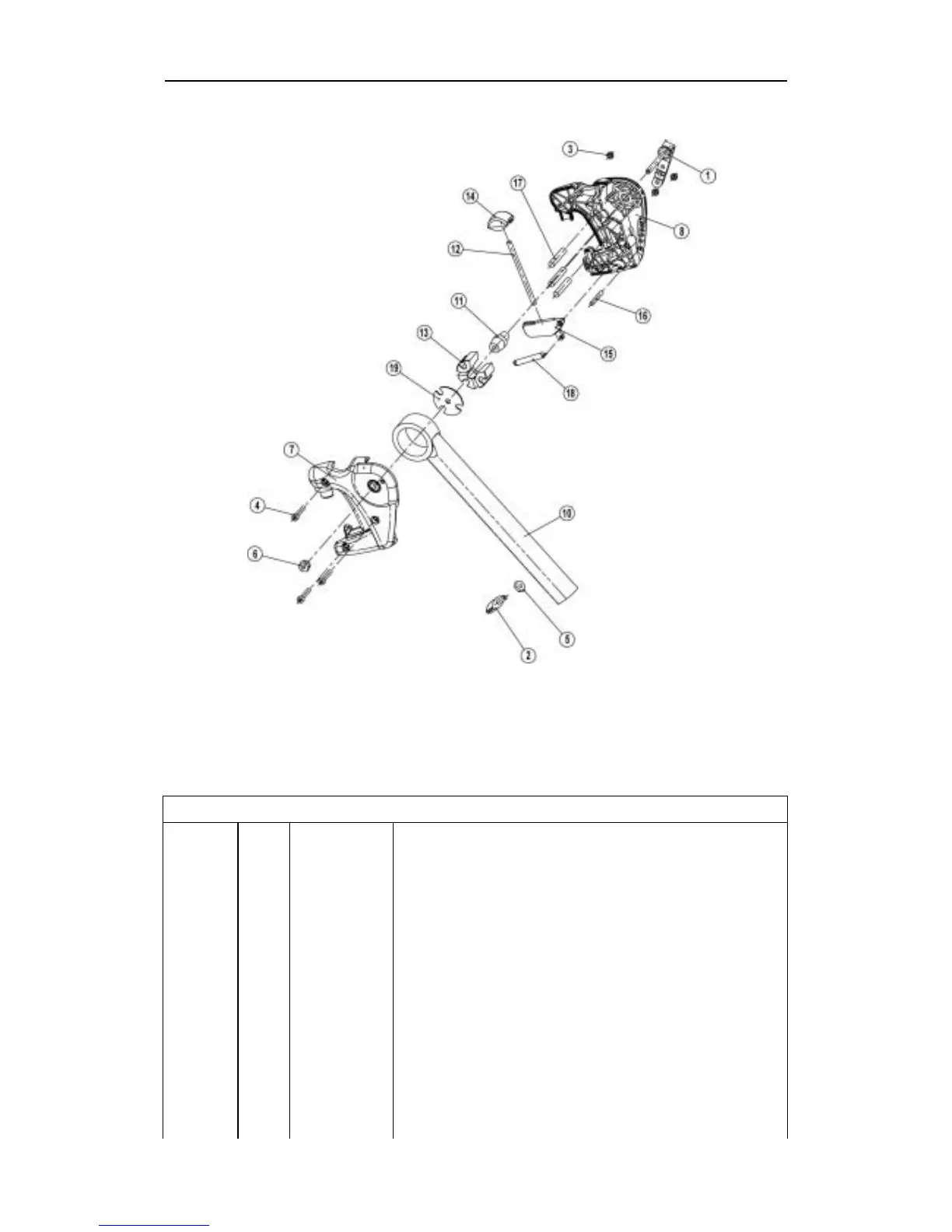

14.3 Footrest hanger (VARI A, 80°) manually height-adjustable with angle adjustment
Pos Qty. Item No./Pcs. Item Description
- 1 SP1422566 FOOTREST HANGER RH MANUAL HEIGHT-
ADJUSTABLE. ASSY.
- 1 SP1422565 FOOTREST HANGER LH MANUAL HEIGHT-
ADJUSTABLE. ASSY.
1 1 L32906 CLAMPING LEVER M6
2 1 L10024 WING NUT M6 X 16
3 3 F20111 HEXAGON NUT M5 SELF-LOCKING
4 3 D50050 MACHINE SCREW WITH ALLEN KEY HEAD M5 X 25
5 1 Z173189.99 NUT M6 SP-14
6 1 Z174131.89 NUT M6 SW-13
7 1 Z173194 LEG SUPPORT SHELL RH
8 1 Z173181 LEG SUPPORT SHELL LH
9 1 SPZ174163 CALF SUPPORT ASSY.
