Invacare Storm 3 - Replacing Batteries; Replacing the Fuse Strip

Service Manual
Storm³
As at: 07.03.02 Page 39

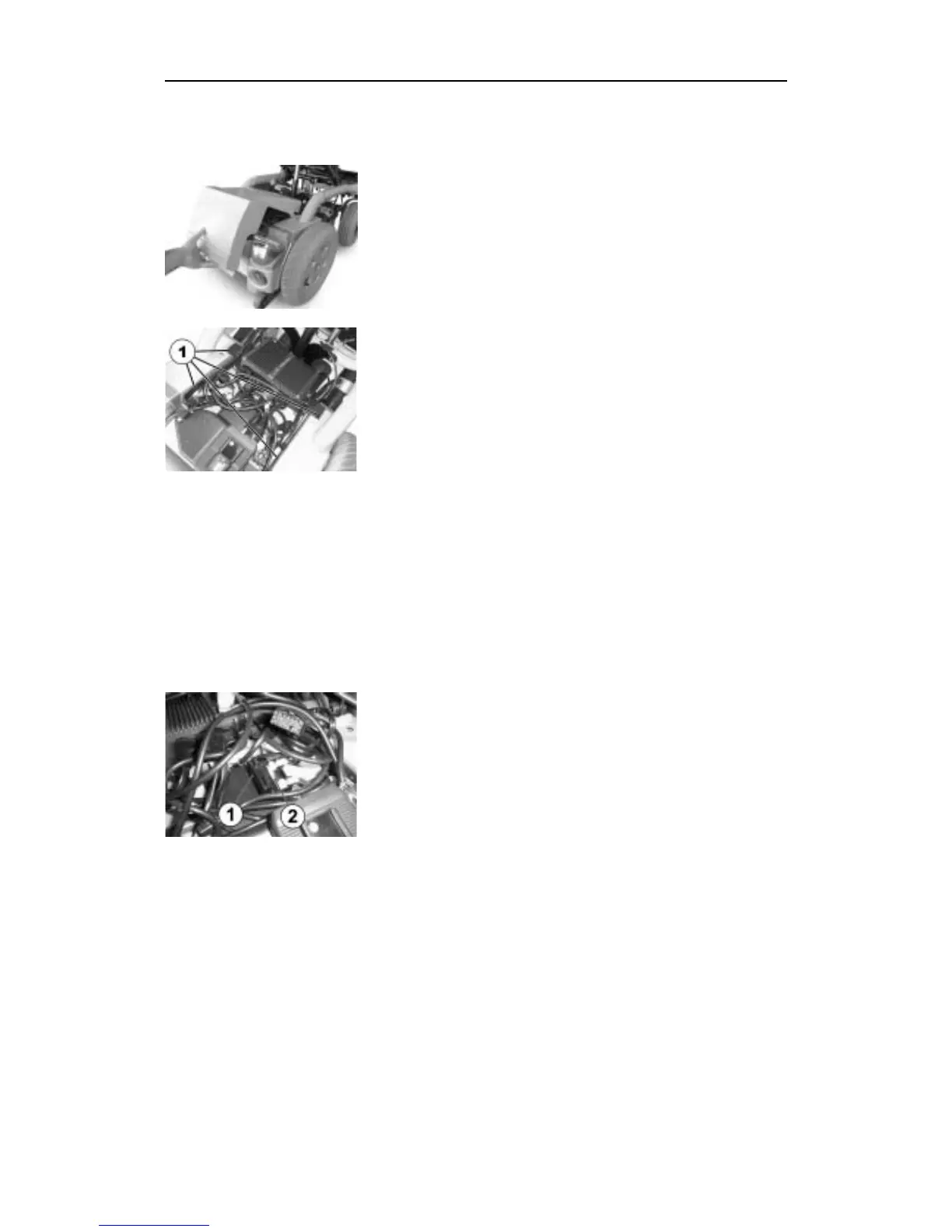

9.2.1 Replacing batteries
• Raise the lifter (see following information if electronics or
lifter motor is defective).
• Remove battery cover.
• Pull all connecting plugs out of the modules.
• Unscrew the equipment rack (1) and remove.
• Push the battery terminal caps back.
• Loosen battery terminal clamps with spanner.
• Open the battery strap.
• Tilt the rear battery forwards and remove.
• Push the lighting cabling to one side and remove the
insert.
• Remove the front battery.
• After fitting new batteries, stow the lighting cabling
between the two batteries.
9.2.2 Replacing the fuse strip
• Remove battery cover.
• Raise the lifter (see following information).
• Pull all necessary connecting plugs out of the modules in
order to access the fuse holder.
• Open the fuse strip holder (1).
• Loosen the hex nuts and replace the strip fuse (2).
Reassembly takes place in the reverse order.
Note:
If the electronics are defective, connect an external power source, or remove the
locking washers and bolts from the seat tilting mechanism and then remove the
lifter motor. The seat tilting mechanism and lifter can then be manually operated
(see page 21, chapt. 8.2.1).
"
