Storm³
Service Manual
Page 18 As at:07.03.02
# vari 90° - 65° (VARI F)
# footrest hanger manually height-adjustable (VARI A)
# footrest hanger with manual height adjustment (ADM)
# footrest hanger with electrical height adjustment (ADE)
# fixed footplates
# angle-adjustable footplates
# angle and depth-adjustable footplates
# footplate
• Kerb climber (chapt. 16.1)
• Cane holder (chapt. 16.2)
Service and repair work

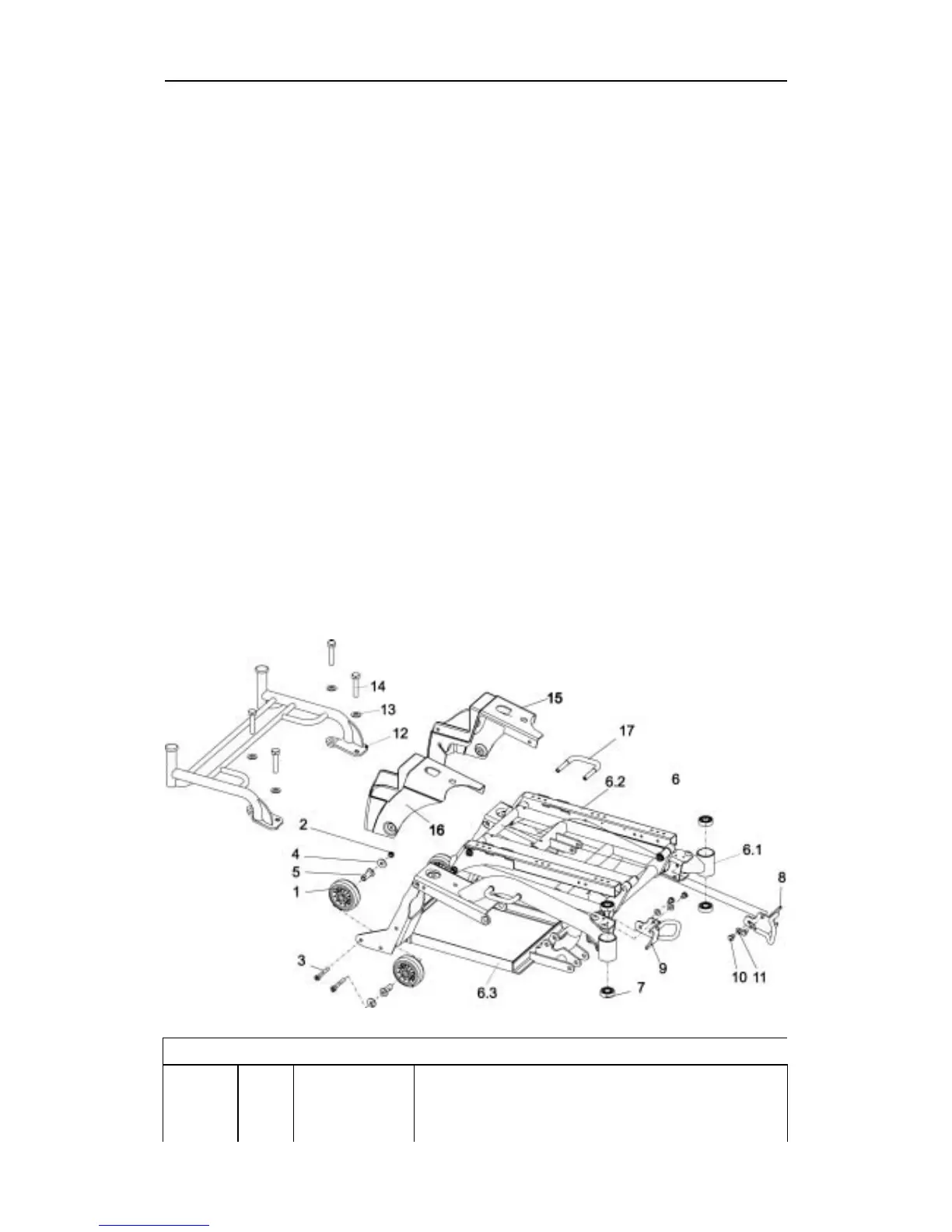

8 Running gear
8.1 Frame (chassis)
POS QTY. ITEM NO./PCS. ITEM DESCRIPTION
1 4 1418533 ANTI-TIP WHEEL KAMA 80 X 30
2 4 F00002 HEXAGON NUT M8 SELF-LOCKING
3 4 D50170 MACHINE SCREW WITH ALLEN KEY HEAD M8 X 50
