Invacare Storm 3 - 8.5.1 Replacing wheel lock; Bowden cable

Service Manual
Storm³
As at: 07.03.02 Page 29

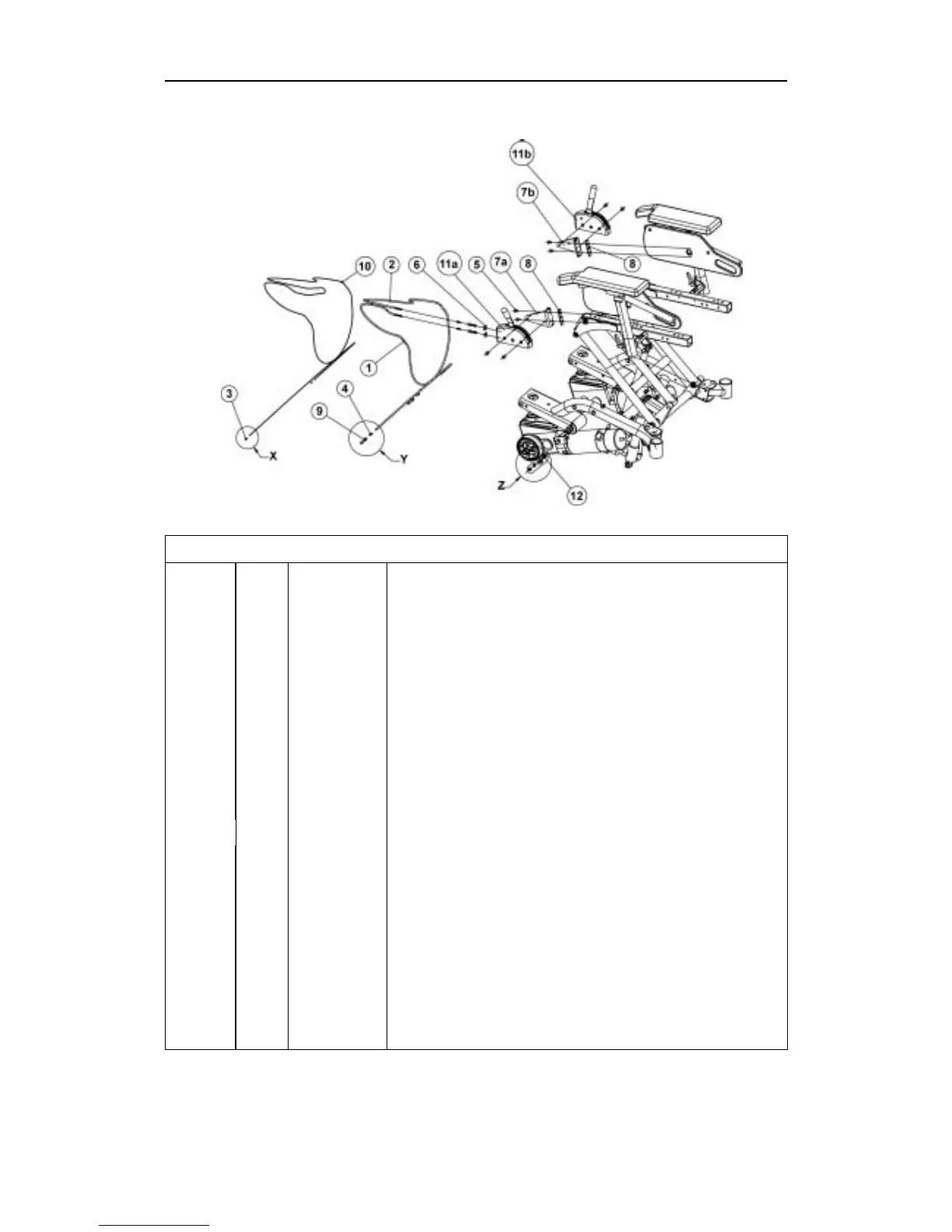

8.5 Wheel lock
Pos Qty. Item No./Pcs. Item Description
- 1 1422850 WHEEL LOCK RH ASSY.
- 1 1422851 WHEEL LOCK LH ASSY.
- 1 SP1423473 BOWDEN CABLE SET ASSY.
1 1 M30973 BOWDEN CABLE SHEATH L=1130 MM
2 1 M30974 BOWDEN CABLE SHEATH L=1470 MM
3 2 L01995 END CAP FOR BOWDEN CABLE INNER
4 4 M30047 END CAP FOR BOWDEN CABLE SHEATH
10 1 M30972 BOWDEN CABLE INNER L=3200 MM
12 2 M30055 CABLE CLAMP BOLT 6 MM
5 4 5723905 BOLT M6 X 12
6 2 G00107 WASHER 6.4 X 18 X 1.6
7 a 1
1422894-
9005 BRAKE BOX HOLDER RH
7 b 1
1422895-
9005 BRAKE BOX HOLDER LH
8 1
1421720-
0002 GROOVED SHEET
9 4 M30050 REGULATING BOLT M6 X 24
11 a 1 SPF331038 BRAKE RH PREASSEMBLED
11 b 1 SPF331028 BRAKE LH PREASSEMBLED
