Invacare Storm 3 - Page 59

Storm³
Service Manual
Page 58 As at:07.03.02

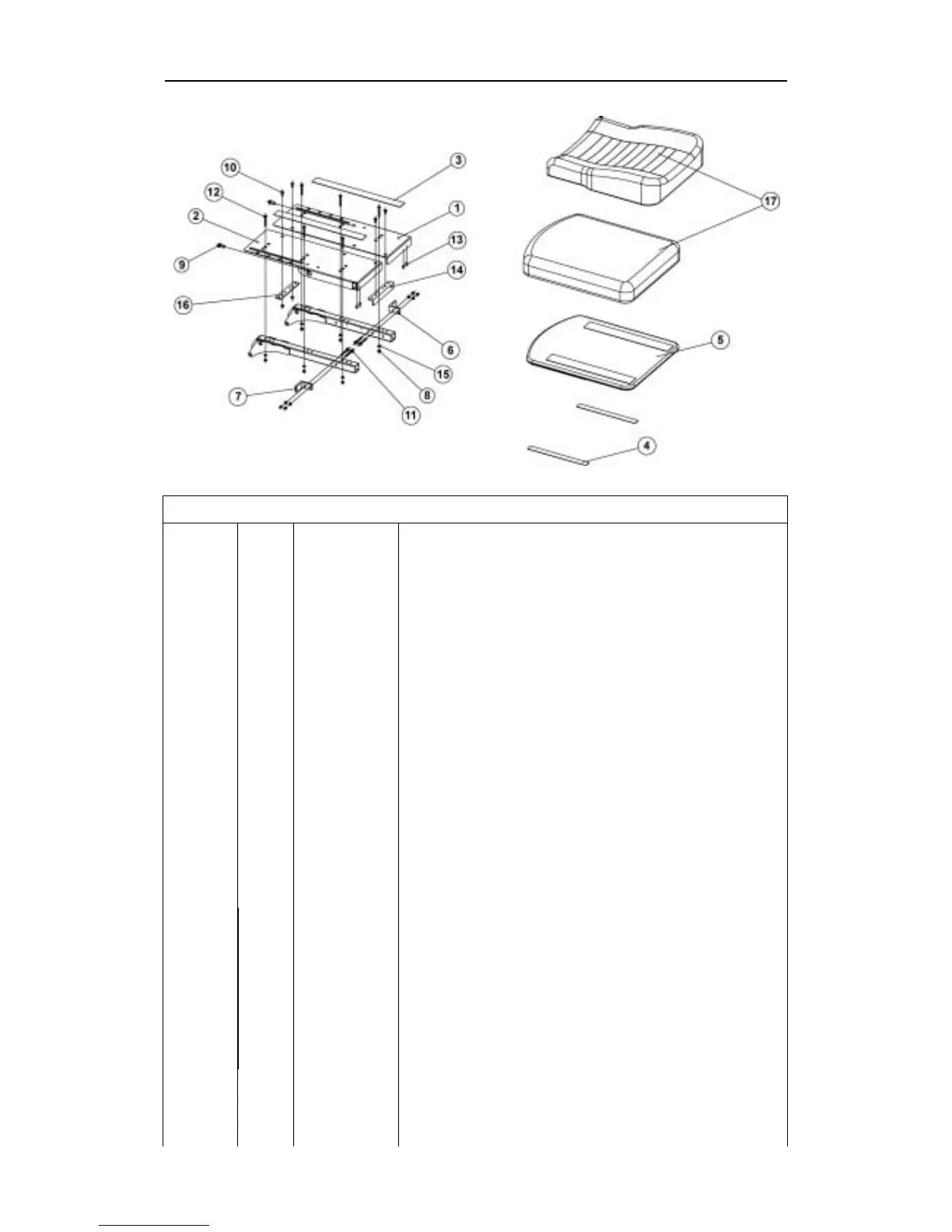

Pos Qty. Item No./Pcs. Item Description
- 1 1422064 SEAT SPLIT SB 43 ASSY.
- 1 1422065 SEAT SPLIT SB 48 ASSY.
1 1 1420458-9005 SEAT PLATE LH ASSY.
2 1 1420457-9005 SEAT PLATE RH ASSY.
3 2 U21087 HOOKED BELT CUT 38 X 400 MM
4 2 5816479 DURALOCK SJ 3552
5 1 5314532 SEAT PLATE 410 X 520 MM
5 1 5314533 SEAT PLATE 460 X 520 MM
6 1 1421701-9005 SUPPORT BRACKET LH, SB 43
7 1 1421700-9005 SUPPORT BRACKET RH, SB 43
6 1 1421705-9005 SUPPORT BRACKET LH, SB 48
7 1 1421706-9005 SUPPORT BRACKET LH, SB 48
- 1 SP1423206 MOUNTING SET SEAT (SPLIT)
8 12 F20109 HEXAGON NUT M6 SELF-LOCKING
9 2 5824273 BOLT M10 X 20
10 4 D60111 COUNTERSUNK SCREW WITH ALLEN KEY HEAD M6 X
16
11 4 5824263 BOLT M6 X 50
12 6 D60096 COUNTERSUNK SCREW WITH ALLEN KEY HEAD M6 X
45 10.9
13 4 D70187 GRUB SCREW WITH ALLEN KEY & CUP POINT M8 X 10
14 1 1421699-9005 ANGLE BRACE***CHECK PIC
15 10 G00115 WASHER 6.4 X 12.5 X 1.6
16 1 1420496-9005 SUPPORT PLATE
17 1 1422071 SEAT CUSHION CONTOUR SB 43 GREY
