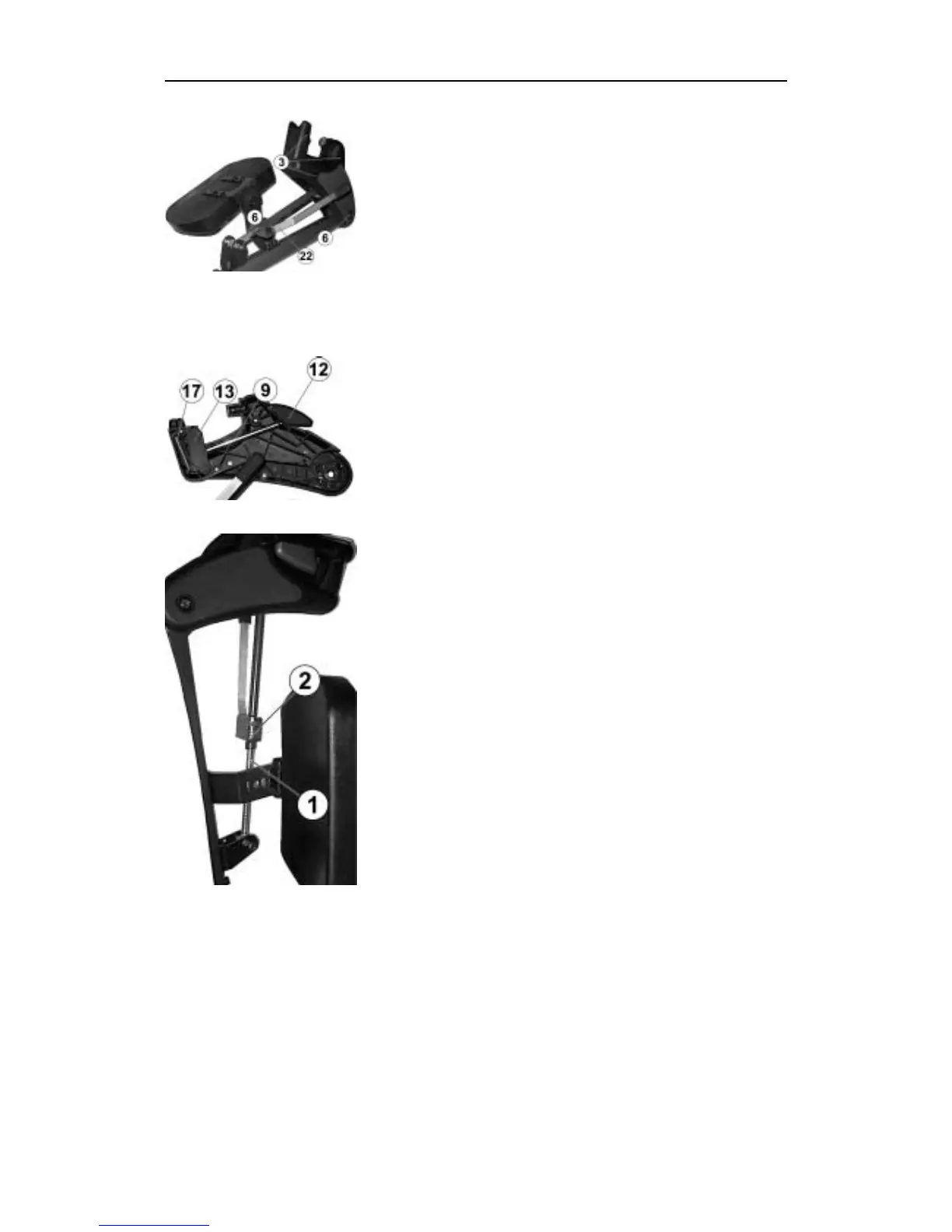

• Unscrew cylinder head screw (6).
• Unscrew cylinder-head screw (6) and hex nut (2).
• Unscrew cylinder-head screw (3) and hex nut (2).
• Remove hanger shell (11).
• Remove ADM adjustment (22).
• Replace the plunger rod (9), release button (12), locking
lever (13) or tension spring (17).
• Replace footrest hanger shells (10. 11) if necessary.
• Pull the plunger rod (1) out downwards.
• While doing this, ensure that the pressure spring (2) is not
lost.
• The individual parts can now be replaced.
Reassembly takes place in the reverse order.
