2.2 iPECS UCP Network Connection
Figure 2.2-1 below is a diagram of the various modules and terminals available for integration into
an iPECS UCP controlled network.

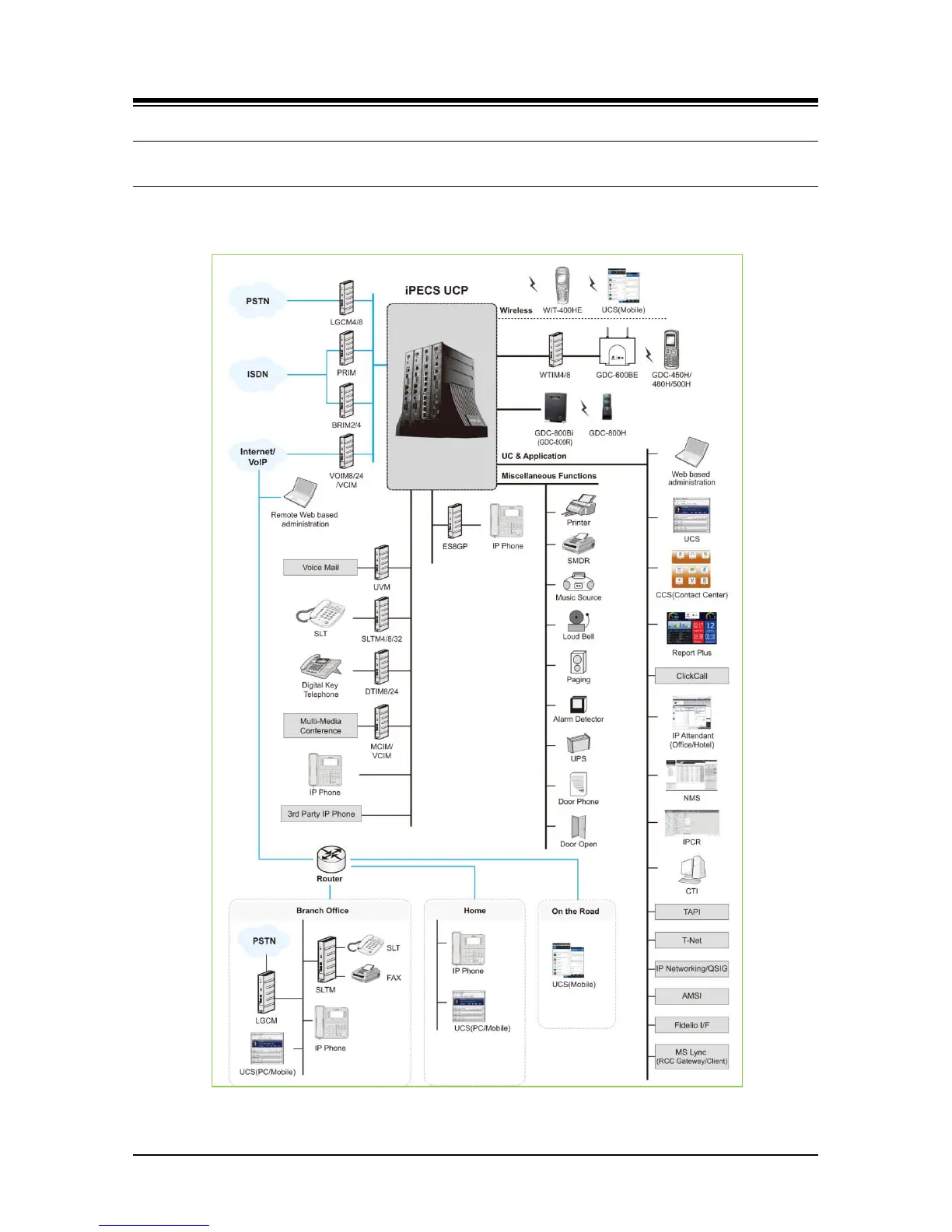

Figure 2.2-1 iPECS UCP Network diagram
