Hardware Description and Installation Manual Issue 1.3
43
Model
Description
LIP-8012E
12 Flexible Button w/Display
LIP-8024E
24 Flexible Button w/Display
LIP-8040E
10 Flexible Button w/Large Display
LIP-8050V
5 Flexible Button, w/Color Display & Video Camera
LIP-8050E
4.3 inch wide color Graphic screen, 5 button,
LIP-9002
4-flexible buttons w/Display
LIP-9010
3-line 320 by 48 dot graphic LCD and 5 flexible buttons.
LIP-9020
4-line 320 by 80 dot graphic LCD, 10 flexible buttons and 3 soft keys.
LIP-9030
6-line 320 by 112 dot graphic LCD, 8 flexible buttons and 3 soft keys.
LIP-9040 8-line 320 by 144 dot graphic LCD, 12 flexible buttons and 3 soft keys.
LIP-9012DSS
12 flexible buttons with tri-color LED
LIP-9024DSS
24 flexible buttons with tri-color LED
LIP-9024LSS
12 flexible buttons with tri-color LED/ two flexible button pages to represent 24
total flexible buttons
LIP-9048DSS 48 flexible buttons with tri-color LED
LIP-9070
Premium Touch Screen IP Phone, 7 Inch TFT color LCD,
Android OS, WVGA resolution, Video communications,
Soft flexible buttons(48 for SIP/ 30 for iPECS protocol)
LIP-9071
Premium Touch Screen IP Phone, 7 Inch TFT color LCD,
Android OS, WVGA resolution, Video communications,
Soft flexible buttons(48 for SIP/ 30 for iPECS protocol)
WIT-400HE
iPECS WLAN Phone
GDC-
450H/480H/500H/800H
Business DECT, Full color LCD

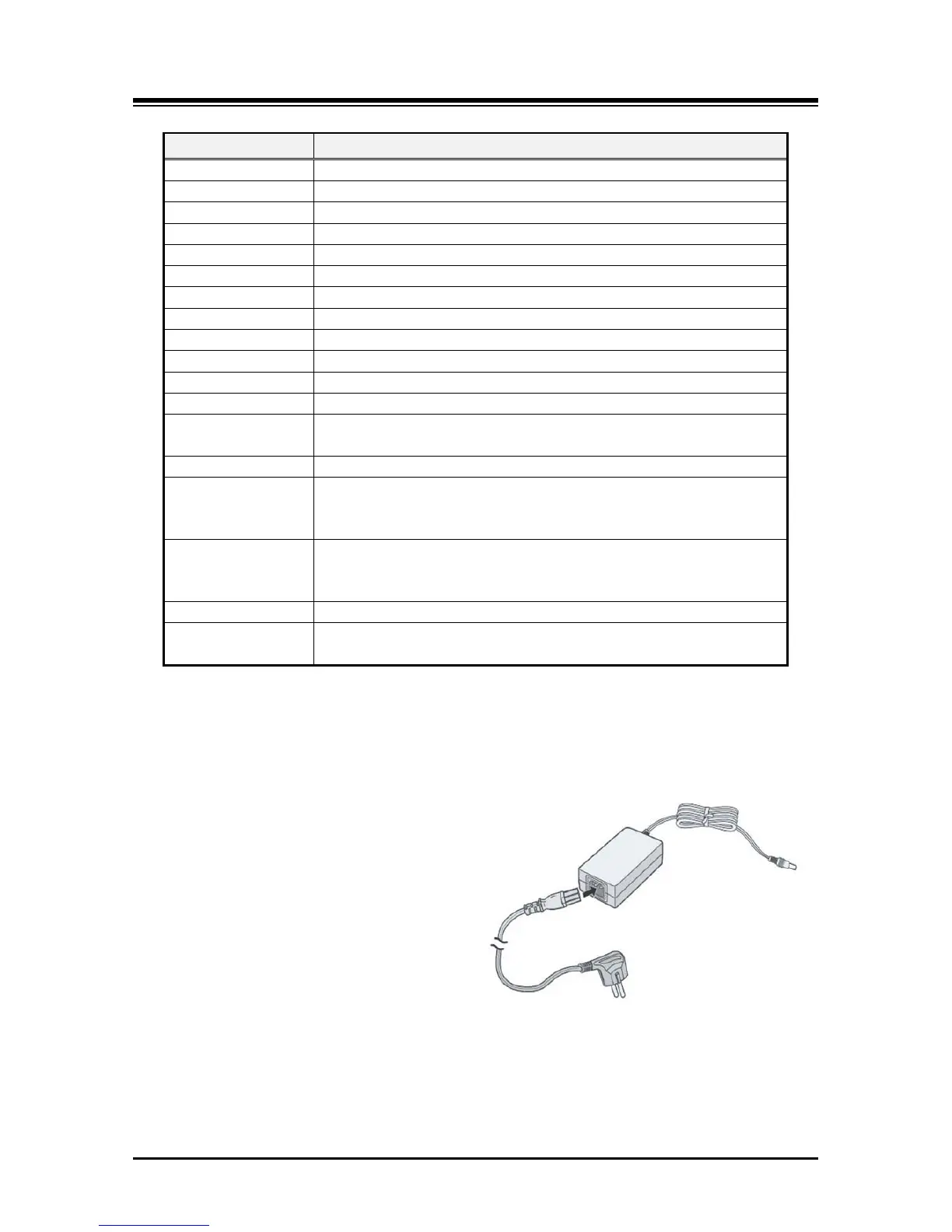

3.3.1 AC/DC Adapter –K- for LIP-Phones & Console
When LIP-8000/8000E/9000 series terminals, including the Consoles, are to be powered from
local AC (not provided power over the LAN), a
separate AC/DC adapter must be used for
power. The adapter is supplied with a two (2)
meter, six (6) foot, AC cord terminated with the
nationally relevant AC blade type. The adapter
supports AC input power systems with rated
voltage range of 100-240 VAC @ 50/60 Hz. The
adapter provides 48 VDC at 0.3 amps. The DC
output connector is cabled to the adapter with a
two (2) meter, six (6) foot, cable.
Figure 3.3.1-1 AC/DC Adapter –K
