iPECS UCP
Hardware Description and Installation Manual Issue 1.3
72

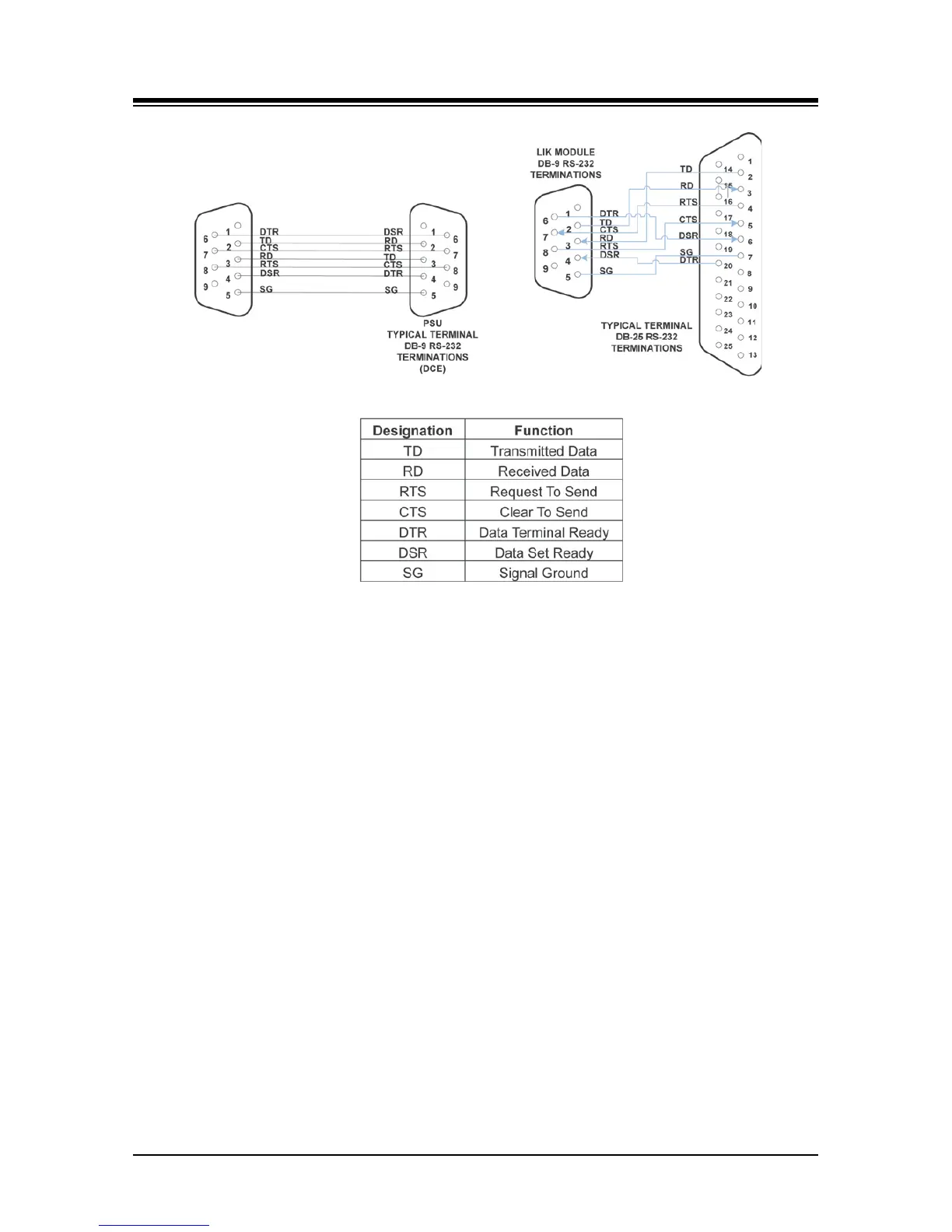

Figure 6.1.8-1 RS-232 DB-9 Pin-outs
6.1.9 Module Power Adapter
Modules are shipped without AC/DC Adapters. Therefore, if an adapter is required, it must be
ordered separately. The AC/DC Adapter converts local AC to 48 VDC for Module power. One
side of the adapter has a 3-prong parallel blade male termination and mates with the power cord
supplied. The AC power cord supplied is plugged into the adapter and into the local AC power
source. See 5.4 for installing the module in a DHLD, 5.5 for WHLD or 5.6 for 1U-RMB.
The other end of the adapter is terminated in a DC power cord with a plug at the end. This DC
power plug is inserted into the power input jack on the upper front panel area of each Module.
Prior to making this power connection, assure the Module is properly grounded referring to
section 6.1.4. The Power LED on the Module front panel will illuminate when power is applied.
UCP Module
DB-9 RS-232
TERMINATIONS
(DTE)
